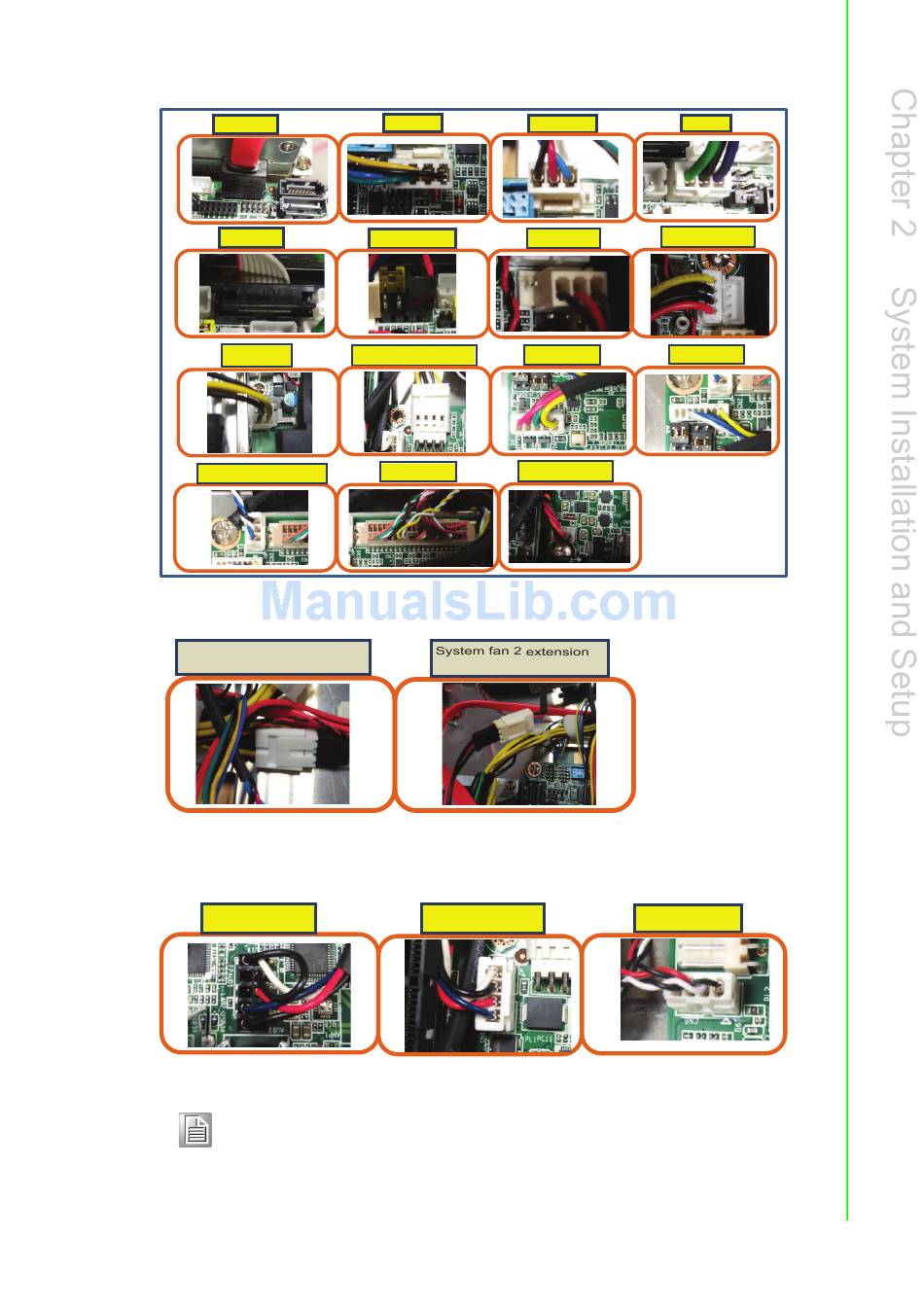

1. HDD cable
5. COM2
9. 12V Power
13. Panel light adjust cable
1.
Connect the daughter board power cable and FAN2 cable
Daughter board power cable
connected to the AC power cable
2.
Connect the speaker cables as shown below.
Audio cable for
main board
Note!
Please refer to the PPC-6151C/6171C/6191C selection guide when
selecting the motherboard type in order to ensure optimum perfor-
mance, maximum security, and sufficient air circulation.
The cable connection is based on the motherboard specifications.
2. CPU FAN
6. Powerbutton
10. Daughter board power
11. Touch cable
15. Front panel LED
14. LVDS cable
cable connected
Audio cable for
daughter board
25
PPC-6151C/6171C/6191C User Manual
4. PS_ON
3. SYS FAN1
8. HDD Power cable
7. SYS FAN2
12. Backlight
Speaker cable
