Connect the Daughter Board and Motherboard Using a Cable

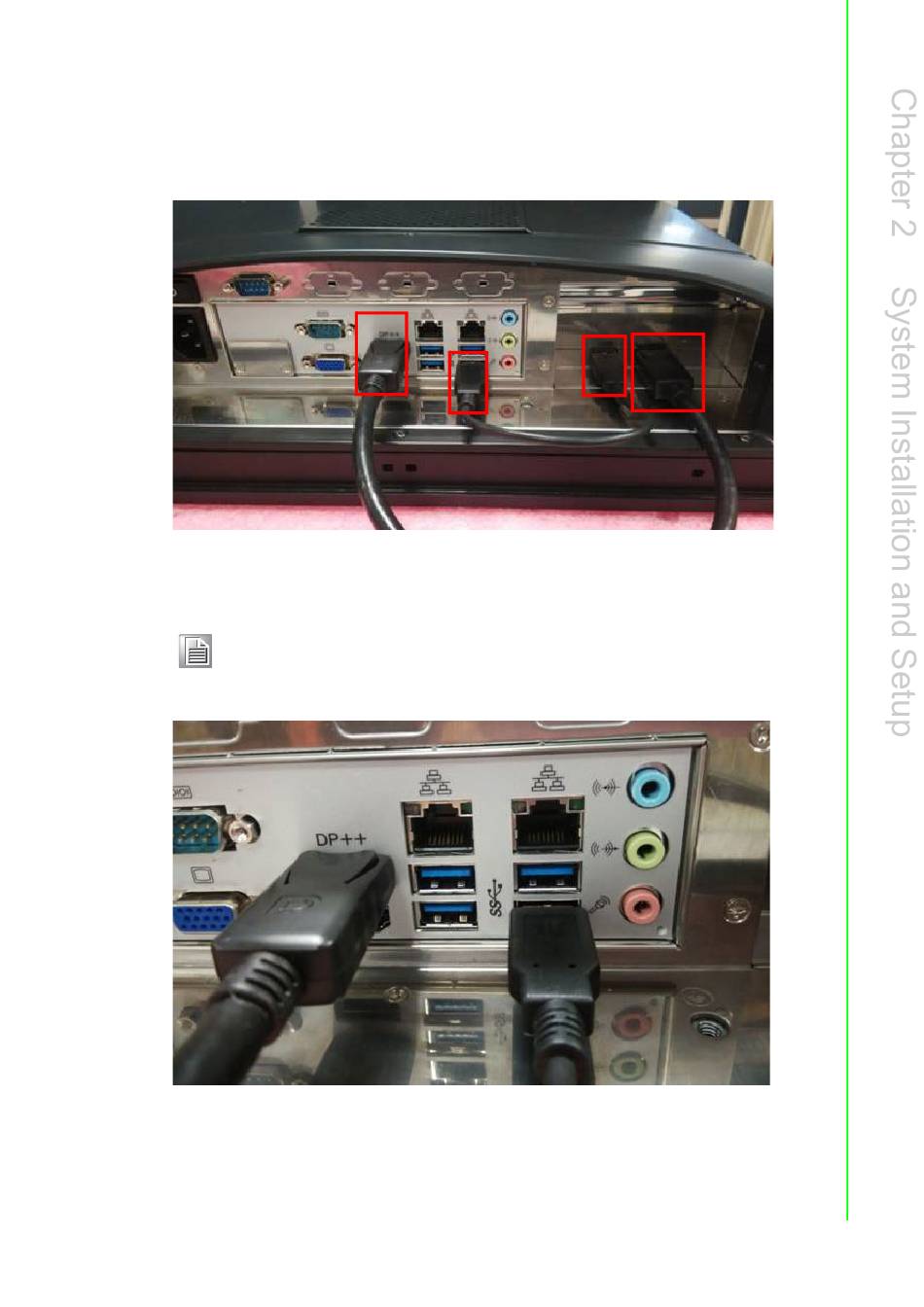

Connect the DP Input port with the motherboard DP port to enable the display.

Connect the USB Input port with a motherboard USB port to enable touch func-

tion. (Cables are included in the accessory box.)

Connect the motherboard.

Note!

Use a DP cable to connect the motherboard DP port and the chassis DP

Input port. Use USB cable to connect one of the motherboard USB

ports. The motherboards must have a DP port.

USB

PPC-6151C/6171C User Manual
