Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Connectors

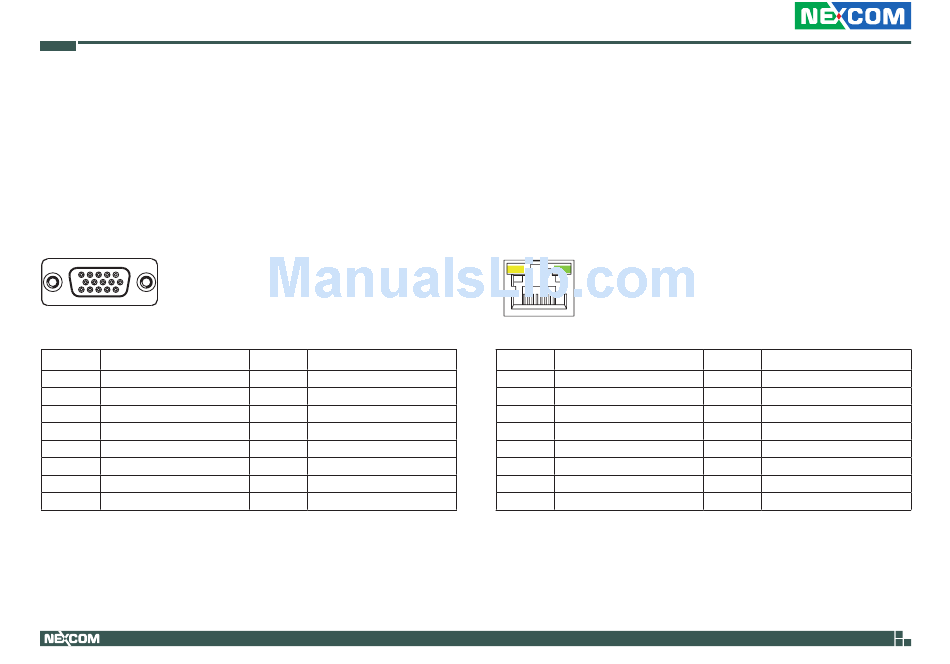

VGA Port

Connector type: DB-15 port, 15-pin D-Sub
Connector location: VGA1
5 1
15 11
Pin Definition
1 RED_VGA
3 BLUE_VGA
5 GND
7 GND
9 VGA_+5V
11 NC
13 HSYNC_VGA
15 DDC_CLK_VGA
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GREEN_VGA
4 NC
6 GND
8 GND
10 GND
12 DDC_DATA_VGA
14 VSYNC_VGA
MH1 CHASIS_GND

LAN1 Port

Connector type: RJ45 port with LEDs
Connector location: LAN1
ACT LINK
8 1
Pin Definition
1 LAN2_MDI0P
3 LAN2_MDI1P
5 AVDD12_PHY2
7 LAN2_MDI2P
9 LAN2_MDI3P
11 LAN2_LINK1G#
13 LAN2_LED_ACT#
MH1 CHASIS_GND
9
Pin Definition
2 LAN2_MDI0N
4 LAN2_MDI1N
6 LAN2TCTG
8 LAN2_MDI2N
10 LAN2_MDI3N
12 LAN2_LINK100#
14 V_3P3_LAN
MH2 CHASIS_GND
