Chapter 2: Jumpers and Connectors

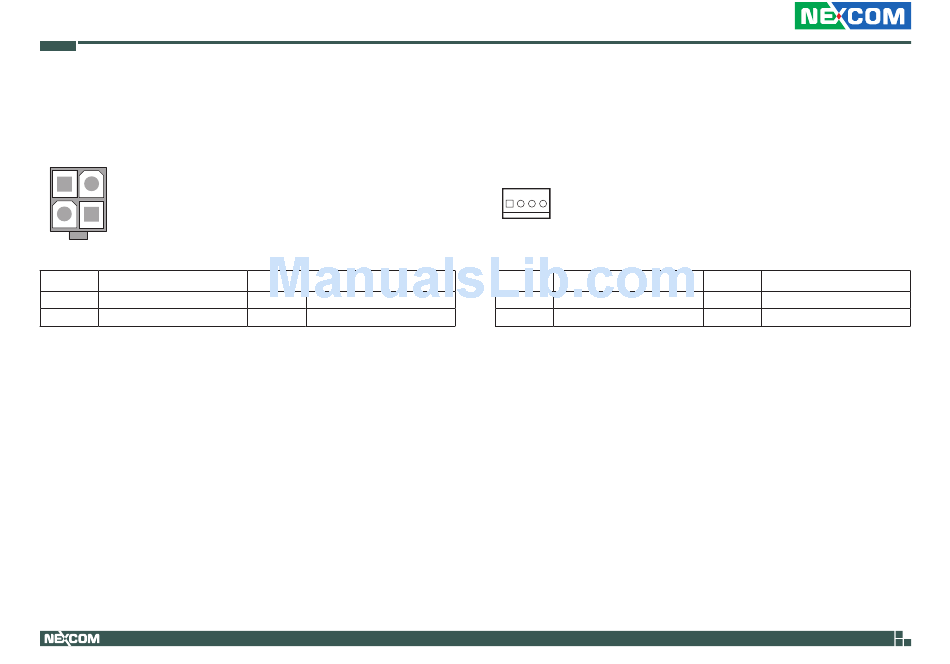

+12V Power Connector
Connector type: 2x2 4-pin header, 4.2mm pitch
Connector location: CON1
1
2
3
4
Pin
Definition
1
GND
3
+12V
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
+12V
CPU FAN Connector
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: FAN1
1
4
Pin
Definition
1
GND
3
FAN TAC
12
Pin
Definition
2
+12V
4
FAN CTL
PEAK 887VL2 User Manual
