Chapter 2: Jumpers and Connectors

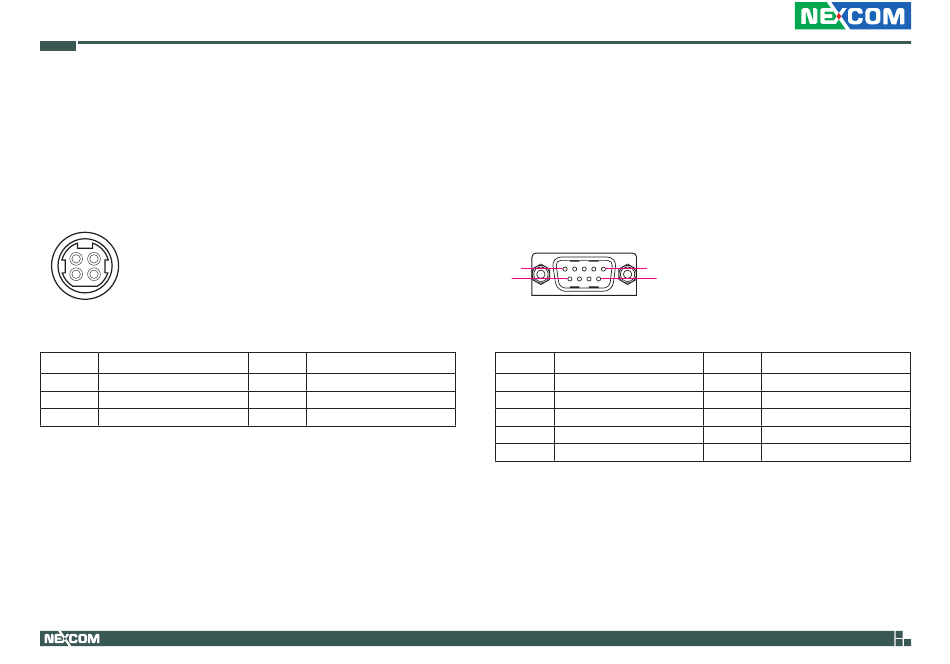

Connector Pin Definitions

External Connectors

Power Input Connector

Connector location: JDC1
1 2
3 4
Pin Definition
1 VCC
3 GND
5 CGND
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VCC
4 GND

COM Port

Connector type: DB-9 port, 9-pin D-Sub
Connector location: JCON1A
16
21
Pin Definition
16 COM_DCD#2
18 COM_TXD2
20 GND
22 COM_RTS#2
24 COM_RI#2_con
11
20
24
Pin Definition
17 COM_RXD#2
19 COM_DTR#2
21 COM_DSR#2
23 COM_CTS#2
