Chapter 2: Jumpers and Connectors

Connector Pin Definitions

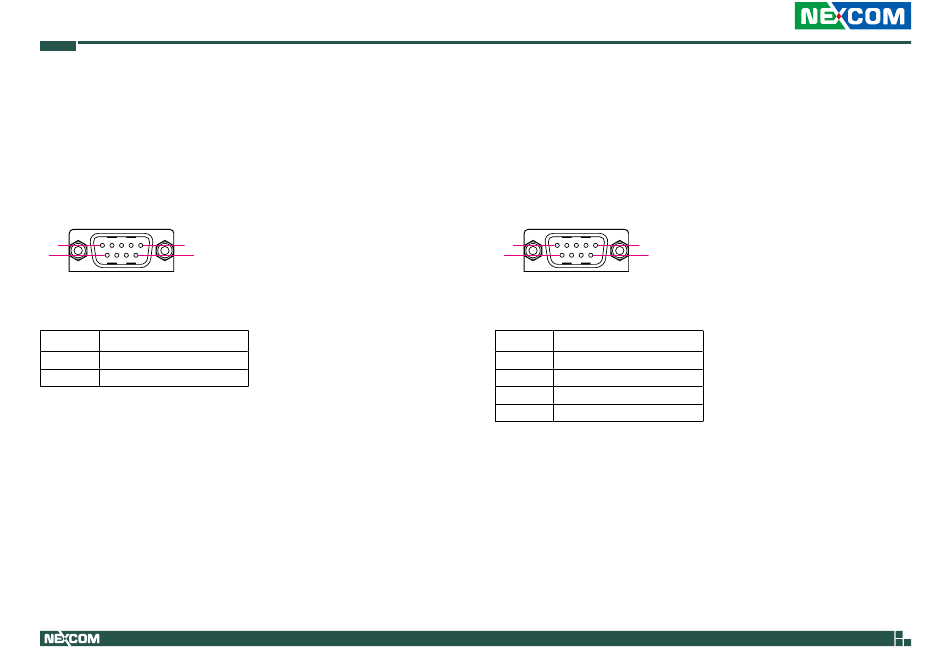

COM1 RS485 Mode

Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM1
1 5
6 9
Pin Definition
1 RS485 D- (B)
2 RS485 D+ (A)
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.

COM1 RS422 Mode

Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM1
1 5
6
Pin Definition
1 RS422 TX(B)
2 RS422 TX(A)
3 RS422 RX(A)
4 RS422 RX(B)
12
9
