Connector Pin Definitions

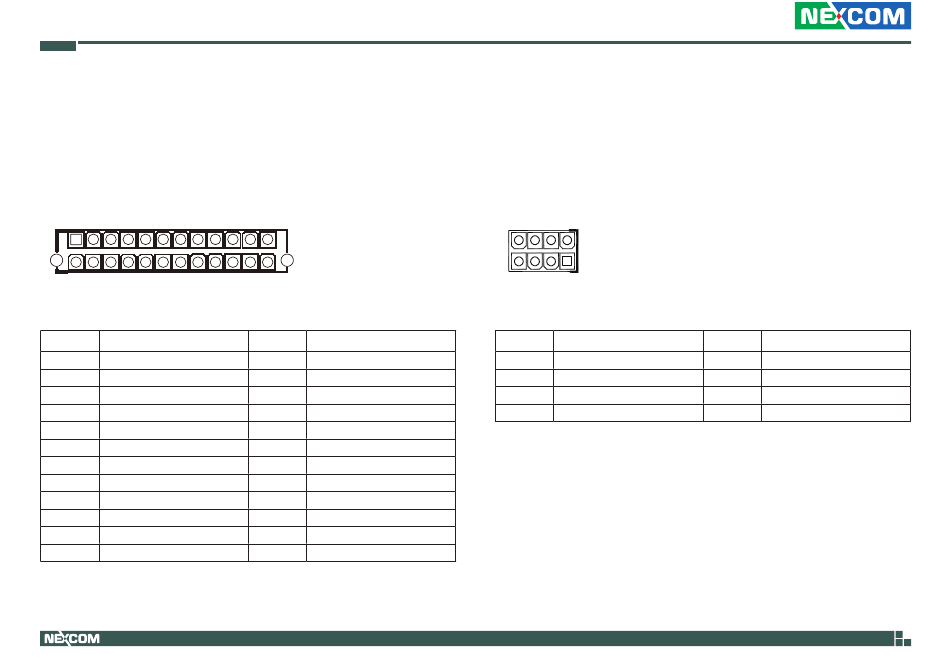

24-pin ATX Power Connector

Connector type: 2x12 24-pin boxed header
Connector location: EATXPWR
1
1
13 2
Pin Definition
1 +3 Volts
3 +3 Volts
5 GND
7 +5 Volts
9 GND
11 +5 Volts
13 GND
15 Power OK
17 +5V Standby
19 +12 Volts
21 +12 Volts
23 +3 Volts
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
23
12
24 24
Pin Definition
2 +3 Volts
4 -12 Volts
6 GND
8 PSON#
10 GND
12 GND
14 GND
16 -5 Volts
18 +5 Volts
20 +5 Volts
22 +5 Volts
24 GND
8-pin ATX Power Connector
Connector type: 2x4 8-pin boxed header
Connector location: EATX12V
8 5
4 1
Pin Definition
1 GND
3 GND
5 GND
7 GND
10
Pin Definition
2 +12V DC
4 +12V DC
6 +12V DC
8 +12V DC
