Chapter 2: Jumpers and Connectors

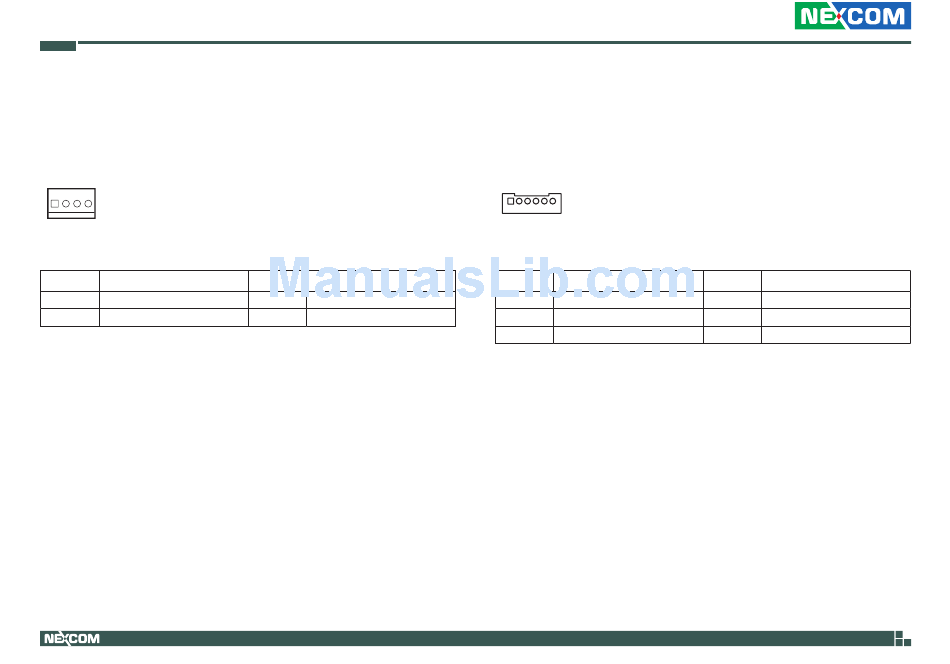

System FAN Connector

Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: FAN2
1 4
Pin Definition
1 GND
3 FAN TAC
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 +12V
4 FAN CTL

Keyboard and Mouse Connector

Connector type: 1x6 6-pin header, 2.0mm pitch
Connector location: J5
1 6
Pin Definition
1 K/M_VCC
3 LKBCLK
5 LMCLK
13
Pin Definition
2 LKBDAT
4 LMDAT
6 GND_BLK
