Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Connectors

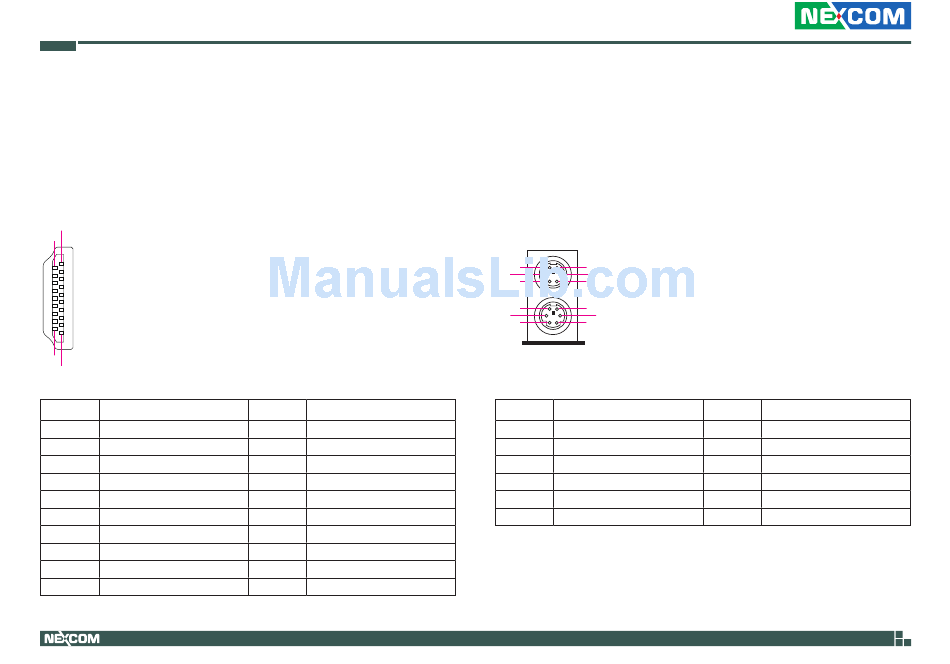

HDMI Port

Connector type: HDMI port
Connector location: HDMI1
19
18
2
1
Pin Definition
1 HDMI_DATA2_P_C
3 HDMI_DATA2_N_C
5 GND
7 HDMI_DATA0_P_C
9 HDMI_DATA0_N_C
11 GND
13 NC
15 HDMI_CTRL_CLK_C
17 GND
19 HDMI_HPD_C
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 HDMI_DATA1_P_C
6 HDMI_DATA1_N_C
8 GND
10 HDMI_CLK_P_C
12 HDMI_CLK_N_C
14 NC
16 HDMI_CTRL_DATA_C
18 +5V_HDMI

PS/2 Keyboard and Mouse

Connector type: PS/2, Mini-DIN-6
Connector location: KM1
Mouse
12 11
10 9
8 7
6 5
4
3
2 1
Keyboard
Pin Definition
1 KDAT_C
3 GND
5 KCLK_C
7 MDAT_C
9 GND
11 MCLK_C
14
Pin Definition
2 NC
4 +5V_PS2
6 NC
8 NC
10 +5V_PS2
12 NC
