Chapter 3: BIOS Setup

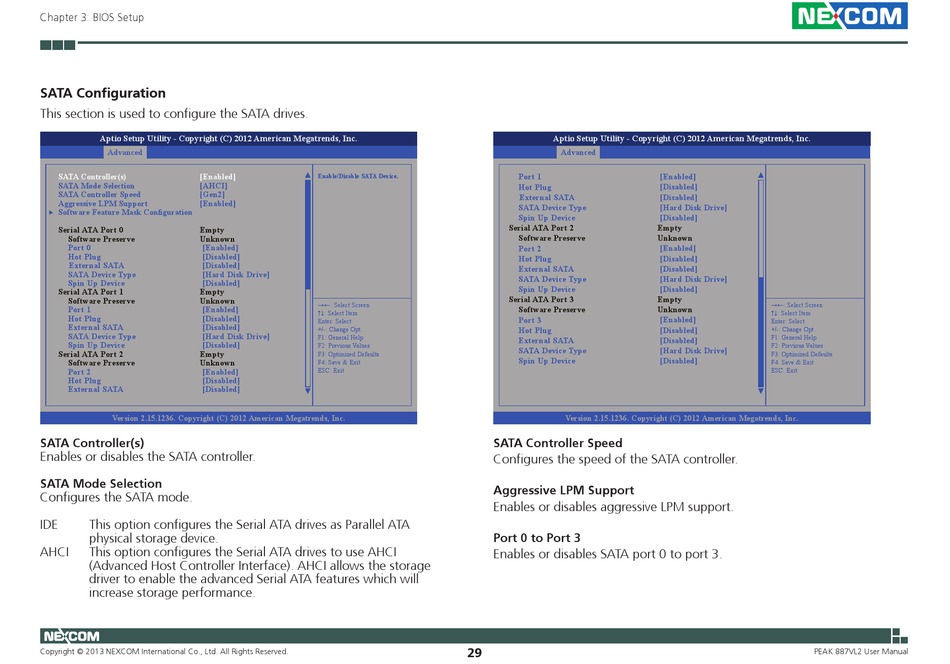

SATA Configuration

This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
SATA Controller(s) [Enabled]
SATA Mode Selection [AHCI]
SATA Controller Speed [Gen2]
Aggressive LPM Support [Enabled]
Software Feature Mask Configuration

Serial ATA Port 0 Empty
Software Preserve Unknown
Port 0 [Enabled]
Hot Plug [Disabled]
External SATA [Disabled]
SATA Device Type [Hard Disk Drive]
Spin Up Device [Disabled]
Serial ATA Port 1 Empty
Software Preserve Unknown
Port 1 [Enabled]
Hot Plug [Disabled]
External SATA [Disabled]
SATA Device Type [Hard Disk Drive]
Spin Up Device [Disabled]
Serial ATA Port 2 Empty
Software Preserve Unknown
Port 2 [Enabled]
Hot Plug [Disabled]
External SATA [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
SATA Controller(s)
Enables or disables the SATA controller.
SATA Mode Selection
Configures the SATA mode.
IDE This option configures the Serial ATA drives as Parallel ATA
physical storage device.
AHCI This option configures the Serial ATA drives to use AHCI
(Advanced Host Controller Interface). AHCI allows the storage
driver to enable the advanced Serial ATA features which will
increase storage performance.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
▲
Enable/Disable SATA Device.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
▼
29
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
[Enabled]
Port 1
Hot Plug [Disabled]
External SATA [Disabled]
SATA Device Type [Hard Disk Drive]
Spin Up Device [Disabled]
Serial ATA Port 2 Empty
Software Preserve Unknown
Port 2 [Enabled]
Hot Plug [Disabled]
External SATA [Disabled]
SATA Device Type [Hard Disk Drive]
Spin Up Device [Disabled]
Serial ATA Port 3 Empty
Software Preserve Unknown
Port 3 [Enabled]
Hot Plug [Disabled]
External SATA [Disabled]
SATA Device Type [Hard Disk Drive]
Spin Up Device [Disabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
SATA Controller Speed
Configures the speed of the SATA controller.
Aggressive LPM Support
Enables or disables aggressive LPM support.
Port 0 to Port 3
Enables or disables SATA port 0 to port 3.
▲
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
▼
