Chapter 2: Jumpers and Connectors

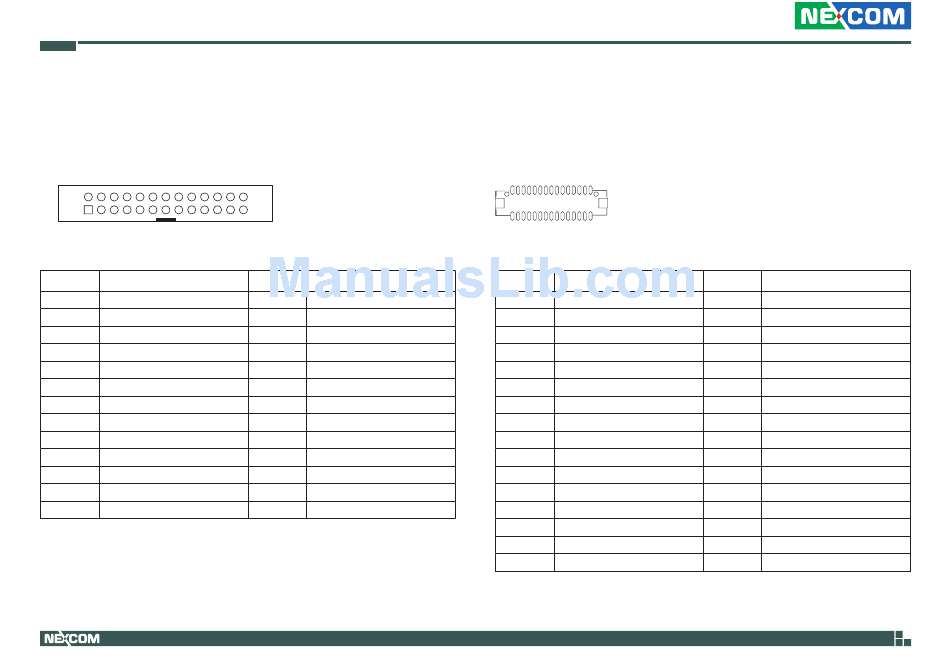

Printer Port

Connector type: 2x13 26-pin header, 2.0mm pitch
Connector location: CN3
14
1
Pin Definition
1 RPSTB
3 RPSTB1
5 RPSTB3
7 RPSTB5
9 RPSTB7
11 S1_LPTBUSY
13 S1_LPTSLCT
15 S1_LPTERR#
17 S1_LPTSLIN#
19 GND_P1
21 GND_P1
23 GND_P1
25 GND_P1
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
26
13
Pin Definition
2 RPSTB0
4 RPSTB2
6 RPSTB4
8 RPSTB6
10 S1_LPTACK#
12 S1_LPTPE
14 S1_LPTAFD#
16 S1_LPTINIT#
18 GND_P1
20 GND_P1
22 GND_P1
24 GND_P1
26 NC

DVI/ HDMI Port Connector

Connector type: 2x15 30-pin header, 1.25mm pitch
Connector location: CN13
1 29
2 30
Pin Definition
1 DPB_L0_P_R
3 DPB_L0_N_R
5 GND
7 DPB_L1_P_R
9 DPB_L1_N_R
11 GND
13 DPB_L2_P_R
15 DPB_L2_N_R
17 GND
19 DPB_L3_P_R
21 DPB_L3_N_R
23 GND
25 NC
27 NC
29 GND
MH1 GND
16
Pin Definition
2 HDMIB_PWR_R
4 HDMIB_PWR_R
6 DPB_PWR_R
8 DPB_PWR_R
10 HDMI_DIS
12 HDMI_CTRL_CLK
14 GND
16 HDMI_CTRL_DATA
18 GND
20 GND
22 GND
24 HDMI_HPD
26 GND
28 DP_HPD
30 GND
MH2 GND
