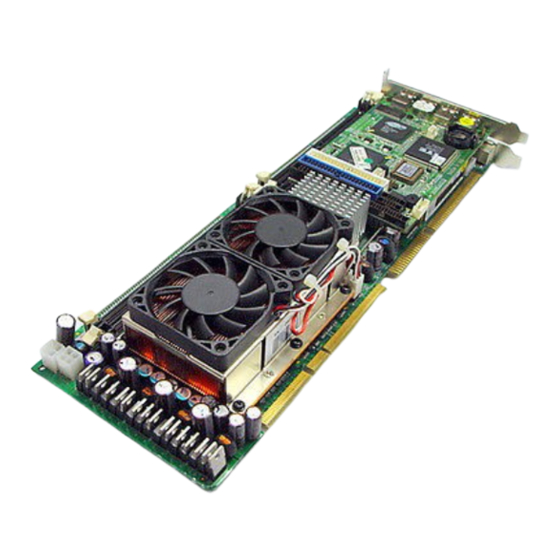

Nexcom PEAK 7220VL2G User Manual

Single board computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.nexcom.com
Single Board Computer
User Manual
2003-08 Edition

Advertisement

Table of Contents
loading

Related Manuals for Nexcom PEAK 7220VL2G

Summary of Contents for Nexcom PEAK 7220VL2G

  • Page 1 Single Board Computer User Manual 2003-08 Edition...

  • Page 2: Regulatory Compliance Statements

    NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties which may result from such use.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 General Information.......... 1.1 Features..................5 1.2 Specifications................5 1.3 Board Layout................8 1.4 Checklist & Mechanical Drawing............9 Chapter 2 Jumper Setting............10 2.1 Functions of Jumpers..............12 2.2 Setting Jumpers................13 2.3 Location of Jumpers..............14 2.4 Jumping Setting...............15 Chapter 3 Expansion Capabilities..........20 3.1 System Memory.................21 3.2 Installing DIMM.................22...
  • Page 4 Chapter 5 Driver Installation ..........50 5.1 Installing VGA Driver.............51 5.2 Installing INF...............53 5.3 Installing LAN...............55 5.4 Installing USB..............57 Appendix: Watchdog Timer Setting..........58 Appendix: GPIO User Guide.............62...

  • Page 5: Chapter 1 General Information

    Chapter 1 General Information Chapter 1 General Information...

  • Page 6: Features

    Features ® Support socket 604 dual Intel Xeon™ / LV Xeon™ processors with 400/533MHz FSB up to 3.06GHz Max. 8GB DDR SDRAM support, DDR DIMM ® . Intel E7501 chipsets ® . Intel P64H2 x 1 . ATI Rage™ XL VGA controller w/8MB frame buffer memory ®...
  • Page 7 Watchdog Timer . Watchdog timeout can be programmable by Software from 1,2,4,8,16,32,…...256 seconds . Reserved 32 bit PCI interface for NEXCOM EBK module . PCI to ISA Bridge & ISAMAX Support . ITE 8888F x 1 PCI to ISA Bridge .
  • Page 8 Power Requirements Voltage Maximum +12V Environments . Operating temperatures: 0°C to 60°C (0°C to 50°C for 2.8GHz CPU) . Storage temperatures: -20°C to 80°C . Relative humidity: 10% to 90% (Non-condensing) Certification . CE . FCC...

  • Page 9: Board Layout

    1.3 Board Layout Max.8GB DDR 266/Dual channel memory in 4 DIMM Slots VGA Port Dual LAN ® Intel E7501 Chipset ® Intel P64H2 64bit PCI-X Bridge Intel 82545EM Xeon TM /LV Xeon TM Gigabit Ethernet ® Dual Intel w/533MHz FSB Speed to 3.06GHz+ ®...

  • Page 10: Checklist & Mechanical Drawing

    1.4 Checklist After opening the package of the PEAK7220VL2G, please check and make sure you have all of the following items: One PEAK7220VL2G SBC (A mechanical drawing of this model is shown below.) One PEAK7220VL2G Quick Reference Guide One 50CM Cable JST 2.5mm 3 pin to 3 pin (5V standby ATX Power-on Cable) One Y Cable for Keyboard and Mouse One 180 mm AUX Power Cable (for J2)

  • Page 11: Chapter 2 Jumper Setting

    Chapter 2 Jumper & Switch Settings...

  • Page 12: Before You Begin

    This chapter of the User’s Manual describes how to set jumpers. Note: The procedures that follow are generic for all of the PEAK735 models Before You Begin Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction.

  • Page 13: Functions Of Jumpers

    2.1 Functions of Jumpers You can use jumpers to set configuration options. The table below defines function of each jumper: Jumper Function Jumper Function J1,J2 Power Connector Speaker J4,J5 Fan Connector GPIO J5 on Daughter ATX Power On-board RTC Board AC’97 SMBUS IDE Active LED...

  • Page 14: Setting Jumpers

    2.2 Setting Jumpers A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumpr is OPEN.

  • Page 15: Location Of Jumpers

    2.3 Location of Jumpers The illustration below shows the location of the mainboard jumpers: Channel A DIMM 1 Channel B DIMM 2 Channel B DIMM 4 Primary Secondary CPU Socket CPU Socket SIO1 SIO2 = Pin 1 USB Connectors PS/2 KB/Mouse VGA Connector LAN Connectors Figure 2-2 : Location of Jumpers...

  • Page 16: Jumping Setting

    2.4 Jumper Setting Mainboard...
  • Page 17 Daughterboard...
  • Page 18 (daughterboard)

  • Page 21: Chapter 3 Expansion Capabilities

    Chapter 3 Expansion Capabilities...

  • Page 22: System Memory

    DIMM1, DIMM2. The table below shows possible DIMM configurations for the memory banks. Please be noted that the PEAK 7220VL2G supports 8 GB DDR SDRAM. Configura- tions using different brands of memory modules are not recommended. DIMM1...

  • Page 23: Installing Dimm

    3.2 Installing DIMM To install DIMM: 1. Make sure the two handles of the DIMM sockets are in the “open” position, i.e. the handles stay outward. Figure 3-1 : How to Install DIMM (1) 2. Slowly slide the DIMM modules along the plastic guides in the both ends of the socket.
  • Page 24 3. Then press the DIMM module down right into the socket, until a click is heard. That means the two handles automatically locked the memory modules into the right position of the DIMM socket. Figure 3-3 : How to Install DIMM (3) 4.

  • Page 25: Changing Cpu

    3.3 Changing CPU To change the CPU: 1. Pull the handling bar of the socket upward to the other end to loosen the socket’s openings. Carefully lift the existing CPU up to remove it from the socket. 2. Place the new CPU on the middle of the socket, orienting its beveled corner to line up with the socket’s beveled corner.

  • Page 26: Installing Fan Heatsink

    3.4 Installing the Fan Heatsink Step 1 Insert the fan in the CPU bed. Step 2 As shown in the picture, screw tight. Step 3 Then get the fan connector connected.

  • Page 27: Chapter 4 Award Bios Setup

    Chapter 4 Award BIOS Setup...

  • Page 28: About The Bios

    BIOS modification in the future. User can download any major updated items from NEXCOM web site http://www.nexcom.com.tw. If any unclear message occurs, please contact NEXCOM customer service representative for help or log onto http:// www.nexcom.com.tw/contact/contact.htm. About the BIOS...

  • Page 29: Entering Setup

    4.1 Entering Setup When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways: If the error occurs before the display device is initialized, a series of beeps will be transmitted.
  • Page 30 Standard CMOS Features Use this menu for basic system configuration Advanced BIOS Features Use this menu to set the Advanced Features available on the system Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize the system’s performance Integrated Peripherals Use this menu to specify your settings for integrated peripherals...

  • Page 31: Getting Help

    Save & Exit Setup Saves CMOS value changes to CMOS and exits setup. Exit Without Saving Ignores all CMOS value changes and exits setup. 4.3 Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the bot- tom of the screen.

  • Page 32: Control Keys

    4.4 Control Keys The table below lists the keys that help you navigate the setup program. Up arrow M ove to previous item Dow n arrow M ove to next item M ove to the item to the left Left arrow M ove to the item to the right Right arrow Main Menu: Quit without saving changes to CM OS...

  • Page 33: Standard Cmos Features

    4.5 Standard CMOS Features Selecting Standard CMOS Features on the main program screen displays the following menu: Figure 4-3 : BIOS -- Standard CMOS Features The Standard CMOS Setup utility is used to configure the following features: Date (mm:dd:yy) The BIOS determines the day of the week from the other data information. This field is for information only.
  • Page 34 Figure 4-4 : BIOS -- IDE Channel Slave IDD HDD Auto-Detection If you want the Setup Utility to automatically detect and configure a hard disk drive on the IDE channel, press <Enter> while this item is highlighted. If your system has an IDE hard drive, you can use this utility to detect its param- eters and enter them into the Standard CMOS Setup automatically.
  • Page 35 Refer to your drive’s documentation or look on the drive if you need to obtain this information. If no device is installed, change the value to None. Access Mode This item defines some special ways that can be used to access IDE hard disks such as LBA (Logical Block Addressing).
  • Page 36 Halt On This setting determines which type of errors will cause the system to halt during booting. The options are: All Errors Whenever the BIOS detects a non-fatal error, the system will be stopped and you will be prompted. No Errors The system boot will not be stopped for any error that may be detected.

  • Page 37: Advanced Bios Features

    4.6 Advanced BIOS Features Selecting Advanced BIOS Features on the main program screen displays this menu, which allows you to define advanced information about your system. You can make modifications to most of these items without causing fatal errors to your system.
  • Page 38 Note: This function is available only for DOS and other operating systems that do not trap INT13. For complete protection against viruses, install virus software in your operating system and update the virus definitions regularly. Many disk diagnostic programs that access the boot sector table can trigger the virus warning message. If you plan to run such a program, we recommend that you disable the virus warning.
  • Page 39 Boot Up Floppy Seek Enable this to allow the system to search for floppy drives during the POST. Disable this item to boot faster. Boot Up NumLock Status Toggle between On or Off to control the state of the NumLock key when the system boots.
  • Page 40 MPS Version Control for OS This feature is only applicable to multiprocessor motherboards as it specifies the version of the Multi-processor Specification (MPS) that the motherboard will use. The MPS is a specification by which PC manufacturers design and build Intel architec- ture systems with two or more processors.

  • Page 41: Advanced Chipset Features

    4.7 Advanced Chipset Features Figure 4-5 : BIOS- Advanced Chipset Features System BIOS Cacheable Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The available choices are Enabled, Disabled.

  • Page 42: Integrated Peripherals

    Delayed Transaction The chipset has an embedded 32-bit posted write buffer to support delay transaction cycles. Select Enabled to support compliance with PCI specification version 2.1 4.8 Integrated Peripherals Figure 4-6 : BIOS- Integrated Peripherals On-Chip IDE Device The system chipset contains IDE HDD Block mode, and a PCI IDE interface with support for two IDE Primary (Master &...
  • Page 43 USB Keyboard Support Select Enabled if your USB controller is enabled and it needs USB keyboard support in legacy (old) OS operating systems such as DOS. AC97 Audio Selecting Auto will enable the AC97 audio if it is detected onboard. Onboard LAN Boot ROM Decides whether to invoke the boot ROM of the onboard LAN chip.

  • Page 44: Power Management Setup

    Parallel Port Mode The choices available include SPP, EPP, ECP and ECP+EPP. ECP Mode Use DMA When the on-board parallel port is set to ECP mode, the parallel port can use DMA 3 or DMA 1. After you have made your selections in the Integrated Peripherals setup, press the <ESC>...
  • Page 45 Power Supply Type The choices: AT, ATX. ACPI Function The ACPI standard (Advanced Configuration and Power Interface) allows the operat- ing system to directly check the functions of energy saving and the PnP (Plug and Play) functionality. The ACPI functions are normally activated by the BIOS. The choices are: Enabled and Disabled.
  • Page 46 Soft-Off by PWRBTN (Power Button) Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state when the system “hangs”. The available choices are Delay 4 Seconds, Instant-Off Wake up on LAN 1 When the system enters a Soft-off mode (Standby power exists but system is not working), it will wake up system when specific signals occurred.

  • Page 47: Pnp/Pci Configurations

    4.10 PnP/PCI Configurations Figure 4-8 : BIOS -- PnP/PCI Configurations Reset Configuration Data Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on Card and the system reconfiguration has caused such a serious conflict that the operating system cannot boot.

  • Page 48: Pc Health Status

    PCI Latency Timer (CLK) This item controls how long each PCI device can hold the bus before another takes over. 4.11 PC Health Status Figure 4-9 : BIOS- PC Health Status After you have read the PC Health Status, press the <ESC> key to go back to the main program screen.

  • Page 49: Load Fail-Safe Defaults

    4.12 Load Fail-Safe Defaults This option opens a dialog box that lets you install fail-safe defaults for all appropri- ate items in the whole setup utility. Use this option if you have changed your system and it does not operate correctly or does not power up.

  • Page 50: Save & Exit Setup

    4.15 Save & Exit Setup Selecting this option and pressing <Enter> will save the new setting information in the CMOS memory and continue with the booting process. 4.16 Exit Without Saving Selecting this option and pressing <Enter> will exit the Setup Utility without recording any new values or changing old ones.

  • Page 51: Chapter 5 Driver Installation

    Chapter 5 Driver Installation...

  • Page 52: Installing Vga Driver

    The PEAK7220 series comes with a driver installation CD-ROM that enables you to install VGA driver software, Intel chipset software, and LAN. 5.1 Installing VGA Driver Step 5.1.1 Double click the folder of VGA. The menu will display. Select the folder of J5.30.0_CD09_ RXL_N-WDM for Windows 2000 operating system.
  • Page 53 Step 5.1.4 To install ATI software, you must accept this agreement. Click YES to continue Setup. Step 5.1.5 Please select the component you want to install and then click NEXT. Step 5.1.6 An installation wizard will inform successful completion of driver software installation and ask you to restart your computer.

  • Page 54: Installing Inf

    5.2 Installing Intel Chipset Software Step 5.2.1 Open the folder of Intel Chipset Software Step 5.2.2 Double click the blue icon infinst_autol Step 5.2.3 Click Next to install INF.
  • Page 55 Step 5.2.4 Click Yes to continue. Step 5.2.5 Click NEXT. Step 5.2.6 Select Yes, I want to restart my computer now. Then click Finish. INF is installed.

  • Page 56: Installing Lan

    5.3 Installing LAN Step 5.3.1 After the folder of LAN driver displays, click it. Step 5.3.2 Double click the Autorun Icon Step 5.3.3 Click Install Base Driver.
  • Page 57 Step 5.3.4 Click OK to continue Step 5.3.5 Click NEXT to continue. Step 5.3.6 Click NEXT after accepting the license agreement.

  • Page 58: Installing Usb

    5.4 Installing USB After installing the LAN driver, go back to computer desktop and open My Computer. Step 5.4.1 Choose the setup type that best suits your needs and then click NEXT. Step 5.4.2 Click INSTALL to begin installation. Step 5.4.3 Click FINISH to exit after the installation.

  • Page 59: Appendix: Watchdog Timer Setting

    Appendix: Watchdog Timer Setting 1 Watchdog Timer Working Procedure Watchdog Timer (WDT) is a special hardware device that monitors the computer system during normal operation. WDT has a clock circuit that times down from a set number to zero. If a monitored item occurs before the timer reaches zero, WDT resets and counts down again.

  • Page 60: Watchdog Timer Control Register

    2 Watchdog Timer Control Register The Watchdog Timer Control Register controls the WDT working mode. Write the value to the WDT Configuration Port. The following table describes the Control Regis- ter bit definition: Table B-2 : WDT Control Register Bit Definition 3 Watchdog Timer Programming Procedure ·...
  • Page 61 B.3.2 Clear the WDT WDT counter interval cannot be longer than the preset time, otherwise, WDT sends a reset signal to the system. The following is an example of clearing the WDT program in Intel 8086 assembly language. ; ( Clear the WDT) Mov dx, F2h ;Setting the WDT configuration port al, dx Note: Before running WDT, you must clear WDT to ensure...
  • Page 62 i.e. D3=1, Enables WDT al, 00001000b ; Enable the WDT After finishing the above settings, you must output the Control Register’s value to WDT Configuration Port. Then WDT will start according to the above settings. dx, F2h ; Setting WDT Configuration Port dx, al ;...

  • Page 63: Appendix: Gpio User Guide

    GPIO User Guide Digital I/O UESD Port 801 Input Output JP17 OUT 0 IN 0 OUT 1 IN 1 IN 2 OUT 2 IN 3 OUT 3...
