IPC962-511-FL/IPC964-512-FL Series User's Manual

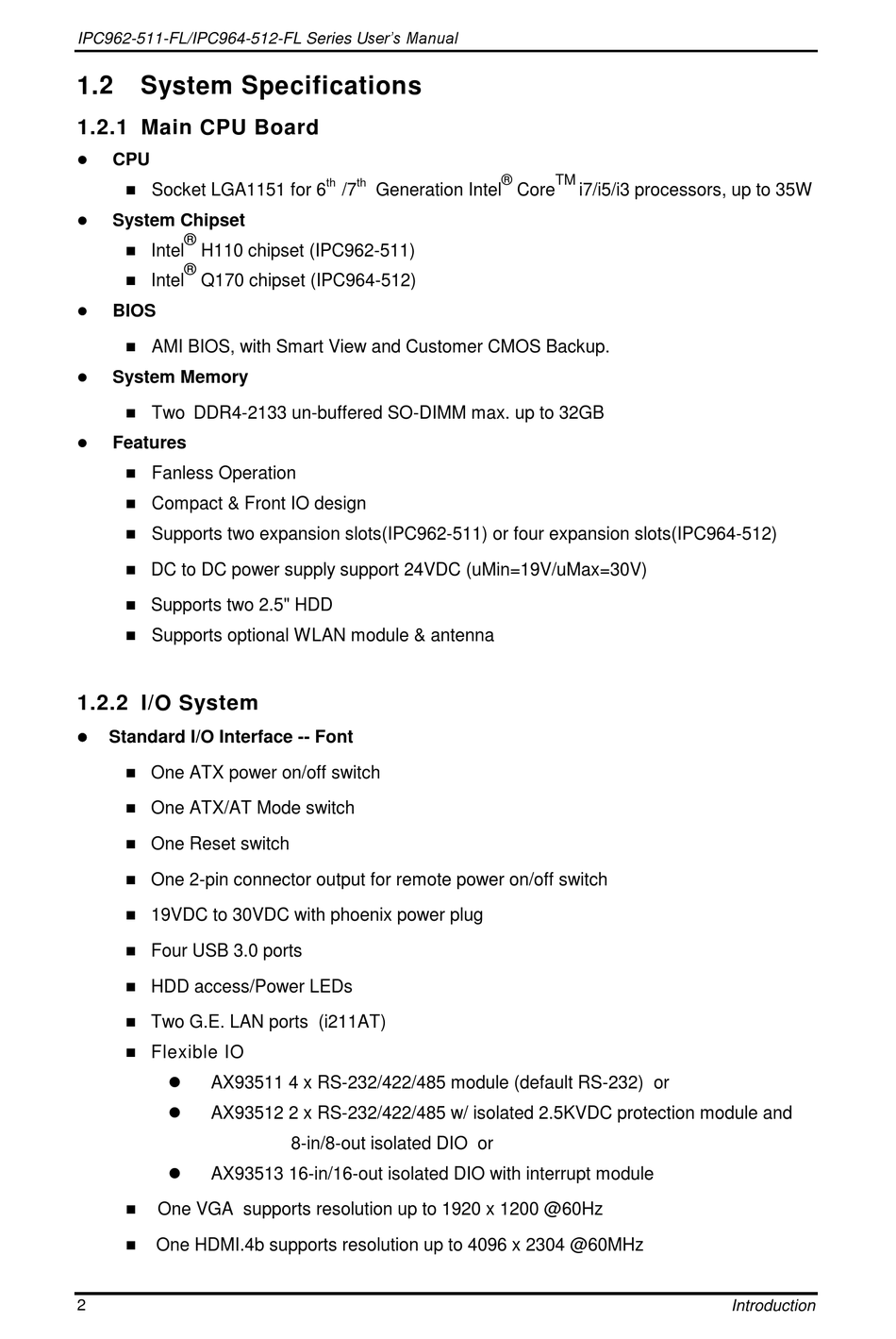

1.2

System Specifications

1.2.1 Main CPU Board

 CPU
 Socket LGA1151 for 6
 System Chipset
®

Intel H110 chipset (IPC962-511)
®
 Intel Q170 chipset (IPC964-512)
 BIOS
 AMI BIOS, with Smart View and Customer CMOS Backup.
 System Memory
 Two DDR4-2133 un-buffered SO-DIMM max. up to 32GB
 Features

Fanless Operation
 Compact & Front IO design
 Supports two expansion slots(IPC962-511) or four expansion slots(IPC964-512)
 DC to DC power supply support 24VDC (uMin=19V/uMax=30V)
 Supports two 2.5" HDD
 Supports optional WLAN module & antenna

1.2.2 I/O System

 Standard I/O Interface -- Font
 One ATX power on/off switch
 One ATX/AT Mode switch
 One Reset switch
 One 2-pin connector output for remote power on/off switch
 19VDC to 30VDC with phoenix power plug

Four USB 3.0 ports

HDD access/Power LEDs
 Two G.E. LAN ports (i211AT)
 Flexible IO

AX93511 4 x RS-232/422/485 module (default RS-232) or

AX93512 2 x RS-232/422/485 w/ isolated 2.5KVDC protection module and

AX93513 16-in/16-out isolated DIO with interrupt module
 One VGA supports resolution up to 1920 x 1200 @60Hz
 One HDMI.4b supports resolution up to 4096 x 2304 @60MHz
2
th th
/7 Generation Intel
8-in/8-out isolated DIO or
® TM
Core i7/i5/i3 processors, up to 35W
Introduction
