IPC962-511-FL/IPC964-512-FL Series User's Manual
2.4

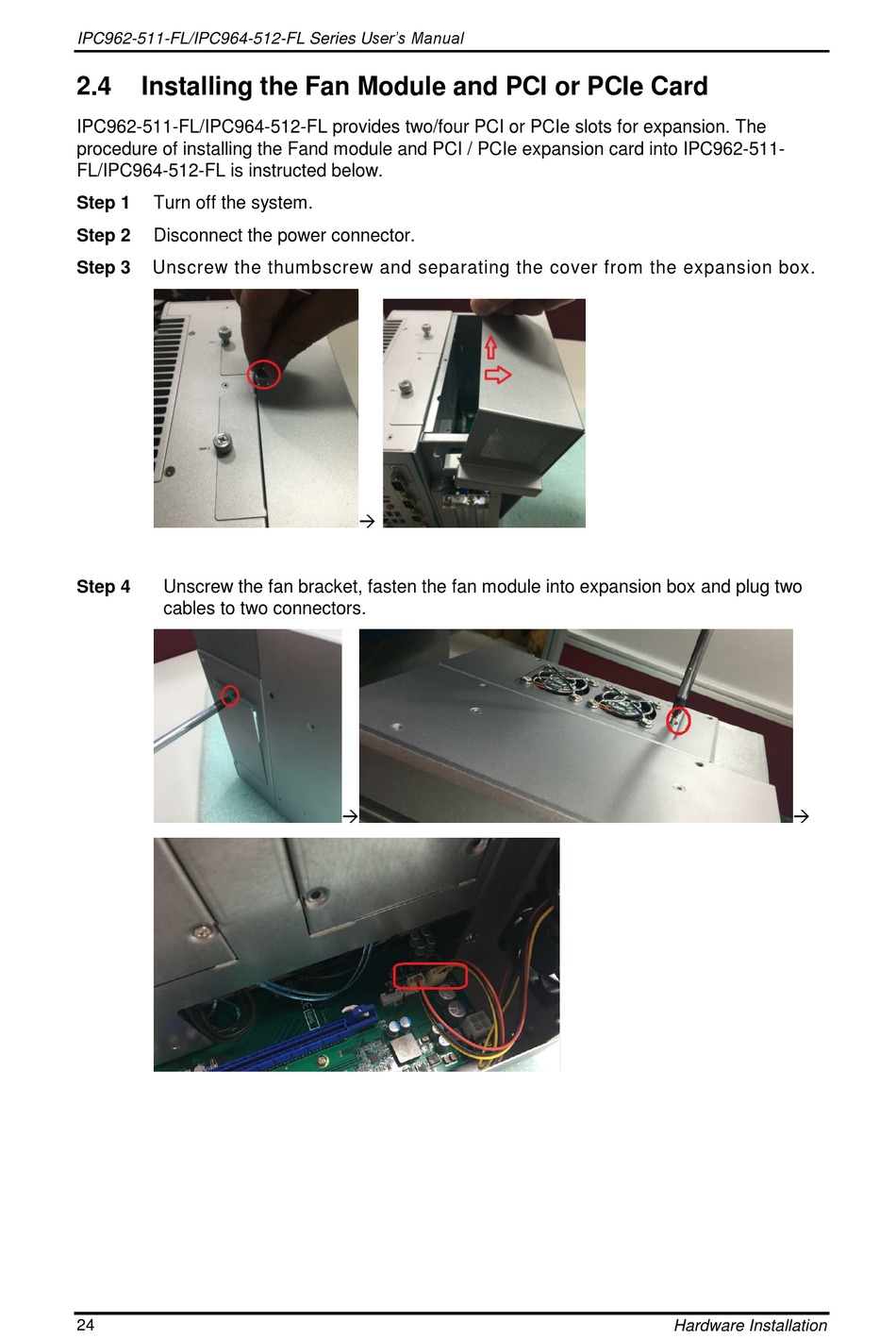

Installing the Fan Module and PCI or PCIe Card
IPC962-511-FL/IPC964-512-FL provides two/four PCI or PCIe slots for expansion. The
procedure of installing the Fand module and PCI / PCIe expansion card into IPC962-511-
FL/IPC964-512-FL is instructed below.
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3
Unscrew the thumbscrew and separating the cover from the expansion box.
Step 4
Unscrew the fan bracket, fasten the fan module into expansion box and plug two
cables to two connectors.
24
Hardware Installation
