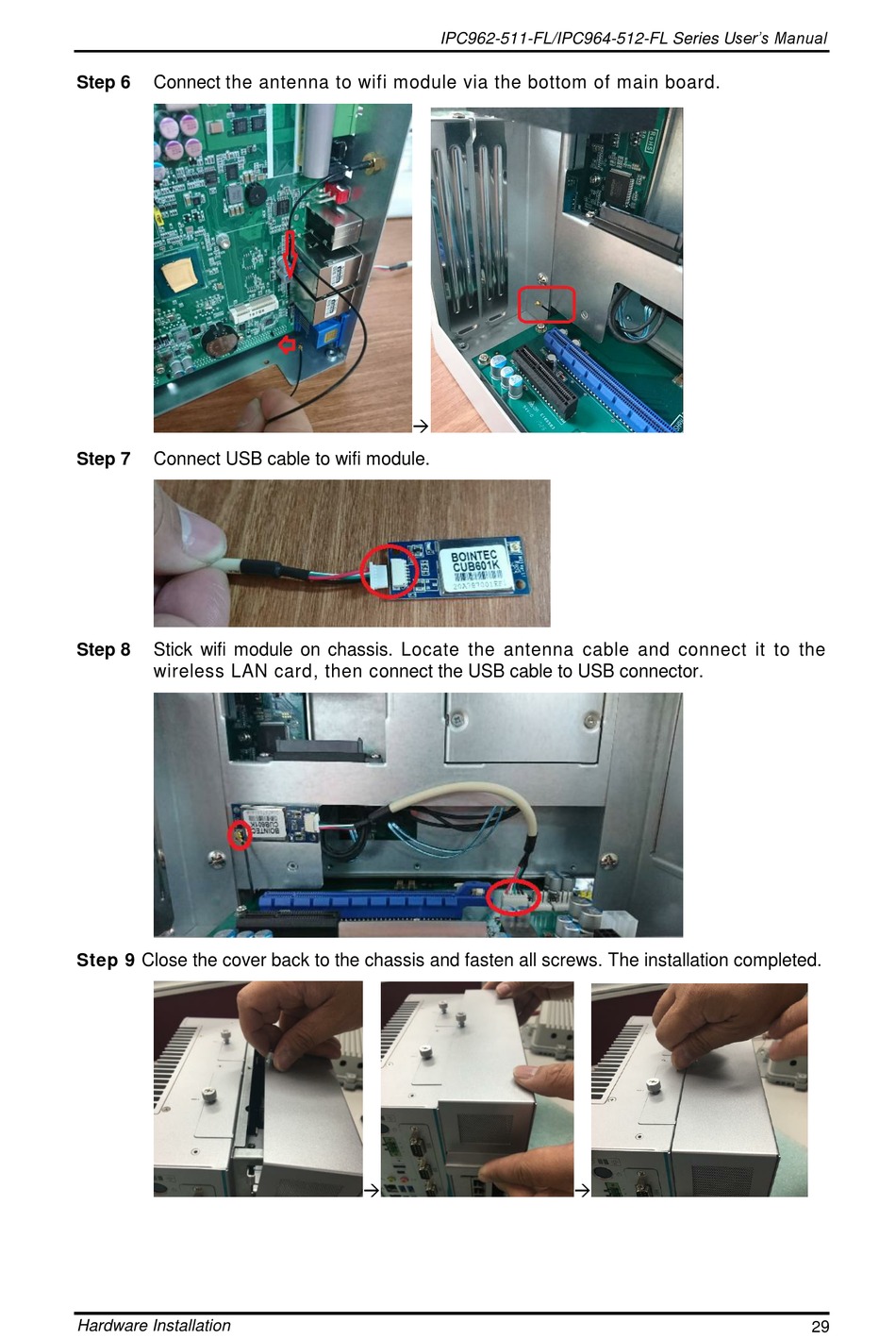

Step 6
Connect the antenna to wifi module via the bottom of main board.
Step 7
Connect USB cable to wifi module.
Step 8
Stick wifi module on chassis. Locate the antenna cable and connect it to the
wireless LAN card, then connect the USB cable to USB connector.
Step 9 Close the cover back to the chassis and fasten all screws. The installation completed.
Hardware Installation
IPC962-511-FL/IPC964-512-FL Series User's Manual
29
