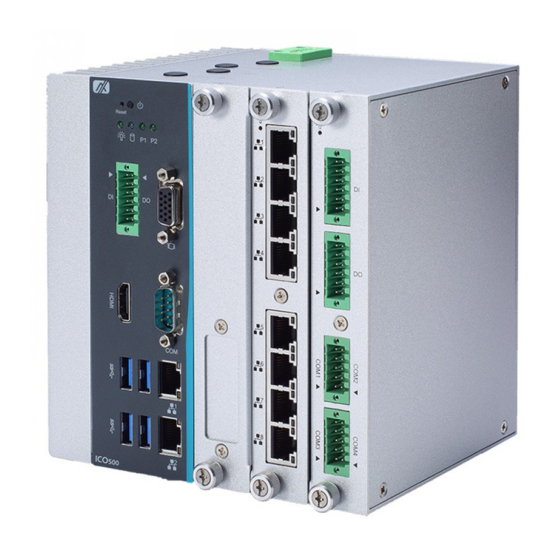

AXIOMTEK ICO500-518 Series User Manual

Modular robust din-rail fanless embedded system
Hide thumbs Also See for ICO500-518 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
ICO500-518 Series
Modular Robust Din-rail Fanless
Embedded System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICO500-518 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK ICO500-518 Series

Summary of Contents for AXIOMTEK ICO500-518 Series

  • Page 1 ICO500-518 Series Modular Robust Din-rail Fanless Embedded System User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The ICO500-518 does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock: not classified Degree of protection against the ingress of water: IP40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation: Continuous Type of protection against electric shock: Class I equipment General Cleaning Tips You may need the following precautions before you begin to clean the computer .
  • Page 5 Cleaning Tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.

  • Page 6: Scrap Computer Recycling

    Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ®...

  • Page 7: Table Of Contents

    Table of Contents Safety Precautions ....................iii Classification......................iv General Cleaning Tips ..................iv Scrap Computer Recycling .................. vi CHAPTER 1 INTRODUCTION ............... 1 General Description ................1 System Specifications ............... 2 1.2.1 CPU ........................2 1.2.2 BIOS ........................2 1.2.3 System Memory ....................
  • Page 8 About Watchdog Timer ................... 49 How to Use Watchdog Timer ................49 APPENDIX B POWER BUTTON SETTING FOR WINDOWS...... 51 APPENDIX C DIGITAL I/O ................55 viii...

  • Page 9: Chapter 1 Introduction

    ICO500-518 Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the ICO500-518. The Chapter 1 includes the following sections:  General Description  System Specification  Dimensions  I/O Outlets General Description The fanless embedded system ICO500-518 is an industrial-grade gateway with a robust hardware design, an ideal solution for communications control and protocol converter applications in harsh environments.

  • Page 10: System Specifications

    ICO500-518 Series User’s Manual  Features  Fanless design  Wide temperature operation of -40°C - +70°C  Supports 2 RJ-45 Gb Ethernet ports  Supports dual display, 1 VGA and 1 HDMI  1 COM port supporting RS-232/422/485 ...

  • Page 11: Display

    ICO500-518 Series User’s Manual 1.2.4 Display  A 15-pin D-Sub connector as VGA connector Pin Signal Pin Signal Pin Signal Green Blue N.C. N.C. DDC DATA Horizontal Sync Vertical Sync DDC CLK  1x HDMI Pin Signal Pin Signal TMDS data 2+...

  • Page 12: Storages

    ICO500-518 Series User’s Manual 1.2.6 Storages 1 x 2.5” External SATA drive bay   1 x SATA CFast Pin Signal Pin Signal 13 N.C SATA_TX+ 14 GND SATA_TX- 15 N.C 16 N.C SATA_RX- 17 N.C SATA_RX+ 18 N.C 19 N.C 20 +3.3VS...

  • Page 13: Wireless

    ICO500-518 Series User’s Manual 1.2.7 Wireless  1 x Full size Mini Card socket supports a module with USB and PCIe and SIM Interface (Socket 1).  1 x Full size Mini Card socket supports a module with USB and PCIe Interface (Socket 2).

  • Page 14: Usb

    ICO500-518 Series User’s Manual 1.2.8  4 x USB3.0 Pin Signal Pin Signal USB_VCC SSRX2+ USB_Data2- USB_Data2+ 8 SSTX2- SSTX2+ SSRX2- 1.2.9 COM Port  1 DB9 port supports RS-232/422/485 which can be selected by BIOS.  Supports Auto Flow Control in RS485 mode.

  • Page 15: Power& Reset Button

    ICO500-518 Series User’s Manual 1.2.12 Power& Reset Button  AT auto power on  Power button settings for software must be set up first. Pin Description Reset Button Power Button Note: Refer to APPENDIX B for instructions on Power button settings for Windows.

  • Page 16: Dimensions

    ICO500-518 Series User’s Manual 1.2.20 Dimensions 145mm(5.7”) (W) x125mm(4.92”) (D) x155mm(6.1”) (H)  1.2.21 System I/O Outlets  One HDMI connector display.  One 15-pin D-Sub female connector for VGA.  One 9-pin D-Sub male connector for COM.  Two 10/100/1000 base-T RJ-45 connectors with 1.5KV magnetic isolated protection.

  • Page 17: Dimensions

    ICO500-518 Series User’s Manual Dimensions The following diagrams show you the dimensions and outlines of the ICO500-518. Introduction...

  • Page 18: I/O Outlets

    ICO500-518 Series User’s Manual I/O Outlets The following figures show you I/O outlets on the front view, top view and bottom view of the ICO500-518. Introduction...
  • Page 19 ICO500-518 Series User’s Manual Introduction...
  • Page 20 ICO500-518 Series User’s Manual This page is intentionally left blank. Introduction...

  • Page 21: Chapter 2 Hardware Installation

    ICO500-518 Series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The ICO500-518 is flexible for your different hardware configurations, such as the memory module, hard disk drive, mini card and I/O module. Chapter 2 will show you how to install the hardware.
  • Page 22 ICO500-518 Series User’s Manual Step 4 Insert the PCIe Card into the socket and fasten screws. (Note: For the mini card with SIM function, the PCIe card should be inserted into Socket1) Step 5 Put the cover back onto the system, and fasten all screws tightly to close the chassis.

  • Page 23: Installing The Hard Disk Drive, Cfast & Sim Card

    ICO500-518 Series User’s Manual Installing the Hard Disk Drive, CFast & SIM Card Step 1 Turn off the system. Step 2 Loosen the screw as shown below, and pull out the SSD tray from the system. Step 3 Fasten the SSD screws (marked by the red arrows below) to fix the SSD. Then screw the SSD firmly to the tray (marked by the yellow circles) and install the tray back to the system.

  • Page 24: Installing The Module Card

    ICO500-518 Series User’s Manual Installing the Module Card Step 1 Turn off the system. Step 2 Loosen all cover screws and remove the cover from the system. Step 3 Install the module card as shown below, and fasten the screws firmly to finish the installation.

  • Page 25: Installing The Din-Rail Mounting Kit

    ICO500-518 Series User’s Manual Step 3 Install the antenna on the system as shown below. Step 4 Hold the other side and screw the antenna. Installing the DIN-rail Mounting Kit Step 1 Prepare the DIN-rail Mount assembly components (screws and bracket) ready.

  • Page 26: Installing The Wall Mounting Kit

    ICO500-518 Series User’s Manual Installing the Wall Mounting Kit Step 1 Prepare the Wall Mount assembly components (screws and bracket) ready. Step 2 Assemble the bracket to the system and fasten screws tight. Hardware Installation...

  • Page 27: Chapter 3 Ami Uefi Bios Utility

    ICO500-518 Series User’s Manual CHAPTER 3 AMI UEFI BIOS UTILITY The AMI UEFI BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a flash-backed-up to save the Setup information whenever the power is turned off...

  • Page 28: The Main Menu

    ICO500-518 Series User’s Manual The Main Menu Once you enter the AMI BIOS Aptio Setup Utility, the Main Menu appears on the screen. In the Main Menu, there are several Setup functions and a couple of Exit options for your selection. Use Select Screen Keys (or Move Keys) to select the Setup Page you intend to configure and then press <Enter>...

  • Page 29: Advanced Features

    ICO500-518 Series User’s Manual Advanced Features The Advanced menu also allows users to set configuration of the CPU and other system devices. Users can select any items in the left frame of the screen to go to sub menus: ►...
  • Page 30 ICO500-518 Series User’s Manual  Hardware Monitor This screen displays the temperature of CPU and system, as well as system voltages (+3.3V, +12V and +5V ,etc). AMI UEFI BIOS Utility...
  • Page 31 ICO500-518 Series User’s Manual  F81803 Super IO Configuration Use this screen to select options for the F81803 Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter>...
  • Page 32 ICO500-518 Series User’s Manual Select Mode Use this option to set RS-232/RS-422/RS-485 mode. AMI UEFI BIOS Utility...
  • Page 33 ICO500-518 Series User’s Manual  CPU Configuration This screen shows the CPU version and its detailed information. AMI UEFI BIOS Utility...
  • Page 34 ICO500-518 Series User’s Manual  SATA Configuration SATA Mode Selection AHCI (Advanced Host Controller Interface) mode is how SATA controller(s) operate. Serial ATA Port 0~1 It shows the device installed in connector SATA0~1. AMI UEFI BIOS Utility...
  • Page 35 ICO500-518 Series User’s Manual  PCH-FW Configuration This screen shows ME Firmware information. AMI UEFI BIOS Utility...
  • Page 36 ICO500-518 Series User’s Manual S5 RTC Wake Setting The default setting is on. If the setting is on, the system will wake at a fixed time specified in this option and boot up automatically. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 37 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 38 BIOS flash utility is a tool for flashing BIOS on setup menu. Follow the steps to flash BIOS. Create a folder and rename it to Axiomtek on the root of USB storage (Ex: X:\Axiomtek). Copy the BIOS file to the Axiomtek folder (Ex: X:\Axiomtek\SBC87518X.005).
  • Page 39 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 40 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 41 ICO500-518 Series User’s Manual  Device Configuration Device configuration divides into two parts: one part is onboard device; the other is module device. The Module Device Configuration menu would dynamically appear when a module device is plugged into the slot. When no module is plugged in, the screen would only show Onboard Device Configuration.
  • Page 42 ICO500-518 Series User’s Manual Onboard DIO Configuration In the onboard DIO configuration, the screen displays DIO information and set I/O. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 43 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 44 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 45 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 46 ICO500-518 Series User’s Manual Module DIO Configuration When the module has DIO functions, the module DIO configuration menu would show and display DIO information and set I/O. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 47 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...
  • Page 48 ICO500-518 Series User’s Manual Module COM port Configuration When the module have COM port functions, the module COM configuration menu would show. The default setting for all Serial Ports is RS232. You can change the setting by selecting the value you want in each COM port type. The system supports RS422 &...
  • Page 49 ICO500-518 Series User’s Manual AMI UEFI BIOS Utility...

  • Page 50: Chipset Feature

    ICO500-518 Series User’s Manual Chipset Feature The Chipset menu allows users to change the advanced chipset settings. Users can select any of the items in the left frame of the screen to go to the sub menus: ► System Agent (SA) Configuration For items marked with “”, please press <Enter>...
  • Page 51 ICO500-518 Series User’s Manual  Memory Configuration This screen shows the system memory information. AMI UEFI BIOS Utility...

  • Page 52: Security

    ICO500-518 Series User’s Manual Security The Security menu allows users to set an administrator password and a user password to enhance system security. No password is set in the default setting. (Please refer below graphics.) Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled).

  • Page 53: Boot Type

    ICO500-518 Series User’s Manual Boot Type The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Use this item to set up number of seconds to wait for setup activation key where 65535(0xFFFF) means indefinite waiting.

  • Page 54: Save & Exit

    ICO500-518 Series User’s Manual Save & Exit The Save & Exit menu allows users to load system configurations with optimal or fail-safe default values. Save Changes and Exit When users have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 55 ICO500-518 Series User’s Manual Save Changes After completing the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configurations.
  • Page 56 ICO500-518 Series User’s Manual This page is intentionally left blank. AMI UEFI BIOS Utility...

  • Page 57: Appendix Awatchdog Timer

    ICO500-518 Series User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer After the system stops working for a while, it can be auto-reset by the watchdog timer. The integrated watchdog timer can be set up in the system reset mode by a program.
  • Page 58 ICO500-518 Series User’s Manual This page is intentionally left blank. Watchdog Timer...

  • Page 59: Appendix Bpower Button Setting For Windows

    ICO500-518 Series User’s Manual APPENDIX B POWER BUTTON SETTING FOR WINDOWS To change how the power button operates, go to the console of the PC and then follow below figures to complete the setting. Power Button Setting For Windows...
  • Page 60 ICO500-518 Series User’s Manual Power Button Setting For Windows...
  • Page 61 ICO500-518 Series User’s Manual Power Button Setting For Windows...
  • Page 62 ICO500-518 Series User’s Manual This page is intentionally left blank. Power Button Setting For Windows...

  • Page 63: Appendix Cdigital I/O

    ICO500-518 Series User’s Manual APPENDIX C DIGITAL I/O Digital Input: Ext Power Input Voltage: 30Vdc Max. Digital Input channels: 4, sink/source type Digital Input voltage: 0 to 30VDC Input level for dry contacts: Logic level 0: close Logic level 1: open Input level for wet contacts: Logic level 1: +/-3VDC max.
  • Page 64 ICO500-518 Series User’s Manual Digital Input Wiring Dry Contact (1): With external power. Dry Contact (2): Without external power. Digital I/O...
  • Page 65 ICO500-518 Series User’s Manual Wet Contact (1): Wet Contact (2): Digital Output Wiring DO drive high: x_OUT equal to COM-(up to 200mA) DO drive low: High impedance Digital I/O...
