1.7.1

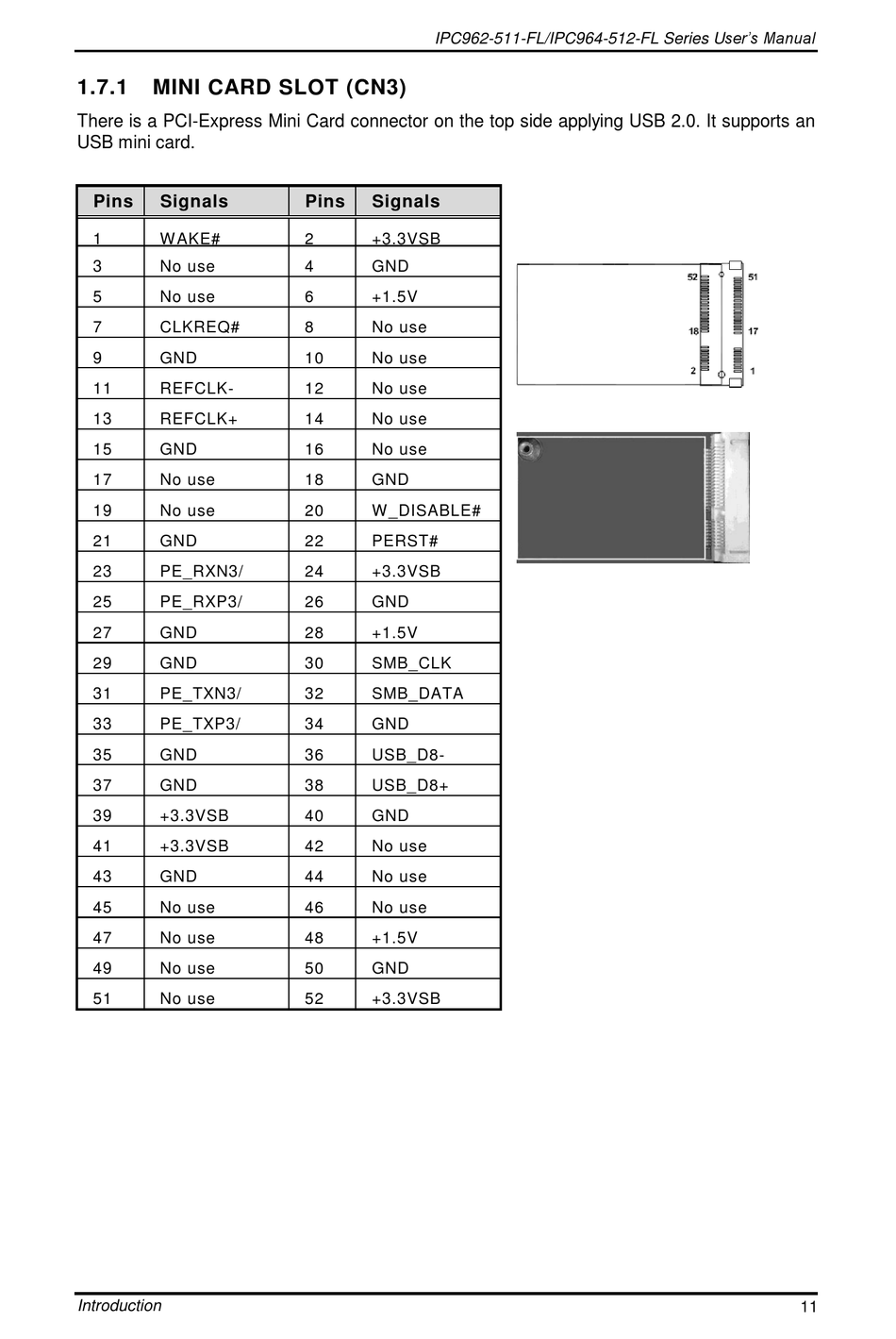

MINI CARD SLOT (CN3)

There is a PCI-Express Mini Card connector on the top side applying USB 2.0. It supports an
USB mini card.
Pins Signals
1 W AKE#
3 No use
5 No use
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 No use
19 No use
21 GND
23 PE_RXN3/
25 PE_RXP3/ SATA_RXP
27 SATA_RXN GND
29 GND
31 PE_TXN3/
33 PE_TXP3/ SATA_TXN
35 SATA_TXP GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 No use
47 No use
49 No use
51 No use
Introduction
IPC962-511-FL/IPC964-512-FL Series User's Manual
Pins Signals
2 +3.3VSB
4 GND
6 +1.5V
8 No use
10 No use
12 No use
14 No use
16 No use
18 GND
20 W _DISABLE#
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D8-
38 USB_D8+
40 GND
42 No use
44 No use
46 No use
48 +1.5V
50 GND
52 +3.3VSB
