IPC962-511-FL/IPC964-512-FL Series User's Manual

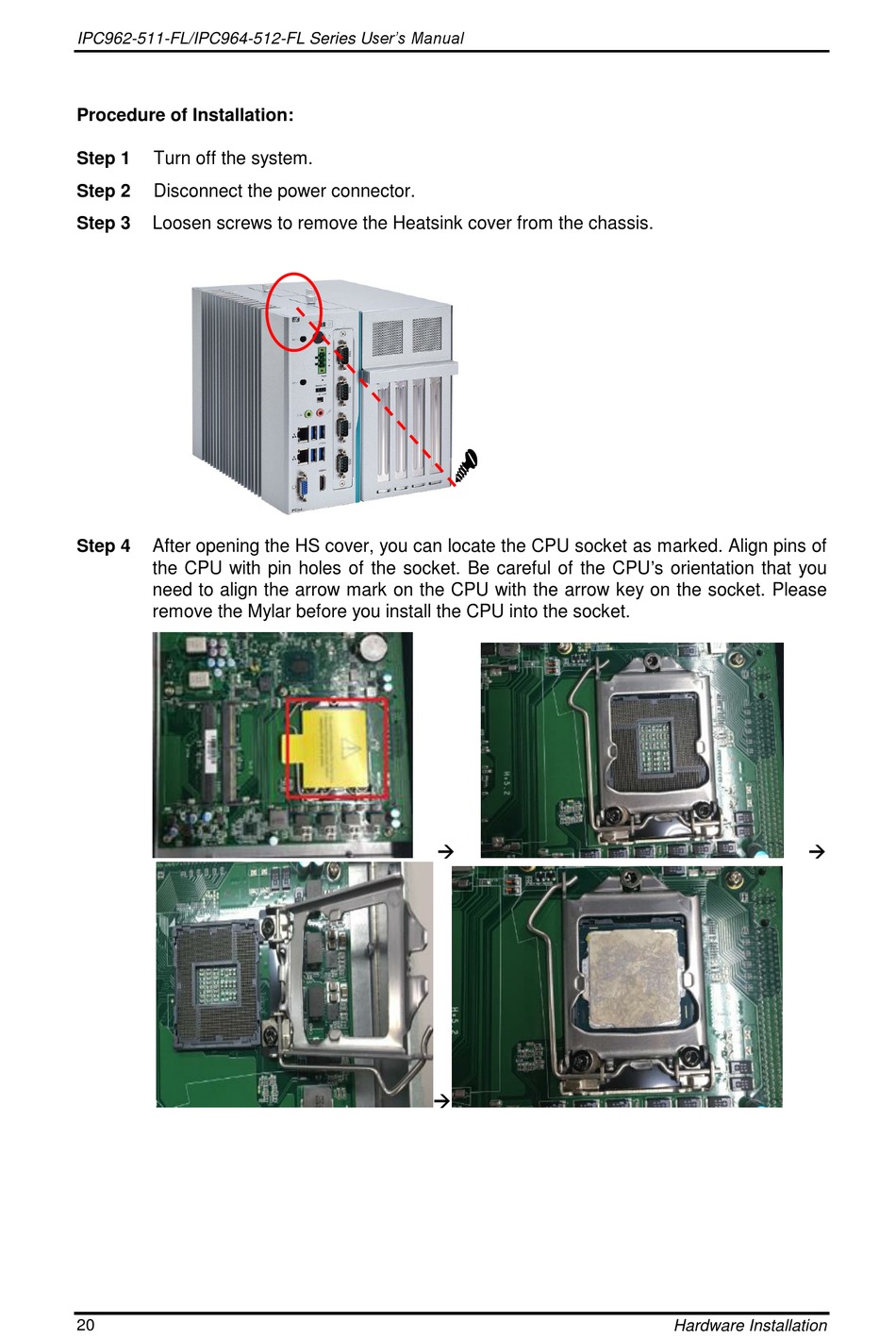

Procedure of Installation:
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3
Loosen screws to remove the Heatsink cover from the chassis.
Step 4
After opening the HS cover, you can locate the CPU socket as marked. Align pins of
the CPU with pin holes of the socket. Be careful of the CPU's orientation that you
need to align the arrow mark on the CPU with the arrow key on the socket. Please
remove the Mylar before you install the CPU into the socket.
20
Hardware Installation
