AXIOMTEK ICO300-83B User Manual

Robust din-rail fanless embedded system
Hide thumbs Also See for ICO300-83B:
Table of Contents

Advertisement

Quick Links

Download this manual

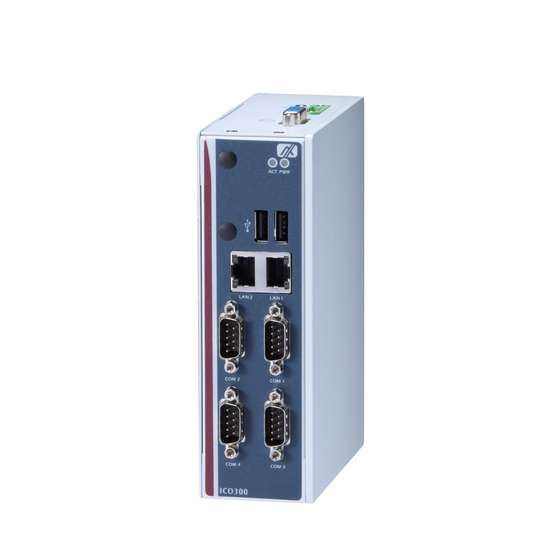

ICO300-83B
Robust Din-rail Fanless Embedded
System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICO300-83B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK ICO300-83B

Summary of Contents for AXIOMTEK ICO300-83B

  • Page 1 ICO300-83B Robust Din-rail Fanless Embedded System User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The ICO300 does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static ch arge when installing the internal components.
  • Page 4 Classification Degree of production against electric shock: not classified Degree of protection against the ingress of water: IP40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation: Continuous Type of protection against electric shock: Class I equipment General Cleaning Tips You may need the following precautions before you begin to clean the computer .
  • Page 5 Cleaning Tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.
  • Page 6 Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.
  • Page 7 USB ........................4 1.2.9 COM ........................4 1.2.10 Power ........................ 4 1.2.11 Power Button (ICO300-83B-PB) ..............5 1.2.12 DIO (ICO300-83B-DIO) ..................5 1.2.13 WatchDog Timer (WDT) .................. 5 1.2.14 Restore BIOS Optimal Defaults (JP2) ............5 1.2.15 System LED ...................... 6 1.2.16 Operation Temperature ...................
  • Page 8 Save & Exit ..................49 APPENDIX A WATCHDOG TIMER ..............53 About Watchdog Timer ................... 53 How to Use Watchdog Timer ................53 APPENDIX B POWER BUTTON SETTING FOR WINDOW SOFTWARE ... 55 viii...

  • Page 9: Chapter 1 Introduction

    ICO300-83B User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the ICO300. The Chapter 1 includes the following sections:  General Description  System Specification  Dimensions  I/O Outlets General Description ICO300 Din-rail fanless embedded system is suitable for communications control and for protocol converter applications in critical environments.
  • Page 10 2 Wireless (USB and PCIe Interface)  Support one 2.5” SATA drive bay (or mSATA )  Wide range 12–24V DC-in with terminal block  1 DI/DO (8-bit programmable, DB9 female connector) (ICO300-83B-DIO)  Din-rail mounting  Wall mounting (optional) ...

  • Page 11: System Specifications

    A slim type 15-pin D-Sub connector as VGA connector. 1.2.5 Ethernet Ports  LAN Chip: Intel Ethernet Controller I211-AT.  LAN Chip: Intel Ethernet Controller I210-IT.(ICO300-83B-W T) LAN 1 and LAN 2 The board has dual RJ-45 connectors, support 10/100/1000 Base-T with 1.5KV magnetic isolated protection. 1.2.6 Storages ...

  • Page 12: Power

    ICO300-83B User’s Manual 1.2.8  x USB3.0  USB Pin Define : Signal Signal USB Port 0 USB Port 1 5 6 7 8 1 2 3 4 1.2.9  4 ports DB9 support RS-232/422/485 which can be selected by BIOS.

  • Page 13: Power Button (Ico300-83B-Pb)

    ICO300-83B User’s Manual 1.2.11 Power Button (ICO300-83B-PB)  AT auto power on  Power button setting for software must be setted up firstly. Note: Power button setting for Window software is offered on APPENDIX B for reference. 1.2.12 DIO (ICO300-83B-DIO) ...

  • Page 14: System Led

    One 15-pin D-Sub female connector for VGA.  Two 10/100/1000 Base-T RJ-45 with 1.5KV magnetic isolated protection.  Four USB 3.0 connectors.  One DC Power Input with terminal block.  One 9-pin D-Sub Female connectors for DIO. (ICO300-83B-DIO)  Three Antenna holes. Introduction...

  • Page 15: Dimensions

    ICO300-83B User’s Manual Dimensions The following diagrams show you dimensions and outlines of the ICO300- 83B/ICO300-83B-DIO/ICO300-83B-PB/ICO300-83B-DIO-PB. Introduction...
  • Page 16 ICO300-83B User’s Manual Introduction...

  • Page 17: I/O Outlets

    ICO300-83B User’s Manual I/O Outlets The following figures show you I/O outlets on front view and top view of the ICO300- 83B/ICO300-83B-DIO/ICO300-83B-PB/ICO300-83B-DIO-PB. Introduction...
  • Page 18 ICO300-83B User’s Manual Introduction...
  • Page 19 ICO300-83B User’s Manual Introduction...
  • Page 20 ICO300-83B User’s Manual Introduction...

  • Page 21: Chapter 2 Hardware Installation

    ICO300-83B User’s Manual CHAPTER 2 HARDWARE INSTALLATION The ICO300-83b is convenient for your various hardware configurations, such as Memory Module and Hard Disk Drive. The chapter 2 will show you how to install the hardware. It includes: Installing the Memory Module Step 1 Turn off the system.
  • Page 22 ICO300-83B User’s Manual Step 4 The memory module is locked by two latches on the sides. We strongly recommend using “LDC737” silicone on the two sides of the memory for good ability of vibration. Step 5 Put the cover back to the system, and fasten screws tight close the chassis.

  • Page 23: Installing The Msata/Wireless Module

    ICO300-83B User’s Manual Installing the mSATA/Wireless module Step 1 Turn off the system. Step 2 Loosen all screws of the cover and remove the cover from the system. Insert the mSATA into the slot which marking with “mSATA / USB / PCIe ”.
  • Page 24 ICO300-83B User’s Manual Step 4 Fasten the screw tightly. Step 5 Put the cover back to the system, and fasten screws tight close the chassis. Hardware Installation...

  • Page 25: Installing The Hard Disk Drive

    ICO300-83B User’s Manual Installing the Hard Disk Drive Step 1 Turn off the system. Step 2 Loosen all screws of the cover and remove the cover from the system. Step 3 Loosen 4pcs screws of the cover, and put the HDD into the HDD bracket and fix the HDD by 4pcs of screws in the accessory bag.
  • Page 26 ICO300-83B User’s Manual Step 4 Put the HDD bracket on the cover and use 4pcs screws to fix tightly. Takes the HDD SATA+Power HDD cable and Cable Tie out from the accessory bag and connect SATA+Power HDD cable to HDD then use Cable Tie to fix it on the HDD bracket, cut off the lengthy Cable Tie.

  • Page 27: Installing Din-Rail Mounting

    ICO300-83B User’s Manual Installing Din-rail Mounting The ICO300-83B provides Din-rail Mount for 2 methods that customers can install as below: Step 1 Prepare Din-rail Mount assembling components (screws and bracket) ready. Only 4mm length M3 type screws can be accepted.
  • Page 28 ICO300-83B User’s Manual Method 2: Hardware Installation...

  • Page 29: Installing Wall Mounting (Optional)

    ICO300-83B User’s Manual Installing Wall Mounting (optional) The ICO300 provides W all Mounting that customers can install as below: Step 1 Prepare Wall Mount assembling components (screws and bracket) ready. Step 2 Assembly the bracket to the system, and fasten screws tight.
  • Page 30 ICO300-83B User’s Manual This page is intentionally left blank. Hardware Installation...

  • Page 31: Chapter 3 Ami Uefi Bios Utility

    ICO300-83B User’s Manual CHAPTER 3 AMI UEFI BIOS UTILITY The AMI UEFI BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a flash-backed-up to save the Setup information whenever the power is turned off...

  • Page 32: The Main Menu

    ICO300-83B User’s Manual The Main Menu Once you enter the AMI BIOS Aptio Setup Utility, the Main Menu appears on the screen. In the Main Menu, there are several Setup functions and a couple of Exit options for your selection. Use Select Screen Keys (or Move Keys) to select the Setup Page you intend to configure then press <Enter>...

  • Page 33: Advanced Features

    ICO300-83B User’s Manual Advanced Features This Advanced section allows users to configure and improve your system, to set up some system features according to your preference. You can select any of the items in the left frame of the screen to go to the sub menus:...
  • Page 34 ICO300-83B User’s Manual  Serial Port Configuration The default setting for all Serial Ports are RS232. You can change the setting by selecting the value you want in each COM Port Type. Supports internal 120 ohms terminator in RS422 & RS485 mode.
  • Page 35 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 36 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 37 ICO300-83B User’s Manual  H/W Monitor Scroll to this item and press <Enter> to view the monitor hardware status. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 38 ICO300-83B User’s Manual  RTC Wake Settings The default setting is “disable”. If the setting is changed for “enable”, you can set up the fixed time to boot up automatically. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 39 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 40 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 41 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 42 ICO300-83B User’s Manual  Serial Port Console Redirection Only COM1 has the console redirection function. The default setting for the console redirection function is [Disabled] (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 43 ICO300-83B User’s Manual If the setting for the console redirection function is changed for [Enabled], the settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.
  • Page 44 ICO300-83B User’s Manual And you can further change the setting by selecting or setting the value you want in each function as the following pictures. AMI UEFI BIOS Utility...
  • Page 45 ICO300-83B User’s Manual  CPU Configuration Scroll to this item and press <Enter> to view the CPU Configuration informations. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 46 ICO300-83B User’s Manual  IDE Configuration Scroll to this item and press <Enter> to view the IDE Configuration informations. (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 47 ICO300-83B User’s Manual Note: CF and mSATA function can be either one, it can be select by BIOS menu. mSATA and wireless use the same slot, and only one of them can be selected. AMI UEFI BIOS Utility...
  • Page 48 ICO300-83B User’s Manual  USB Configuration Scroll to this item and press <Enter> to view the USB Con figuration informations. (Please refer below graphics.) AMI UEFI BIOS Utility...

  • Page 49: Chipset Feature

    ICO300-83B User’s Manual Chipset Feature This section contains completely optimized chipset ’s features in the system AMI UEFI BIOS Utility...
  • Page 50 ICO300-83B User’s Manual AMI UEFI BIOS Utility...

  • Page 51: Security

    ICO300-83B User’s Manual Security The default setting for Administrator Password is “Not setting passwords”. The Security menu allows users to change the security settings for the system. You can set the password for both Administrator Password and User Password. (Please refer below graphics.)
  • Page 52 ICO300-83B User’s Manual Note: The BIOS default has no password, when user created the password, please remember the password number, if users forget password the RMA is the only solution. AMI UEFI BIOS Utility...

  • Page 53: Boot Type

    ICO300-83B User’s Manual Boot Type The default setting boot from onboard LAN PxE Rom is [Disabled] (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 54 ICO300-83B User’s Manual The Boot Option Priorities can select by Boot Option #1, #2… (Please refer below graphics.) AMI UEFI BIOS Utility...
  • Page 55 ICO300-83B User’s Manual Hard Drive BBS Priorites supports the hard drive boot option. AMI UEFI BIOS Utility...
  • Page 56 ICO300-83B User’s Manual AMI UEFI BIOS Utility...

  • Page 57: Save & Exit

    ICO300-83B User’s Manual Save & Exit This section allows you to determine whether or not to accept your modifications. Type “Y” to quit the setup utility and save all changes. Type “N” to bring you back to the Previous Setup utility.
  • Page 58 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 59 ICO300-83B User’s Manual AMI UEFI BIOS Utility...
  • Page 60 ICO300-83B User’s Manual This page is intentionally left blank. AMI UEFI BIOS Utility...

  • Page 61: Appendix A Watchdog Timer

    ICO300-83B User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer After the system stops working for a while, it can be auto-reset by the watchdog timer. The integrated watchdog timer can be set up in the system reset mode by program.
  • Page 62 ICO300-83B User’s Manual Disable WDT  Enable configuration: O 2E 87 ; Un-lock super I/O O 2E 87  Select logic device: O 2E 07 O 2F 08  WDT device disable: O 2E 30 O 2F 00 Watchdog Timer...

  • Page 63: Appendix B Power Button Setting For Window Software

    ICO300-83B User’s Manual APPENDIX B POWER BUTTON SETTING FOR WINDOW SOFTWARE Please make the power button setting from the console of PC, then follow up below pictures to do the setting. Power Button Setting For Window Software...
  • Page 64 ICO300-83B User’s Manual Power Button Setting For Window Software...
  • Page 65 ICO300-83B User’s Manual Power Button Setting For Window Software...
