7. Start-up
Procedure
Start work and drive approx. 10 m.
1.
Measure the processed width (working width).
2.
Measure the length between the navigation point of the implement and the attachment hook
3.
NOTE:
The navigation point is the point on the implement that follows the wayline.
Measure the length between the start of the processed area and the attachment hook of the front
4.
power lift
NOTE: If the mark is to be created at the end of the implement, measure from this point to the end
of the implement.

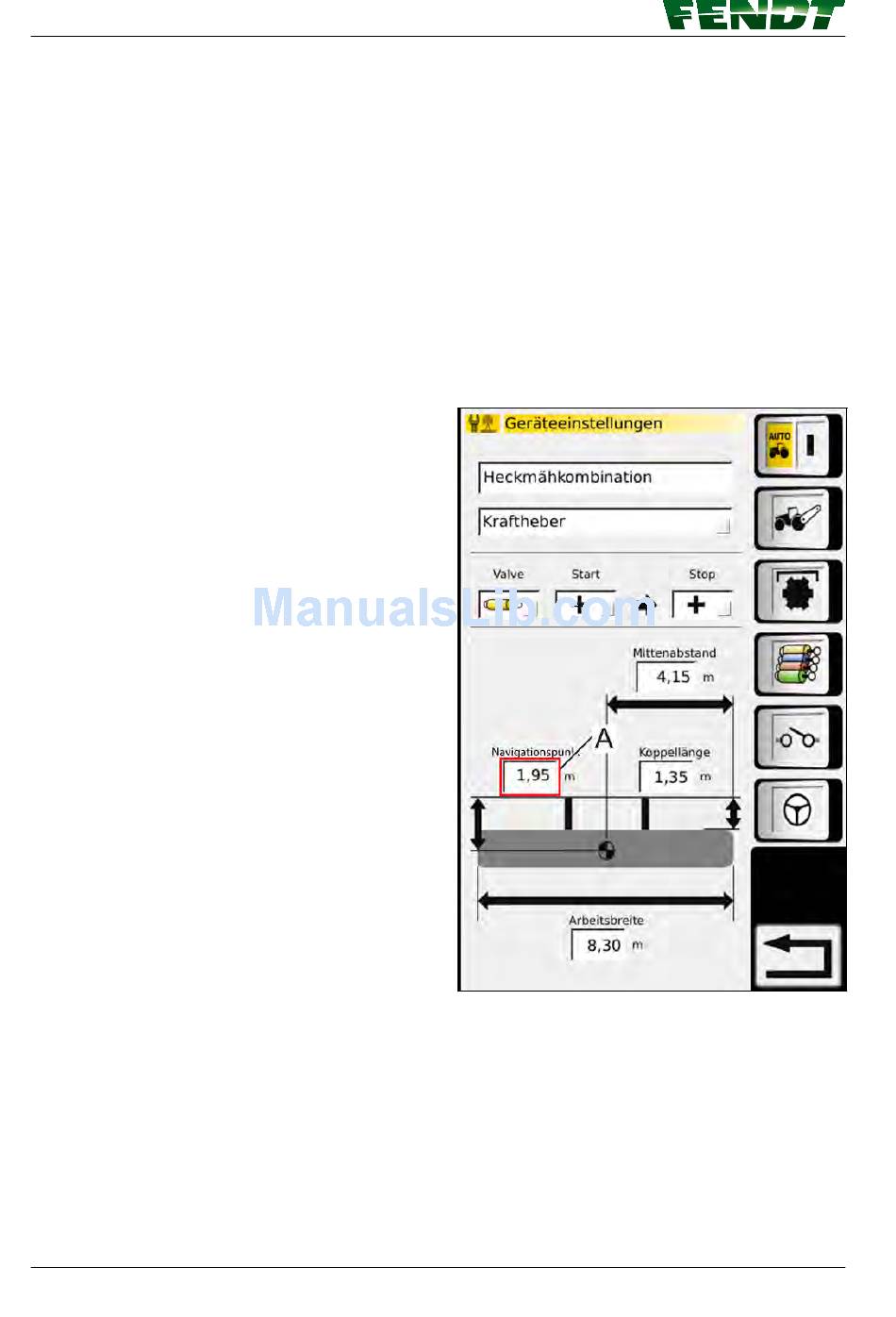

7.2.4.3 Set the navigation point of the rear-mounted implement

Procedure
Select the navigation point field (A) by touch
1.
or via the external control panel.
Set the navigation point distance via the
2.
external control panel.
78
Fig. 21
VarioGuide
438.020.070.012
