5. Map view

5.2.2 Zoom

Configure zoom

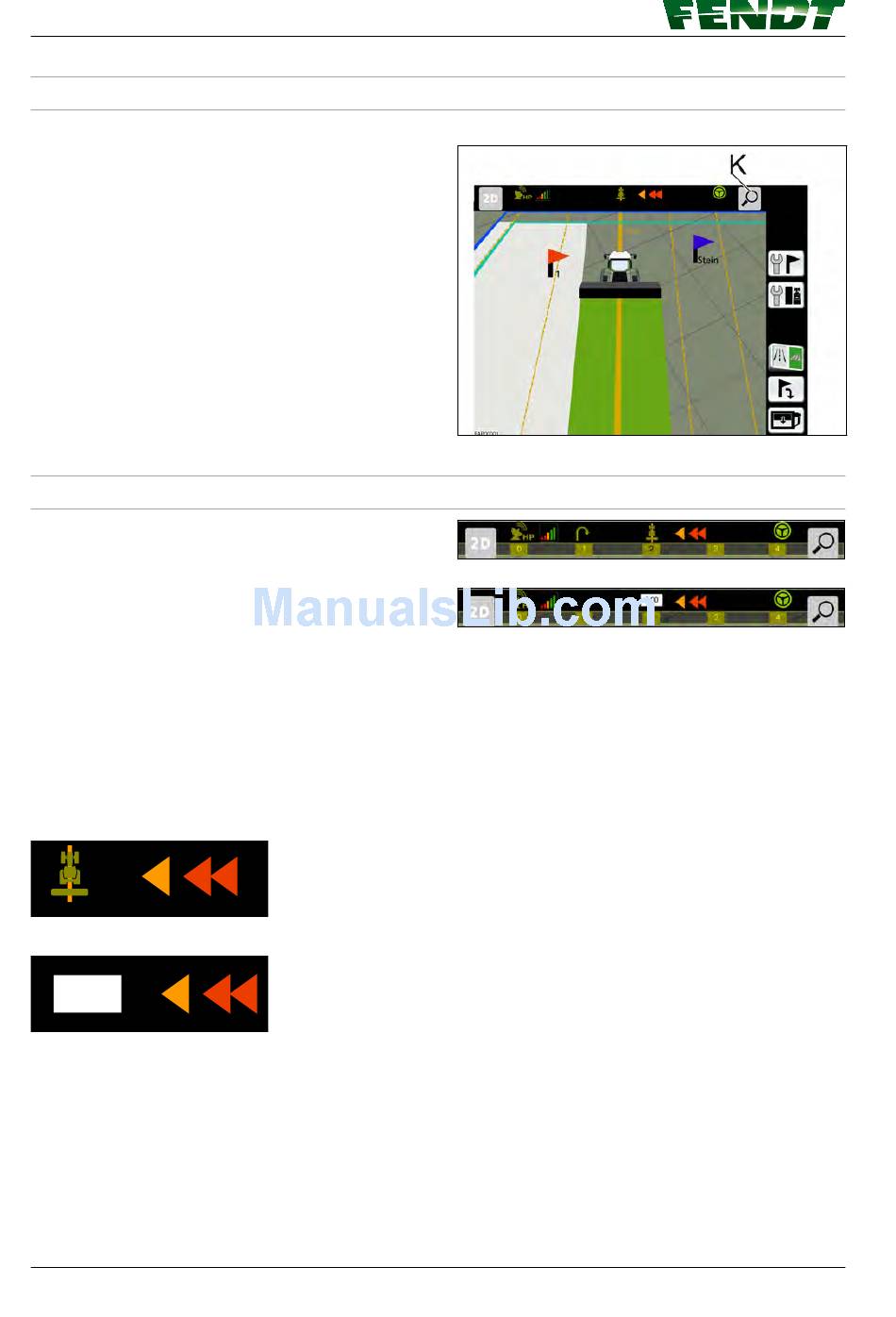

Press soft key (K), zoom will change
gradually.
NOTE: In 2D mode, 4 levels of magnification
are possible. In 3D mode, 3 levels of
magnification are possible.

5.2.3 Info bar

The Info bar shows all information which is
permanently visible to the operator for safety
reasons and to keep him informed.
Way line number
Way line numbers are displayed at fixed positions in the status bar, depending on the track width. The
current way line number is always shown on an extended line in front of the representation of the tractor.
Way line deviation
There are two modes for displaying the current way line deviation.
arrow = minor deviation; orange and red arrow = major deviation.
0,00
tractor icon will also be replaced by a number box showing the current deviation in meters. Press again to
show the tractor icon.
Arrows are positioned to the right of the tractor icon and point to the left:
• As the tractor is to the right of the target way line, the activated way line guidance system will steer the
tractor to the left.
Arrows are positioned to the left of the tractor icon and point to the right:
• As the tractor is to the left of the target way line, the activated way line guidance system will steer the
tractor to the right.
