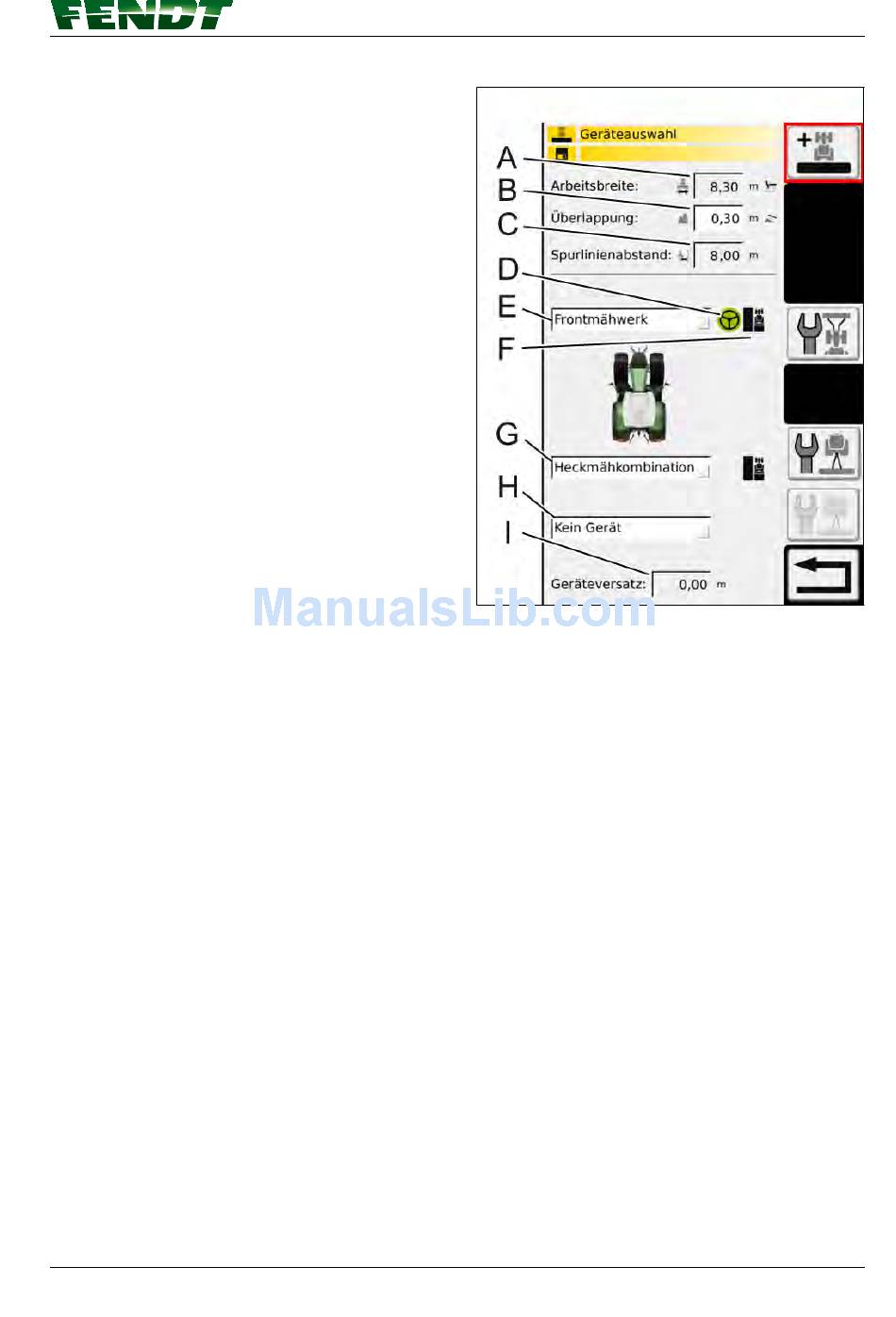

(A)
Working width display: actual determined/
measured working width
(B)
Overlap display: required overlap (affects the
map display and the wayline distance)
(C)
Calculated wayline distance display
(D)
Symbol: Implement determines wayline
guidance
(E)
Front-mounted implement selection field
(F)
Symbol: Implement is used for processed
area
(G)
Rear-mounted implement selection field
(H)
Second rear-mounted implement selection
field
Implement offset (calculated)
(I)
VarioGuide
438.020.070.012
Fig. 7
4. Quick Start
35
