7.9 Decimeter range with Trimble receiver

7.9.1 CenterPoint RTX Satellite

7.9.1.1 Set correction signal for Centerpoint RTX Satellite

Set correction signal
Select the correction signal via the "Signal
1.
Type" selection field.
NOTE:
OmniSTAR correction signal activation can
only be received if a green tick appears in the
connection status. If necessary, check
frequency and baud rate.
Select the RTX type.
2.
Set the frequency.
3.
Select the baud rate.
4.
Display
Satellite receiver
Signal type
RTX type
Frequency
Baud rate
Accuracy
Signal lag
Connection status
VarioGuide
438.020.070.012
Designation of the installed receiver
The correction signal source can be selected here
The RTX type can be selected here: RTX Standard, RTX Fast EU, RTX Fast US
Bar indicator and decimal value of static accuracy
Specifies the time in s taken to receive the correction signal update. If 999 is
shown here, the correction signal cannot be currently received.
Specifies the connection status of the GNSS receiver to the source of the
correction data (e.g. connected, update required, expired). The tick shows
whether the GNSS receiver is currently connected to the correction data
source.

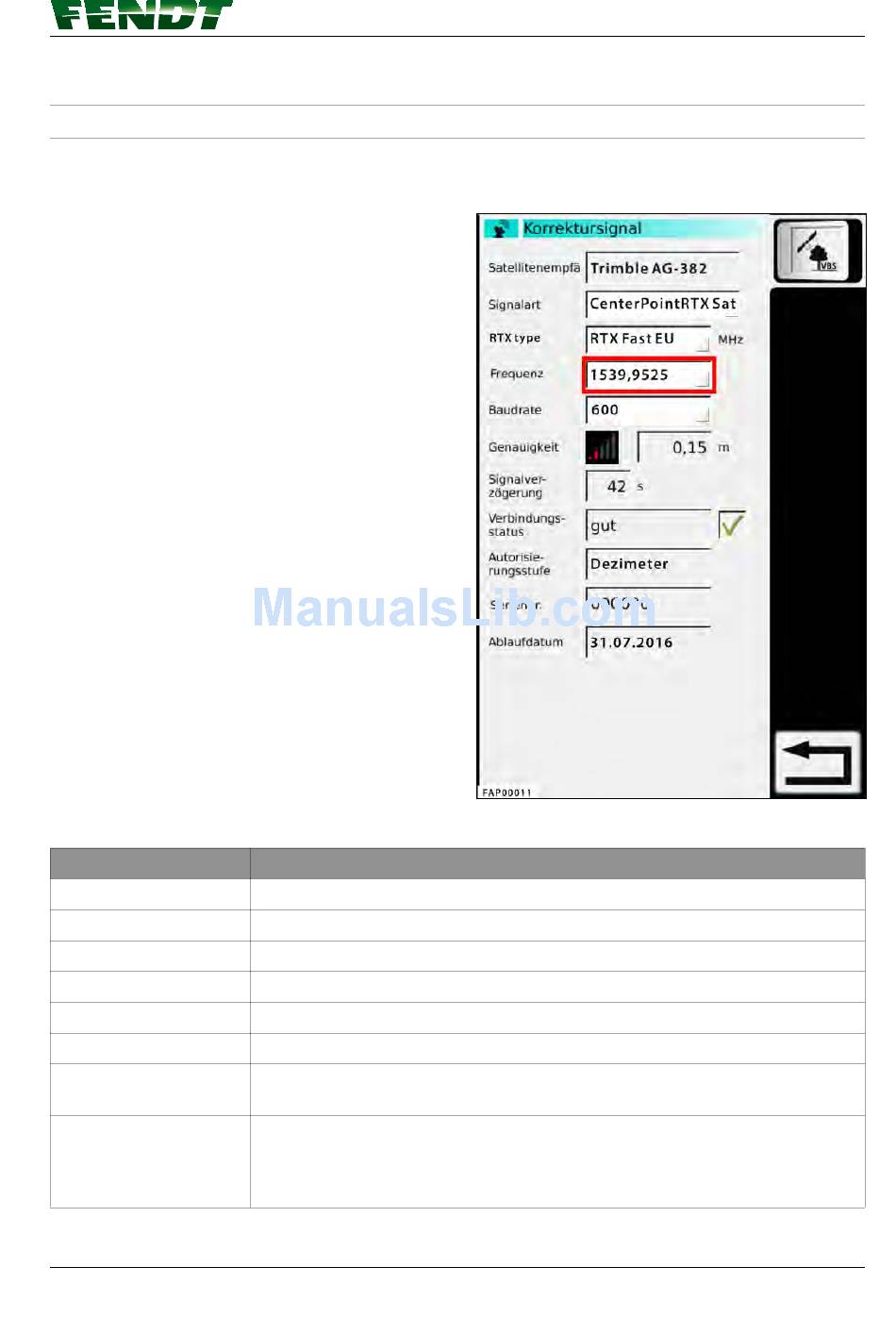

Fig. 51
