7.13 Check system

7.13.1 Check system info/system status

NOTE:
To activate automatic way line guidance, a way
line must be created and a green tick displayed in
every system info box.

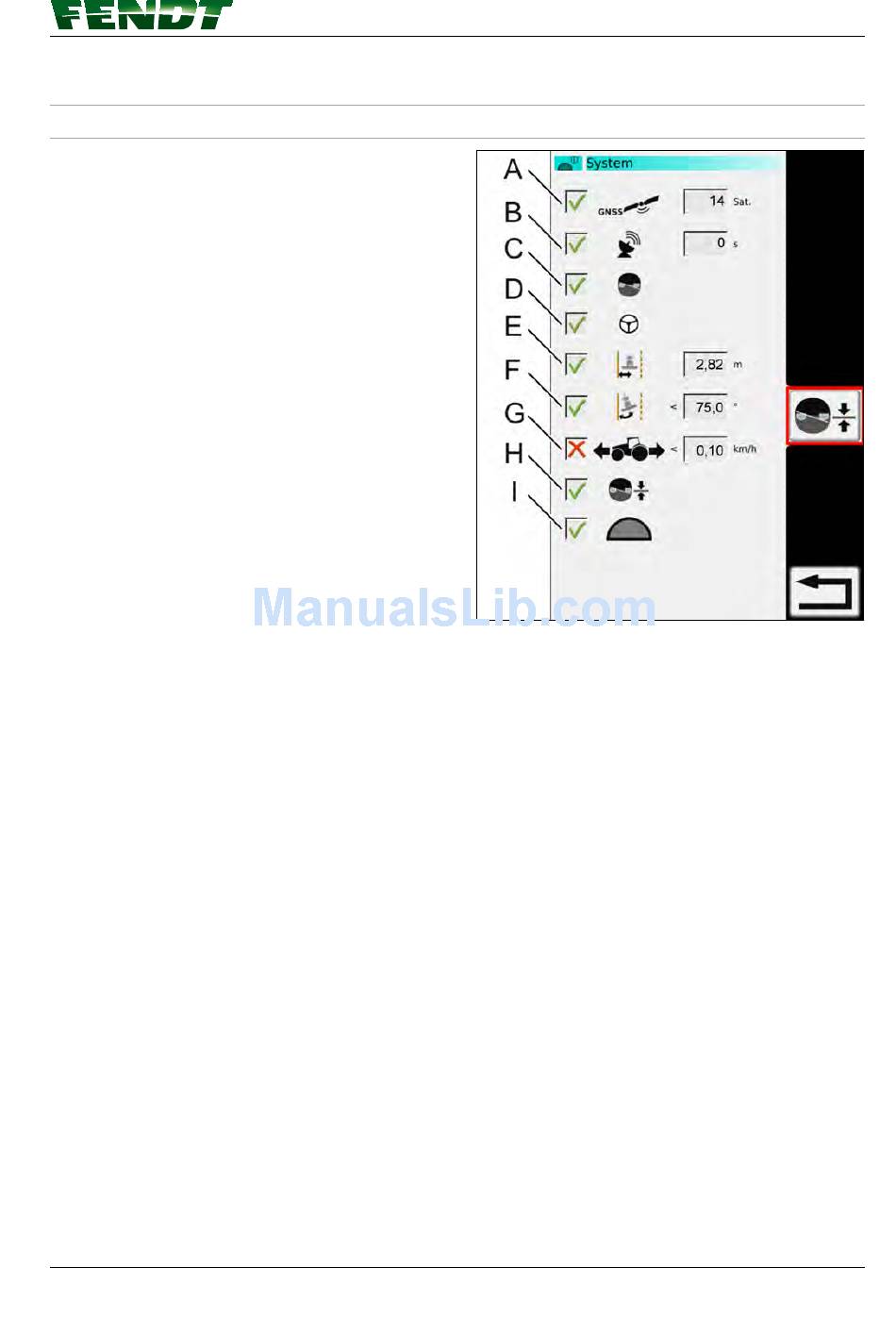

(A)
GNSS position: The green tick will appear
whenever a valid GNSS position has been
successfully determined from the GNSS data
and the correction signal data. The number
of GNSS satellites is also displayed.
(B) Correction signal: The green tick will appear
whenever a correction signal can be
received. In addition, you will see the time in
s taken to receive the correction signal
update. If 999 is shown here, the correction
signal cannot be currently updated or
received.
(C)
Gyro compass initialisation: The green tick
will appear once initialisation has been
successful. Whenever the receiver has been
switched on, a short distance exceeding 1.5
km/h must be driven to initialise the gyro
compass (see Note below).
(D)
Steering system: The green tick will appear
whenever the self-test was successful. The
EHL is ready for operation and can be pre-
activated (button (K) on the MFA).
(E) Distance to wayline: The distance to the
wayline must be less than 10 m.
(F) Joining angle to wayline: The wayline
joining angle must be less than 75°.
(G) Speed: The speed must be between 0.1 km/
h and 25 km/h.
NOTE:
If the system info is requested while
stationary, a cross appears here.
(H)
Gyro compass calibration: The green tick
will appear whenever the self-test of the
gyro compass was successful.
(I) GNSS receiver: The green tick will appear
whenever the self-test was successful.
