6.1 Calibrations

6.1.1 Calibrate steering angle sensor and steering valve

WARNING:
Hazard from automatic deflection of the front wheels Risk of injury and death! Material
damage is possible. During calibration check that there are no people or objects within
the steering area!
NOTE:
The steering angle sensor and steering valve must be calibrated before being used for the first time and
whenever the E-box is replaced.
NOTE:
It is recommended that the steering angle sensor and steering valve are calibrated when:
• The tractor does not drive straight along the way-lines
• Other steering problems (e.g. tractor begins to sway) occur
NOTE:
If required, calibrate the front axle suspension (please speak to your Fendt dealer).
Calibrating the steering angle sensor (2401)
NOTE:
To operate the automatic track guidance, it is essential that the steering angle sensor is calibrated.
Proceed as follows:
• Operate the hand brake.
• Start engine.

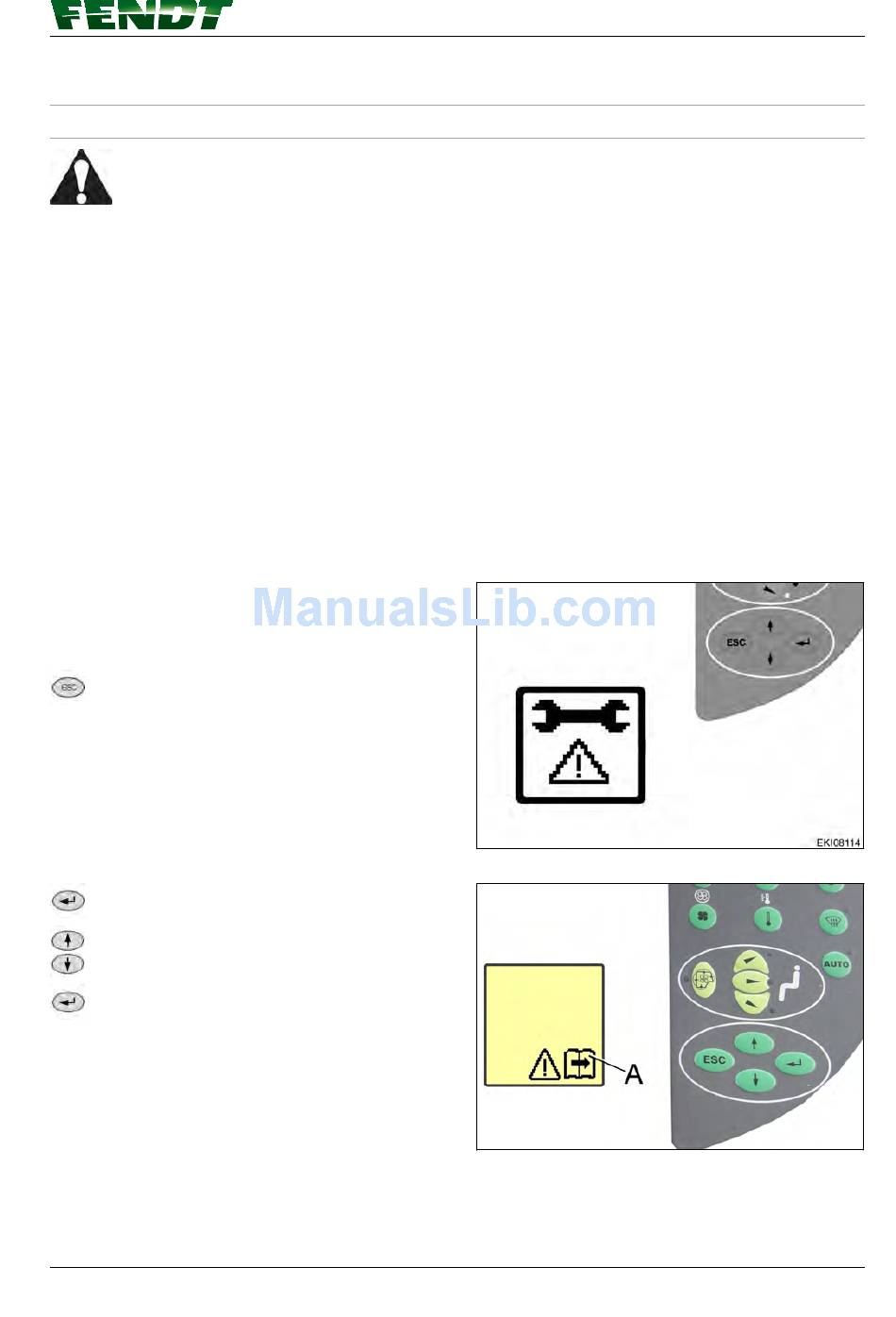

Confirm the warning and fault messages
displayed on the instrument panel with ESC.
Press RETURN; the first main menu level
appears on the multiple display.
Press one of the buttons repeatedly until
symbol (A) flashes.
Press RETURN; the second main menu level
appears on the multiple display.
VarioGuide
438.020.070.012
6. VarioGuide components and calibrations
Fig. 1
Fig. 2
55
