7. Start-up

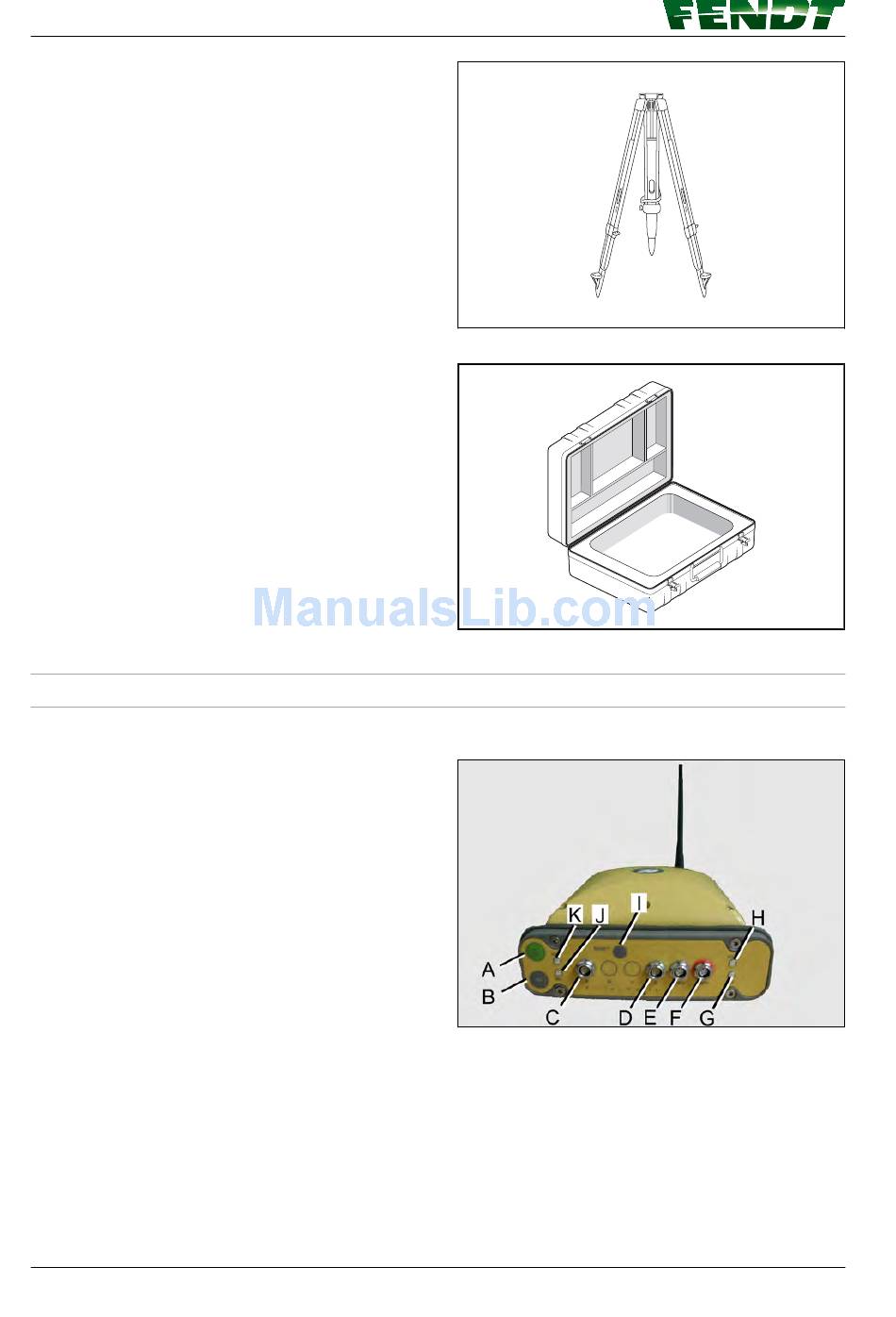

Tripod
Carrying case

7.17.3 LED and keys on the base station

Base station with radio module
(A) ON/OFF button
(B) Function button
(C) RS 232 communication interface A
(D) RS 232 communication interface D
(E) USB communication interface
(F) Current supply connector Input: Operation:
6-28 VDC; Load: 9-28 VDC (power
consumption < 2A)
Modem status LED
(G)
(H) Battery status LED
(I) Reset button
(J) Recording status LED
Implement status LED
(K)
136
Fig. 105
Fig. 106
Fig. 107
VarioGuide
438.020.070.012
