Functions and displays

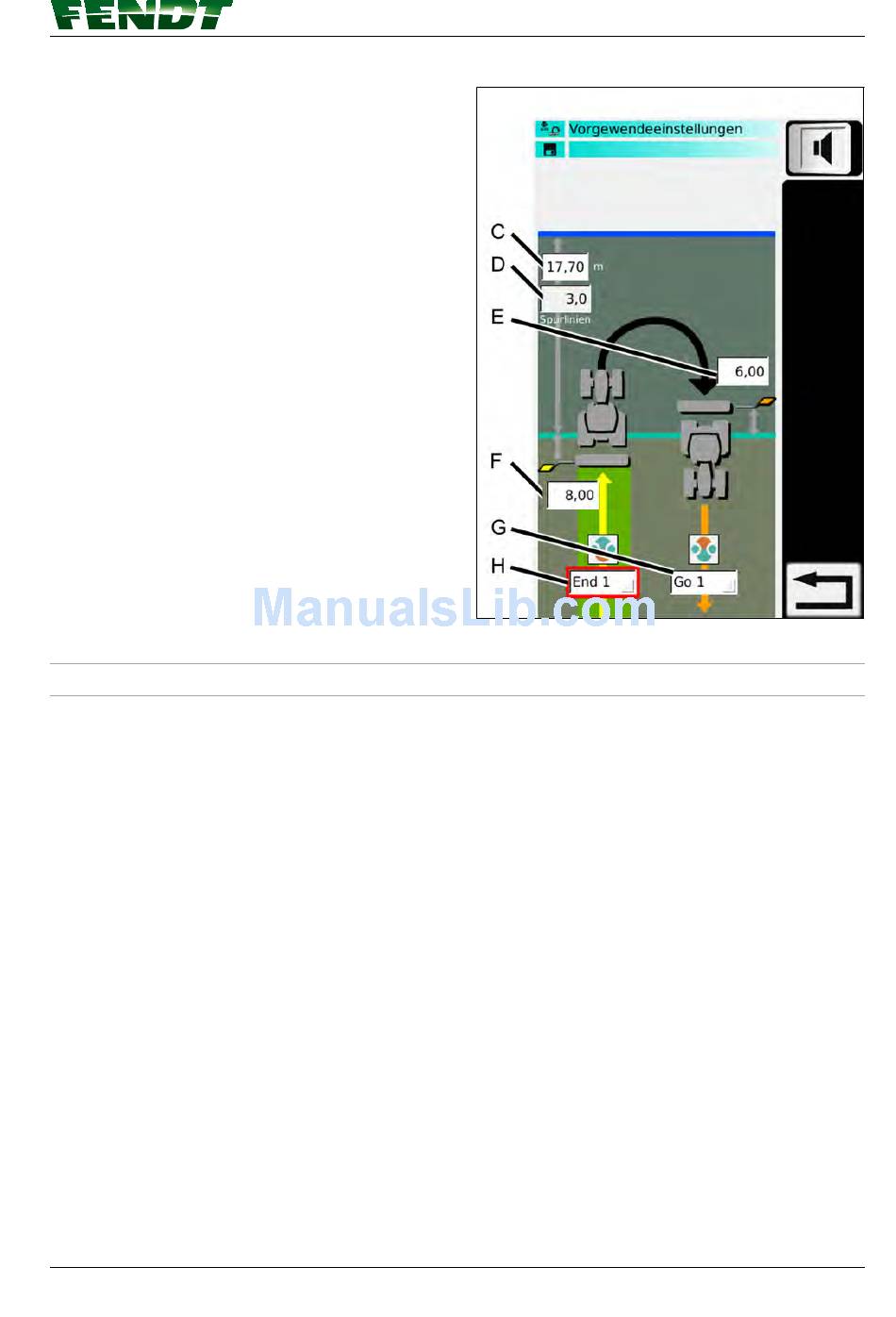

(C) Headland length in meters
(D) Calculated number of headland way-lines,
dependent on the way-line distance (no
setting!)
(E) Setting (in meters) for "Driving into the field":
Distance to the headland boundary, where
the AutoTI/headland alarm is triggered
(F) Setting (in meters) for "Driving out of the
field": Distance to the headland boundary,
where the AutoTI/headland alarm is triggered
(G) Select the TeachIn sequence for "Driving into
the field"
(H) Select the TeachIn sequence for "Driving out
of the field"
Here, the:
• Length of the headland,
• Desired TI sequence,
• Position at which the TI sequence or headland
alarm is triggered is set.
NOTE:
Set before entering the values for the headland,
the working width and the way line distance.

7.16.2 Headland management TI/AutoTI

NOTE:
Due to satellite drift, a field boundary recording and therefore the headland management/AutoTI
are only expedient from decimetre (DM) accuracy or with RTK (CM) accuracy.
VarioGuide
438.020.070.012
Fig. 93
7. Start-up
131
