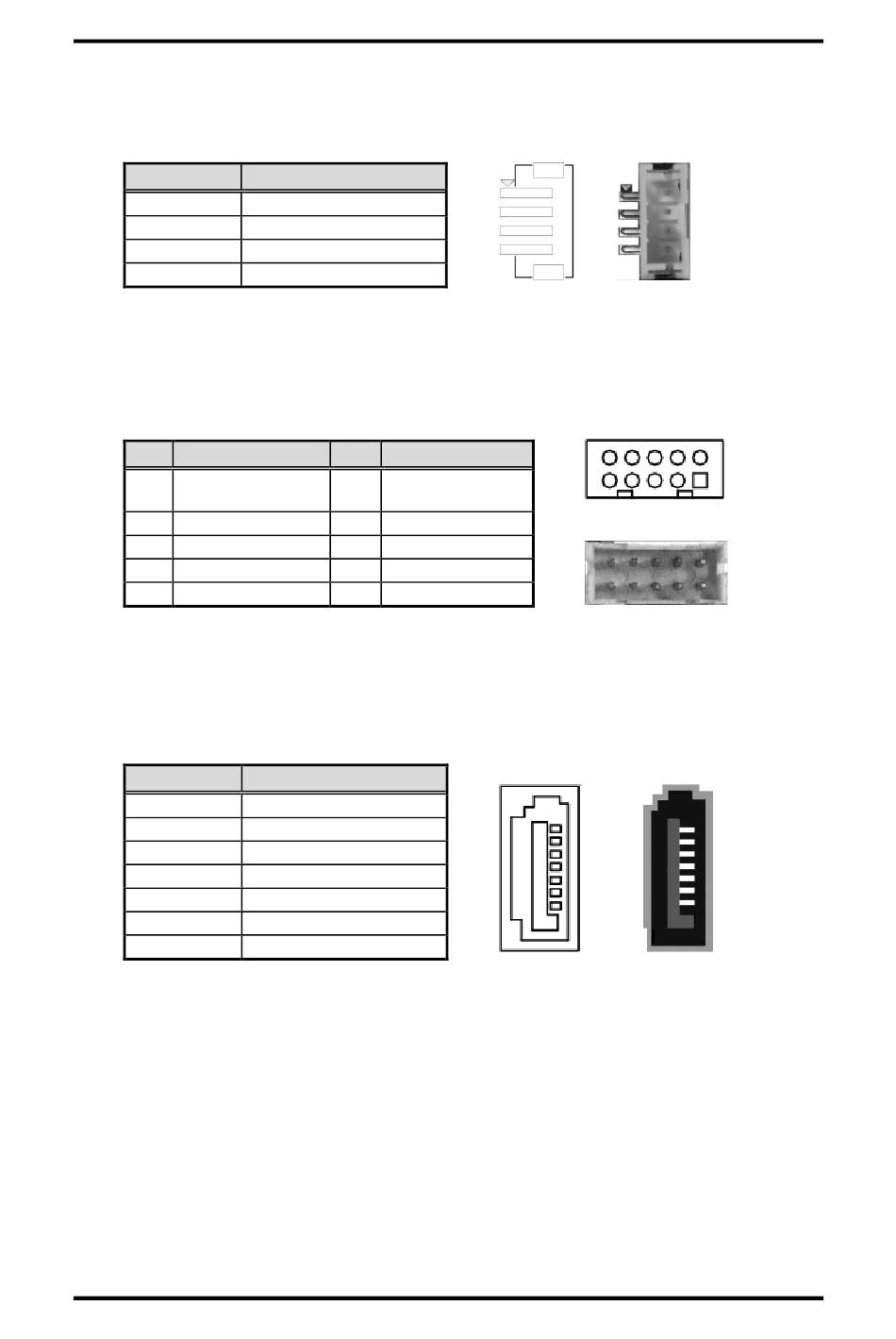

SATA Power Connector (CN9)

This is a 4-pin (pitch=2mm) wafer connector, which is compliant with JST B4B-PH-K-S,
for SATA power interface.
Pin
1
2
3
4
2.4.8

USB 2.0 Wafer Connector (CN10)

This is a 2x5-pin (pitch=2mm) wafer connector, which is compliant with Hirose
DF11-xdp-2dsa, for installing versatile USB 2.0 compliant interface peripherals.
Pin Signal
USB VCC
1
(+5V_SBY)
3 USB #5_D-
5 USB #5_D+
7 GND
9 GND
2.4.9

SATA Connector (CN11)

The CN11 is a high-speed Serial Advanced Technology Attachment (Serial ATA or SATA)
interface for connecting to devices such as hard disk drive.
Pin
1
2
3
4
5
6
7
14
Signal
+12V
GND
GND
+5V
Pin Signal
USB VCC
2
(+5V_SBY)
4 USB #6_D-
6 USB #6_D+
8 GND
10 GND
Signal
GND
SATA_TXP0
SATA_TXN0
GND
SATA_RXN0
SATA_RXP0
GND
9 1
7
1
