LANCOM ES-2126+ und LANCOM ES-2126P
Chapter 4: Operation of Web- based Management
4.17

Security

Function Description: Mirror Configuration is to monitor the traffic of the
104

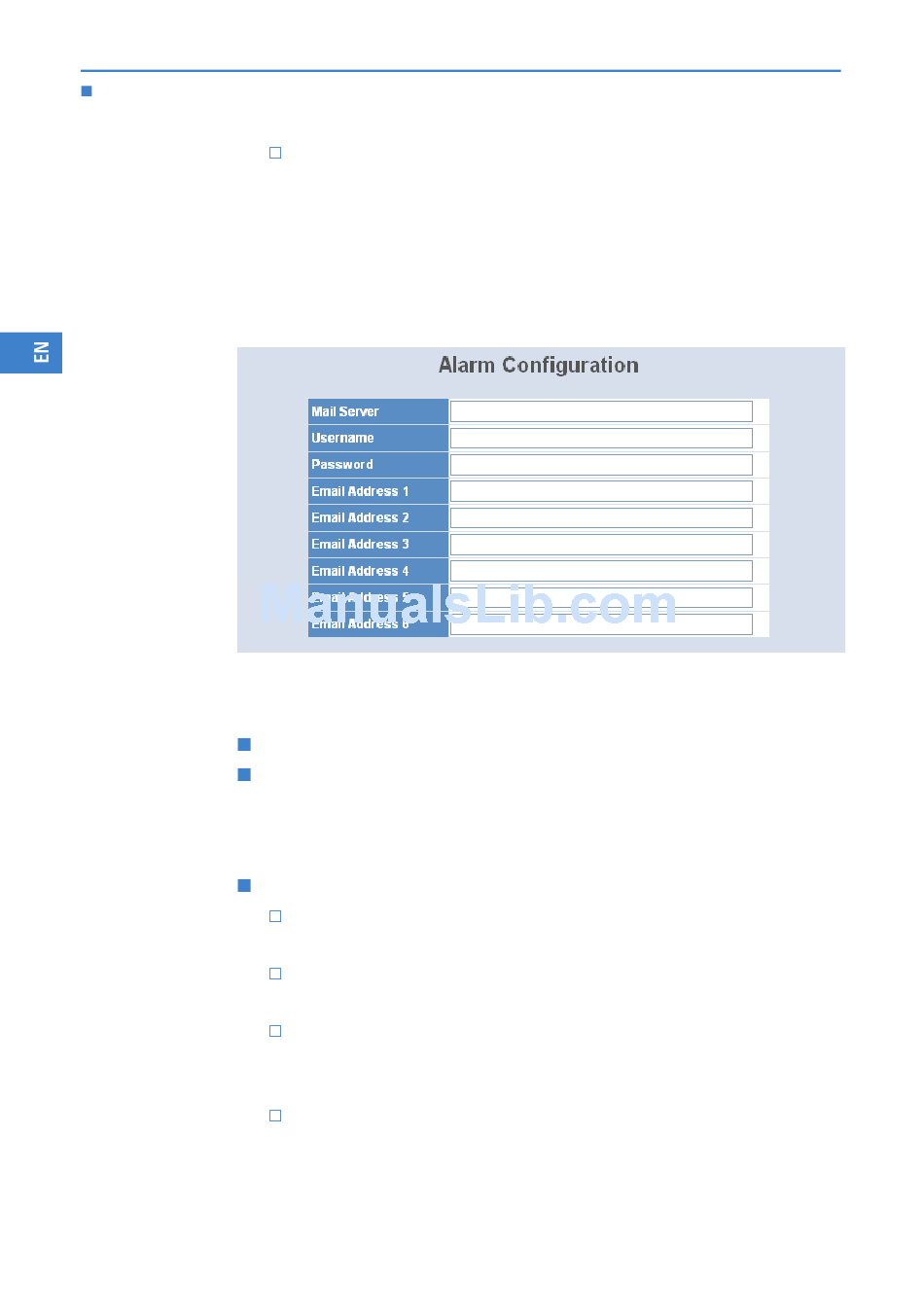

Email:
Mail Server: the IP address of the server transferring your email.
Username: your username on the mail server.
Password: your password on the mail server.
Email Address 1 – 6: email address that would like to receive the
alarm message.
Function name: Mirror Configuration
network. For example, we assume that Port A and Port B are Monitoring
Port and Monitored Port respectively, thus, the traffic received by Port B
will be copied to Port A for monitoring.
Parameter Description:
Mode: Used for the activation or de-activation of Port Mirror function.
Default is disable.
Monitoring Port: Set up the port for monitoring. Valid port is Port
1~26 and default is Port 1.
Monitored Ingress Port: Set up the port for being monitored. It only
monitor the packets received by the port you set up. Just tick the check
box (ž) beside the port x and valid port is Port 1~26.
Monitored Egress Port: Set up the port for being monitored. It only
monitor the packets transmitted by the port you set up. Just tick the
check box (ž) beside the port x and valid port is Port 1~26.
