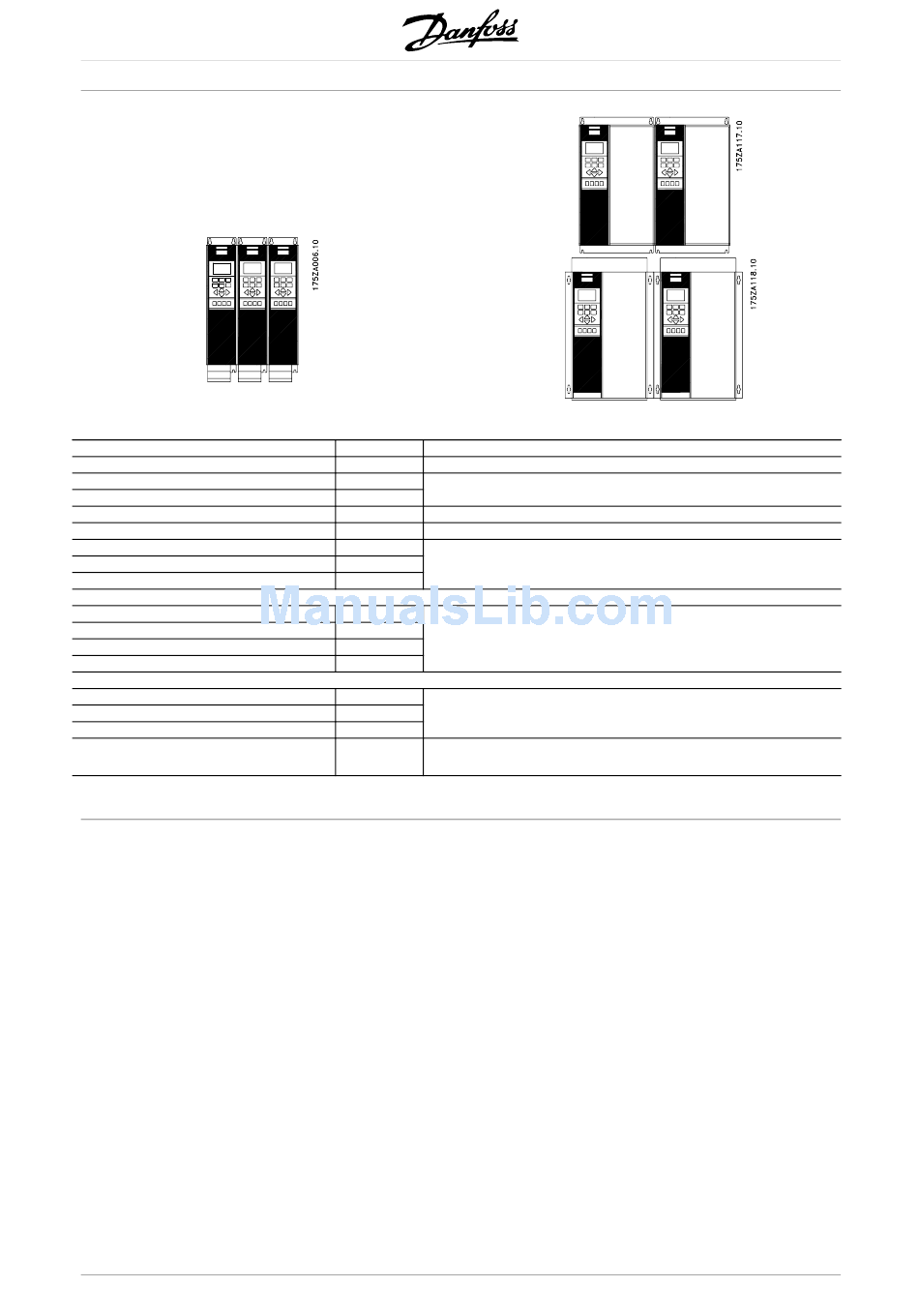

Side by side/flange by flange
All frequency converters can be mounted side
by side/flange by flange.
Bookstyle
VLT 6002-6005, 200-240 V
VLT 6002-6011, 380-460 V
Compact (all enclosure types)
VLT 6002-6005, 200-240 V
VLT 6002-6011, 380-460 V
VLT 6002-6011, 525-600 V
VLT 6006-6032, 200-240 V
VLT 6016-6072, 380-460 V
VLT 6102-6122, 380-460 V
VLT 6016-6072, 525-600 V
VLT 6042-6062, 200-240 V
VLT 6102-6402, 525-600 V
VLT 6152-6352, 380-460 V
VLT 6402-6602, 380-460 V
VLT 6502-6652, 525-600 V
46
d [mm] Comments
100
Installation on a plane, vertical surface (no spacers)
100
100
100 Installation on a plane, vertical surface (no spacers)
100
200
200
Installation on a plane, vertical surface (no spacers)
225
200
225
Installation on a plane, vertical surface (no spacers)
225
IP 54 filter mats must be changed when they are dirty.
225
225 IP 00 above and below enclosure.
IP 21/IP 54 only above enclosure.
