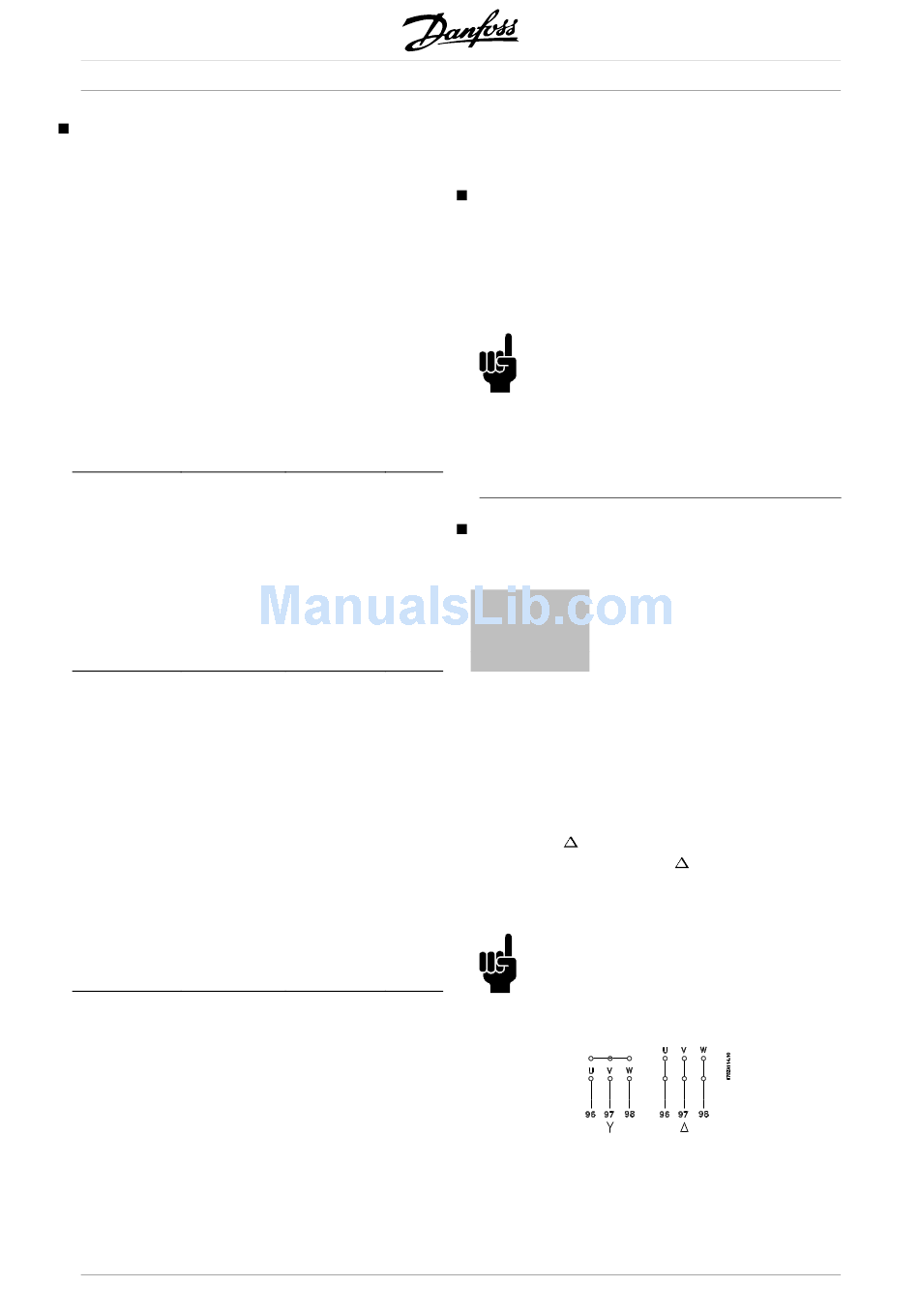

Tightening-up torque and screw sizes

The table shows the torque required when fitting
terminals to the frequency converter. For VLT
6002-6032, 200-240 V, VLT 6002-6122, 380-460 and
VLT 6002-6072 525-600 V the cables must be fastened
with screws. For VLT 6042-6062, 200-240 V and
for VLT 6152-6550, 380-460 V and VLT 6102-6652,
525-600 V the cables must be fastened with bolts.
These figures apply to the following terminals:
Mains terminals (Nos.)
Motor terminals (Nos.)
Earth terminal (Nos.)
VLT type Tightening-up
3 x 200 - 240 V torque
VLT 6002-6005 0.5-0.6 Nm
VLT 6006-6011 1.8 Nm (IP 20)
VLT 6006-6016 1.8 Nm (IP 54)
VLT 6016-6027 3.0 Nm (IP 20)
VLT 6022-6027 3.0 Nm (IP 54)
VLT 6032 6.0 Nm
VLT 6042-6062 11.3 Nm
VLT type Tightening-up
3 x 380-460 V torque
VLT 6002-6011 0.5-0.6 Nm
VLT 6016-6027 1.8 Nm (IP 20)
VLT 6016-6032 1.8 Nm (IP 54)
VLT 6032-6052 3.0 Nm (IP 20)
VLT 6042-6052 3.0 Nm (IP 54)
VLT 6062-6072 6.0 Nm
VLT 6102-6122 15 Nm (IP 20)
24 Nm (IP 54)
VLT 6152-6352 19 Nm
VLT 6402-6602 19 Nm
9.5 Nm
VLT type Tightening-up
3 x 525-600 V torque
VLT 6002-6011 0.5-0.6 Nm
VLT 6016-6027 1.8 Nm
VLT 6032-6042 3.0 Nm
VLT 6052-6072 6.0 Nm
VLT 6102-6402 19 Nm
VLT 6502-6652 19 Nm
9.5 Nm
1. Loadsharing terminals 14 Nm/M6, 5 mm Allen key
2. IP 54 units with RFI filter line terminals 6 Nm
3. Allen screws (hexagon)
64
91, 92, 93
L1, L2, L3
96, 97, 98
U, V, W
94, 95, 99
Screw/bolt Tool
size
M3
M4
M4
3)
M5 4 mm
2) 3)
M5 4 mm
3)
M6 5 mm
M8 (bolt)
Screw/bolt Tool
size
M3
M4
M4
3)
M5 4 mm
2) 3)
M5 4 mm
3)
M6 5 mm
3)
M8 6 mm
1) 3)
8 mm
4) 5)
M10 (bolt) 16 mm
M10 16 mm
(compression
5)
lug)
5)
M8 (box lug) 13 mm
Screw/bolt Tool
size
M3
M4
2) 3)
M5 4 mm
3)
M6 5 mm
4) 5)
M10 (bolt) 16 mm
M10 16 mm
(compression
5)
lug)
5)
M8 (box lug) 13 mm
®
VLT 6000 HVAC Series
4. Loadsharing terminals 9.5 Nm/M8 (bolt)
5. Wrench

Mains connection

Mains must be connected to terminals 91, 92, 93.
Mains voltage 3 x 200-240 V
91, 92, 93 Mains voltage 3 x 380-460 V
L1, L2, L3 Mains voltage 3 x 525-600 V
NB!:
Check that the mains voltage fits the mains
voltage of the frequency converter, which
can be seen from the nameplate.
See Technical data for correct sizing of cable
cross-sections.

Motor connection

The motor must be connected to terminals 96,
97, 98. Earth to terminal 94/95/99.
Nos.
96. 97. 98 Motor voltage 0-100 % of mains voltage
U, V, W
No. 94/95/99 Earth connection
See Technical data for correct sizing of cable
cross-sections.
All types of three-phase asynchronous standard motors
can be used with a VLT 6000 HVAC unit.
Small-size motors are normally star-connected.
(220/380 V, /Y). Large-size motors are
delta-connected (380/660 V,
connection and voltage can be read from
the motor nameplate.
NB!:
In older motors without phase coil
insulation, a LC filter should be fitted to
the frequency converter output. See the
Design Guide or contact Danfoss.
