Front Panel LEDs

The NetGuardian's front panel LEDs indicate communication and alarm reporting status. LED status messages
are described below.
LED
Craft
Config
Alarm
D-Wire
LAN ACT
LAN LNK
T1 ACT
T1 LNK
Serial

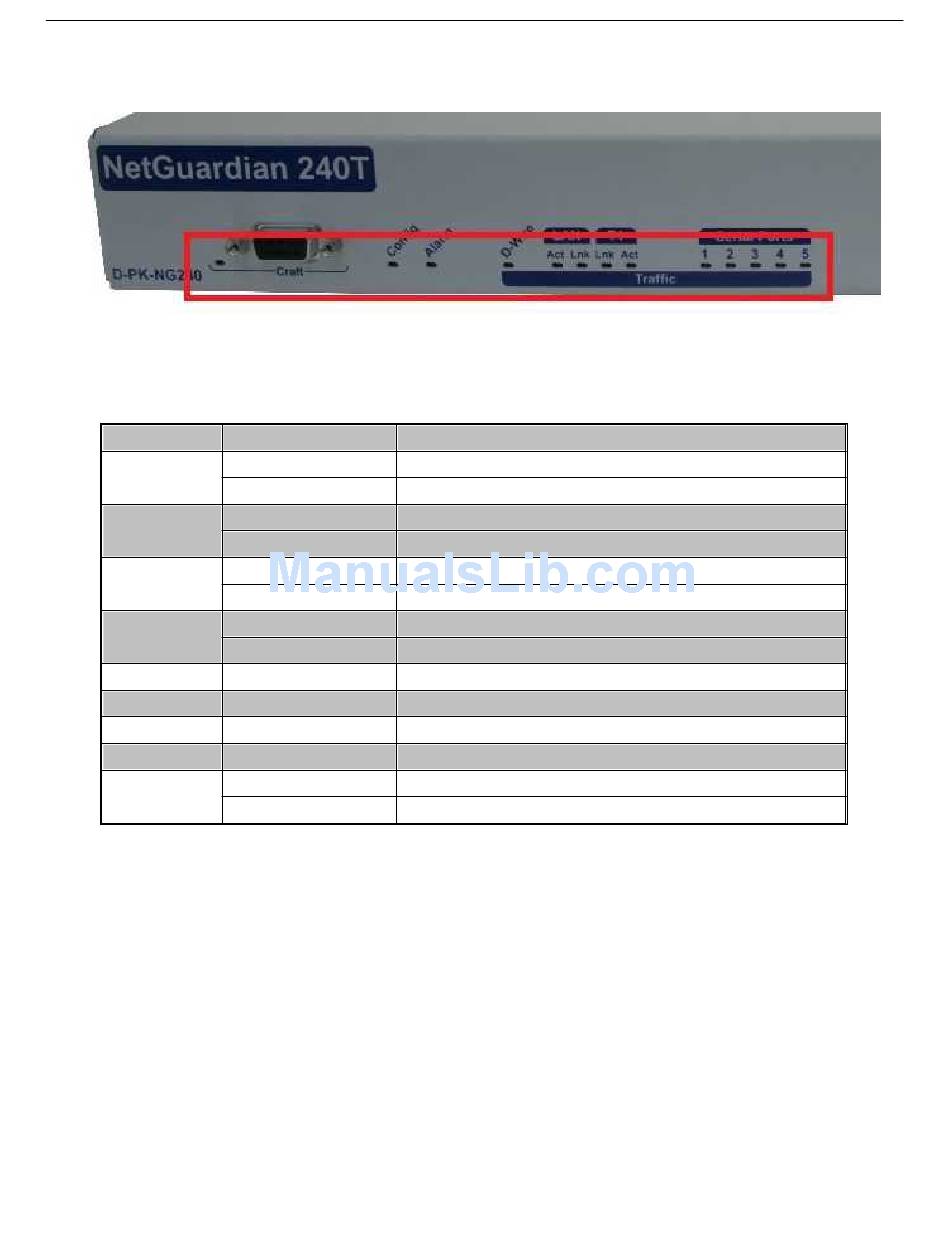

Front panel LEDs
Status Description
Blink Green Transmit over craft port
Blink Red Receive over craft port
Blink Green Valid Configuration
Blink Red Invalid Configuration
Blink Red New COS alarm*
Solid Red One or more standing alarms*
Blink Green Transmit over D-Wire
Blink Red Receive over D-Wire
Blink Green Transmit and receive activity over LAN
Blink Green LAN connected
Blink Green Transmit and receive activity over T1
Blink Green T1 connected
Blink Green Transmit over serial port
Blink Red Receive over serial port
*NO TE: Alarm must be configured for notification to be reflected in LED
Front panel LED Status message descriptions
