D-Wire Sensor Inputs

The port on your NetGuardian labeled D-Wire supports up to 16 D-Wire sensors. Your NetGuardian powers
and communicates with your D-Wire sensors via simple RJ-11 connection.
The max cable length depends on the number of sensors daisy chained together. The cable lengths and
corresponding number of sensors can be seen in the table below.
Number of Nodes
1
2
3
4
5
6
7
8
Note: The DPS Temperature and Humidity Sensor, DPS part number D-PK-DSNSR-12002, occupies two nodes.

6.7.1 Connecting to D-Wire Sensors

Using a standard 6P4C, straight-through RJ-11 cable (part number D-PR-045-10A-01, pinout below),
connect the D-Wire port on the NetGuardian to the In jack on the D-Wire Sensor. Chain additional sensors to the
D-Wire sensor (using the same straight-through cables) from the Out jack on the previous sensor to the In jack on
the next (i.e. Out on sensor 4 to In on sensor 5).
For details about configuring your sensors through the web interface see the Sensors section of this web browser
user manual.
Maximum Cable Lengths
Spec'd Max (ft)
600
600
600
600
600
600
600
600
Maximum Cable Lengths

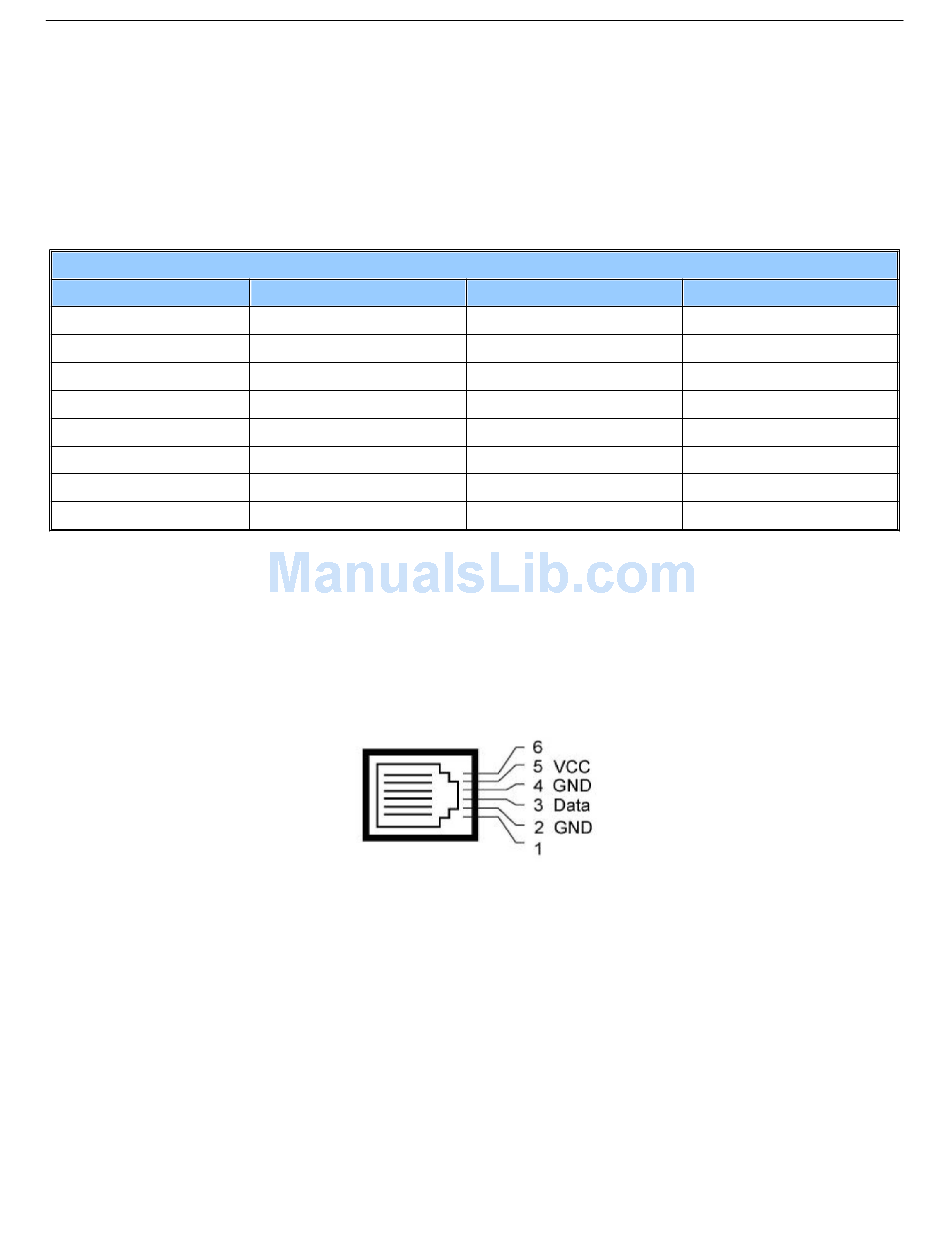

Pinout for the NetGuardian and D-Wire Sensor RJ-11 jacks
Number of Nodes
9
10
11
12
13
14
15
16
Spec'd Max (ft)
600
600
600
600
600
600
600
600
