Serial Ports - DPS Telecom NetGuardian 240T Hardware User Manual

6.8

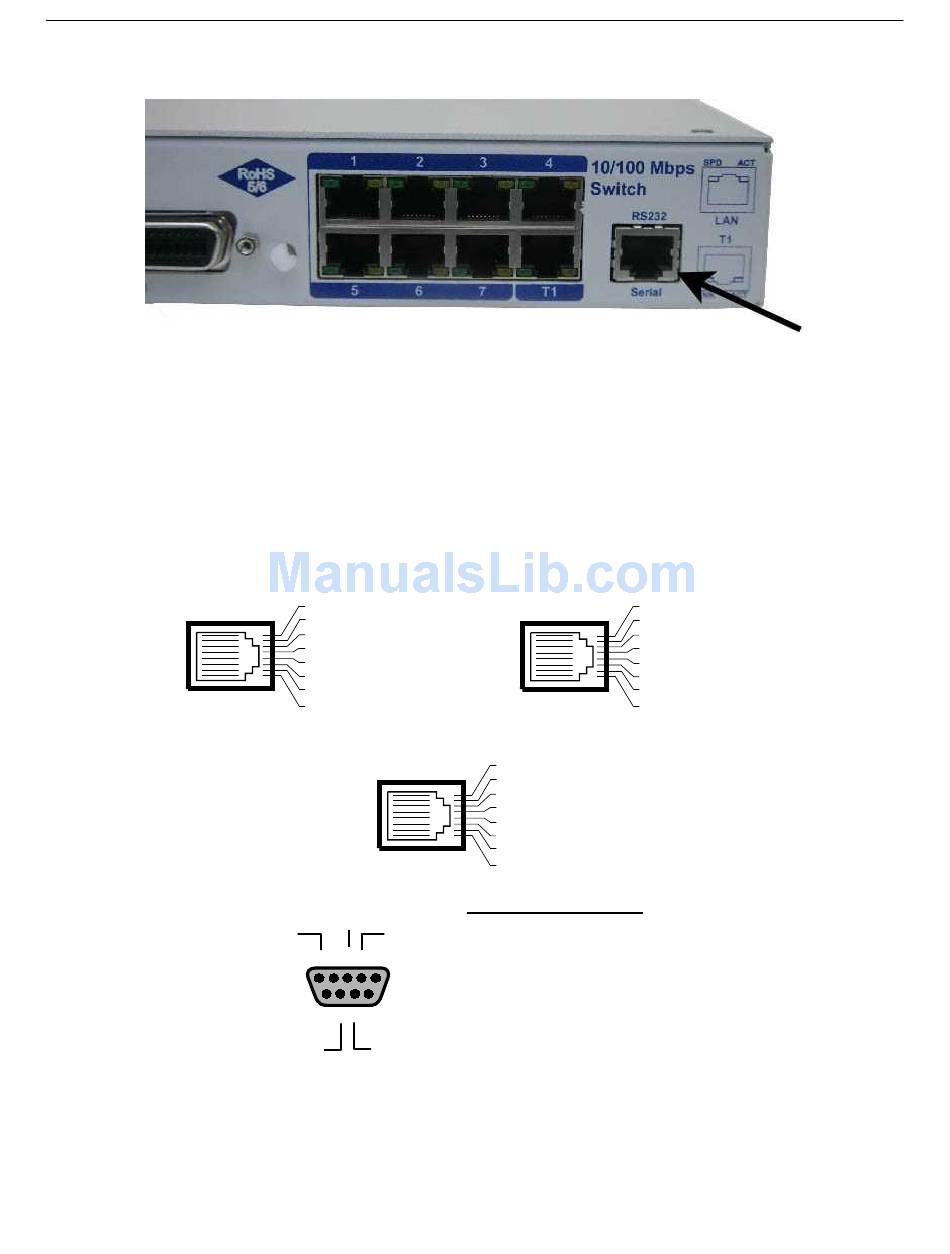

Serial Ports

The NetGuardian's server port provides reach-through terminal server functionality for connecting multiple
simultaneous users to external equipment via Telnet over LAN. This port can function as a proxy connection to an
external device, a craft port, a channel port, a TCP or UDP reach-through port. The NetGuardian can support
simultaneous proxy connections for up to 5 users.
Note: If connecting a NetGuardian DX to the NetGuardian 240T, use cable# D-PR-1032-10B-08 to connect the
serial port to DX IN port of the expansion unit.
Yost RS-232 RJ45 Connector
NetGuardian data ports can be configured for Yost RS-232 or RS-485.These data ports are available as optional
builds on NetGuardian hardware units (Call DPS Sales for more information @ 1-800-693-0351).
Data port arrangement on the NetGuardian 240T
8 RTS (Request to Send)
7 DTR (Data Terminal Ready)
6 TXD (Transmit Data)
5 GND (Ground)
4 GND (Ground)
3 RXD (Receive Data)
2 DSR (Data Set Ready)
1 CTS (Clear to Send)
Yost 4-Wire 202 Connector
DB9 RS-232
RX
TX
GND
5 4 3 2 1
9 8 7 6
RTS CTS
Data port pinouts
Yost RS-485 RJ45 Connector
8 TX- (Transmit -)
7 N/C (Not Connected)
6 RX- (Receive -)
5 GND (Ground)
4 GND (Ground)
3 RX+ (Receive +)
2 N/C (Not Connected)
1 TX+ (Transmit +)
8 TX+ (Transmit +)
7 N/C (Not Connected)
6 RX- (Receive -)
5 GND (Ground)
4 GND (Ground)
3 RX+ (Receive +)
2 N/C (Not Connected)
1 TX- (Transmit -)
Pin # Signal Description
1 Not connected
2 TX Tr ans m it data
3 RX Recieve Data
4
Not connected
5 GND Gr ound
6 Not connected
7
CTS Clear to s end
8 Reques t to s end
RTS
9 Not connected
15
