7.6. DISASSEMBLING THE SAFETY SWITCH

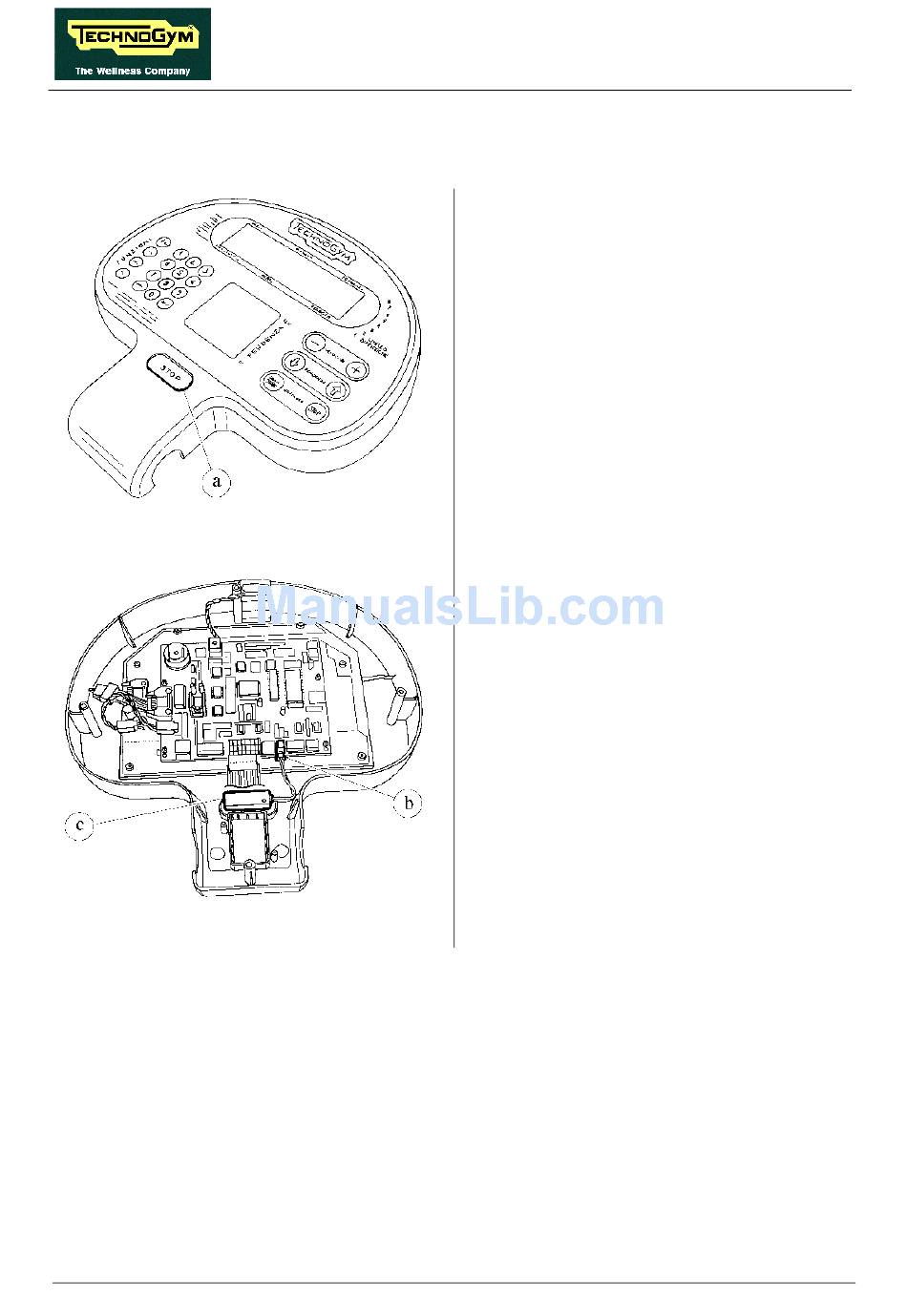

Figure 7.6-1
Figure 7.6-2
Page 7.6
FORMA: Service & Maintenance manual - rev. 3.0
Carry out the procedure described in paragraph
7.1. "Disassembling the display".
With the display placed on a work bench:
1. Lift up the sticker a situated underneath the
"Safety switch";
2. Using a medium phillips screwdriver, back
off the 2 screws under the sticker.
3. Unplug connector b of cable RL-17.
4. Remove the SAFETY SWITCH c.
To reassemble the SAFETY SWITCH, carry out
the above steps in reverse order.
