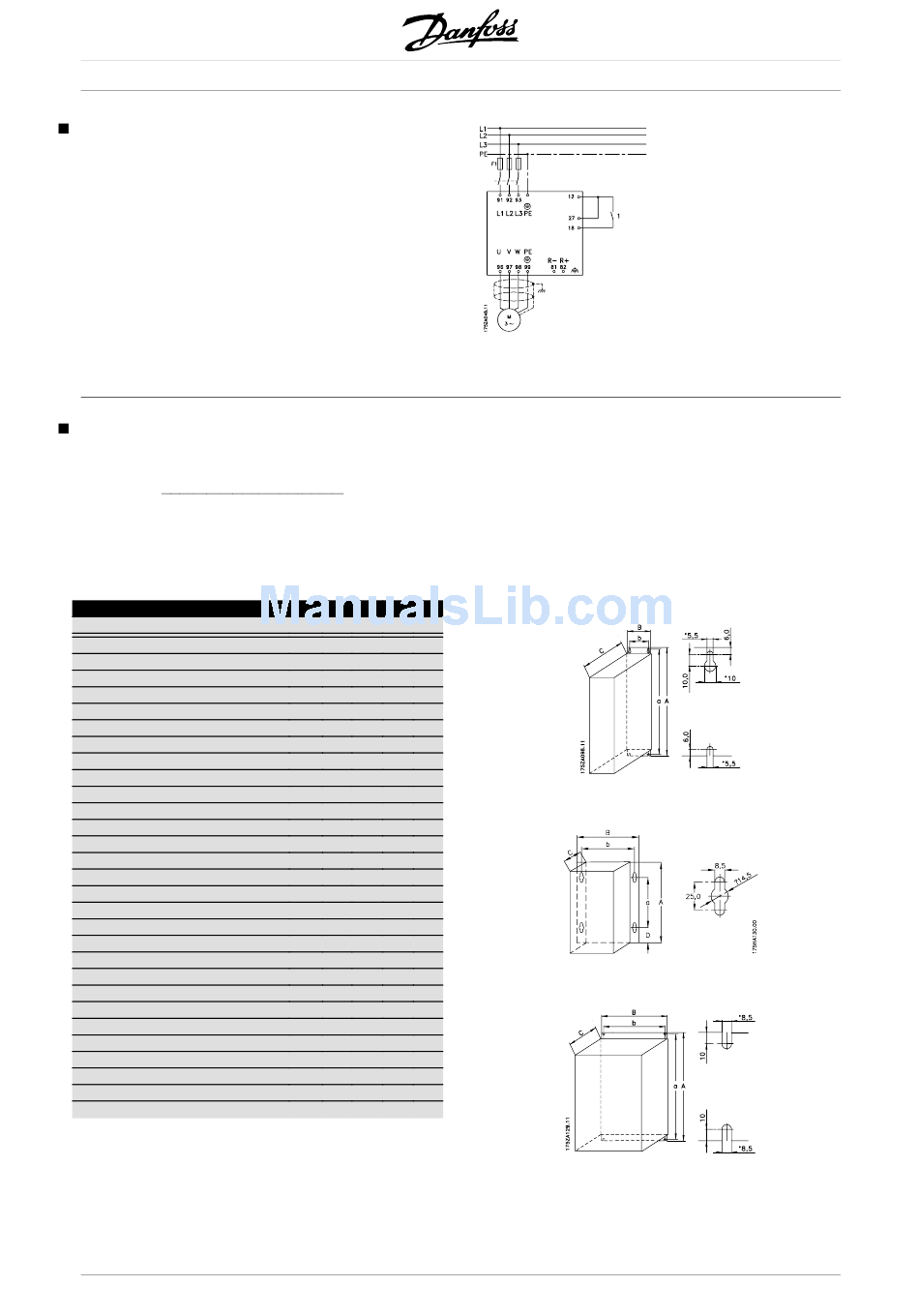

Introduction to Quick Setup
This Quick Setup will guide you through EMC correct
installation of the frequency converter by connecting
power, motor and control wiring (fig. 1). Start/stop
of motor is to be done with the switch.
For VLT 5122 - 5552 380 - 500 V, VLT 5032 - 5052
200 - 240 V AC and VLT 5042-5602, 525-690 V,
please refer to Technical data and Installation regarding
mechanical and electrical installation.
1. Mechanical Installation
VLT 5000 frequency converters allow side-by-side mounting. The necessary cooling demands a free air
passage of 100 mm above and below the frequency converter (5016-5062 380-500 V, 5008-5027 200-240
V and 5016-5062 525-600 V must have 200 mm, 5072-5102, 380-500 V 225 mm).
Drill all holes by using the measurements stated in the table. Please note the difference in unit voltage. Place
the frequency converter on the wall. Tighten up all four screws.
All the below listed measurements are in mm
VLT type
Bookstyle IP 20, 200–240 V, (Fig. 2)
5001 - 5003
5004 - 5006
Bookstyle IP 20, 380–500 V (Fig. 2)
5001 - 5005
5006 - 5011
Compact IP 54, 200–240 V (Fig. 3)
5001 - 5003
5004 - 5006
5008 - 5011
5016 - 5027
Compact IP 54, 380–500 V (Fig. 3)
5001 - 5005
5006 - 5011
5016 - 5027
5032 - 5062
5072 - 5102
Compact IP 20, 200–240 V (Fig. 4)
5001 - 5003
5004 - 5006
5008
5011 - 5016
5022 - 5027
Compact IP 20, 380–500 V (Fig. 4)
5001 - 5005
5006 - 5011
5016 - 5022
5027 - 5032
5042 - 5062
5072 - 5102
6
A B C a b
395 90 260 384 70
395 130 260 384 70
395 90 260 384 70
395 130 260 384 70
460 282 195 260 258
530 282 195 330 258
810 350 280 560 326
940 400 280 690 375
460 282 195 260 258
530 282 195 330 258
810 350 280 560 326
940 400 280 690 375
940 400 360 690 375
395 220 160 384 200
395 220 200 384 200
560 242 260 540 200
700 242 260 680 200
800 308 296 780 270
395 220 160 384 200
395 220 200 384 200
560 242 260 540 200
700 242 260 680 200
800 308 296 780 270
800 370 335 780 330
®
VLT 5000 Series
Fig. 1
Fig. 2
Fig. 3
Fig. 4
