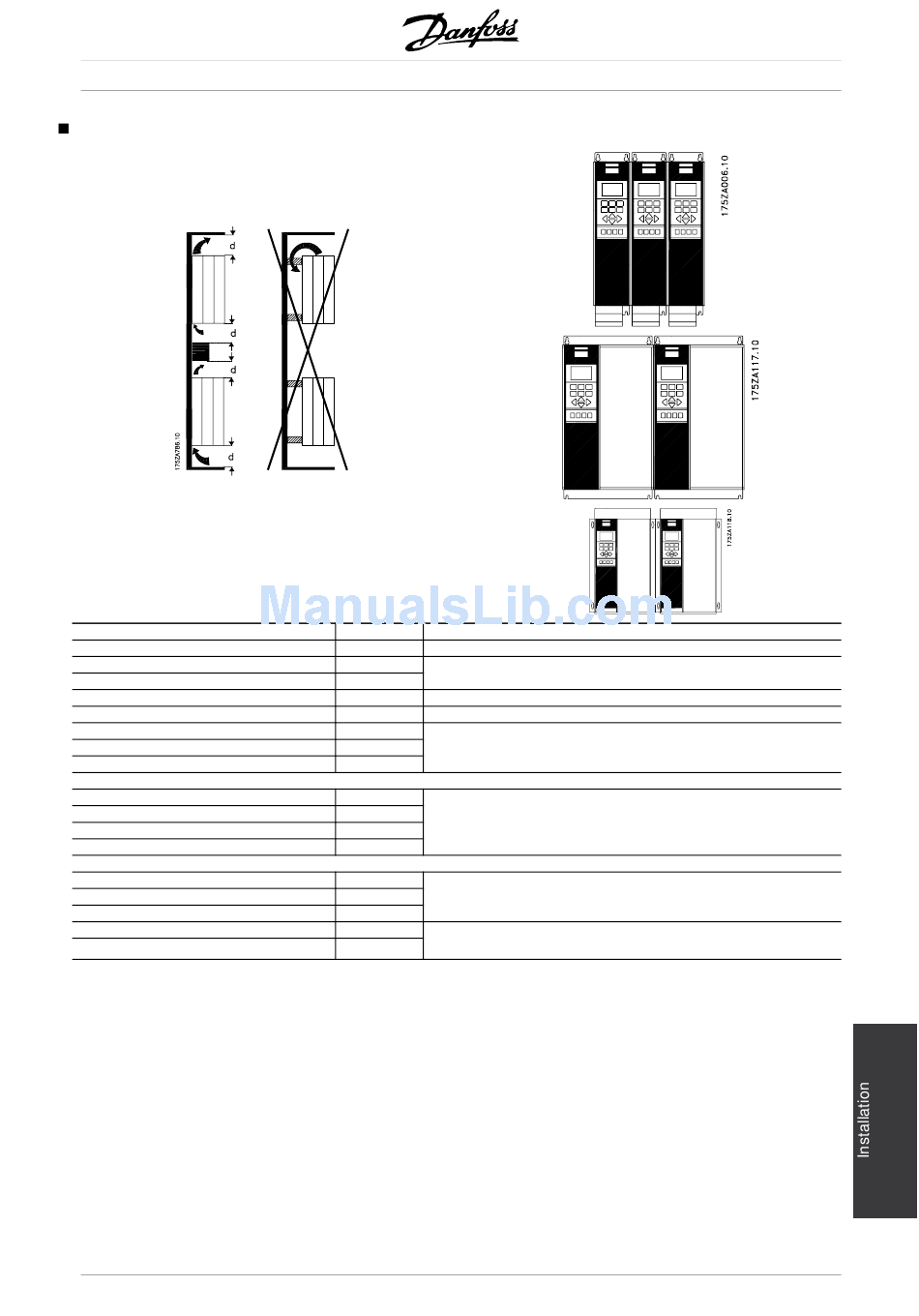

Installation of VLT 5001-5602
All frequency converters must be installed in a
way that ensures proper cooling.
Cooling
All Bookstyle and Compact units require a minimum
space above and below the enclosure.
Side by side/flange by flange
All frequency converters can be mounted side
by side/flange by flange.
Bookstyle
VLT 5001-5006, 200-240 V
VLT 5001-5011, 380-500 V
Compact (all enclosure types)
VLT 5001-5006, 200-240 V
VLT 5001-5011, 380-500 V
VLT 5001-5011, 525-600 V
VLT 5008-5027, 200-240 V
VLT 5016-5062, 380-500 V
VLT 5072-5102, 380-500 V
VLT 5016-5062, 525-600 V
VLT 5032-5052, 200-240 V
VLT 5122-5302, 380-500 V
VLT 5042-5352, 525-690 V
VLT 5352-5552, 380-500 V
VLT 5402-5602, 525-690 V
MG.51.A9.02 - VLT is a registered Danfoss trademark
d [mm] Comments
100
Installation on a plane, vertical surface (no spacers)
100
100
100 Installation on a plane, vertical surface (no spacers)
100
200
200
Installation on a plane, vertical surface (no spacers)
225
200
225
Installation on a plane, vertical surface (no spacers)
225
IP 54 filter mats must be changed when they are dirty.
225
225 IP 00 above and below enclosure
225
IP 21/IP 54 only above enclosure
®
