Danfoss VLT 5000 Series Operating Instructions Manual page 9

3. Electrical installation, control leads
Use a screw driver to remove the front cover
under the control panel.
NOTE: The terminals are detachable. Connect a
jumber between terminals 12 and 27 (Fig. 10)
Mount screened cable to external start/stop of
control terminals 12 and 18.
4. Programming
The frequency converter is programmed over
the control panel.
Press the QUICK MENU button. The Quick Menu
appears in the display. You choose parameters by
means of arrow up and arrow down. Press the
CHANGE DATA button to change parameter value.
Data values are changed using the up and down
arrows. Press the left or right buttons to move the
cursor. Press OK to save your parameter setting.
Set the desired language in parameter 001. You
have six possibilities: English, German, French,
Danish, Spanish and Italian.
Set the motor parameters according to the motorplate:
Motor power
Motor voltage
Motor frequency
Motor current
Rated motor speed
5. Motor Start
Press the START button to start the motor. Set motor
speed in Parameter 003. Check if the direction of
rotations is as shown in the display. It can be changed
by swapping two phases of the motor cable.
Press the STOP button to stop the motor.
8
Parameter 102
Parameter 103
Parameter 104
Parameter 105
Parameter 106
®
VLT 5000 Series

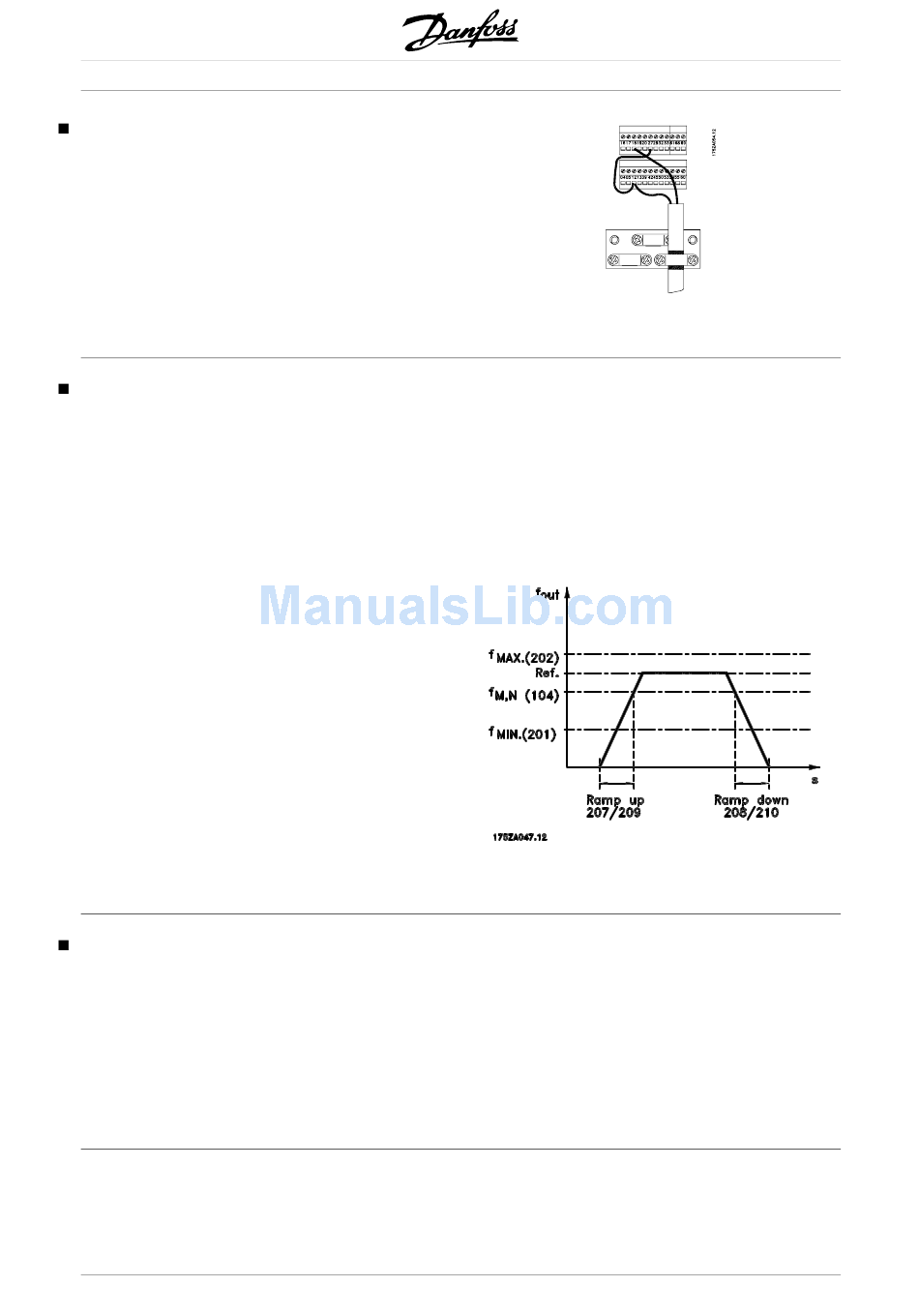

Fig. 10
Set frequency interval and ramp times (Fig. 11)
Min. reference
Max. reference
Ramp up time
Ramp down time
Set Operation site, Parameter 002 for Local.
Fig. 11
Select total or reduced Automatic Motor Adaption
(AMA) in Parameter 107. For further description of
AMA, see section Automatic Motor Adaption, AMA.
Press the START button to start the Automatic
Motor Adaption (AMA).
Press the DISPLAY/STATUS button to leave
the Quick Menu.
MG.51.A9.02 - VLT is a registered Danfoss trademark
Parameter 204
Parameter 205
Parameter 207
Parameter 208
