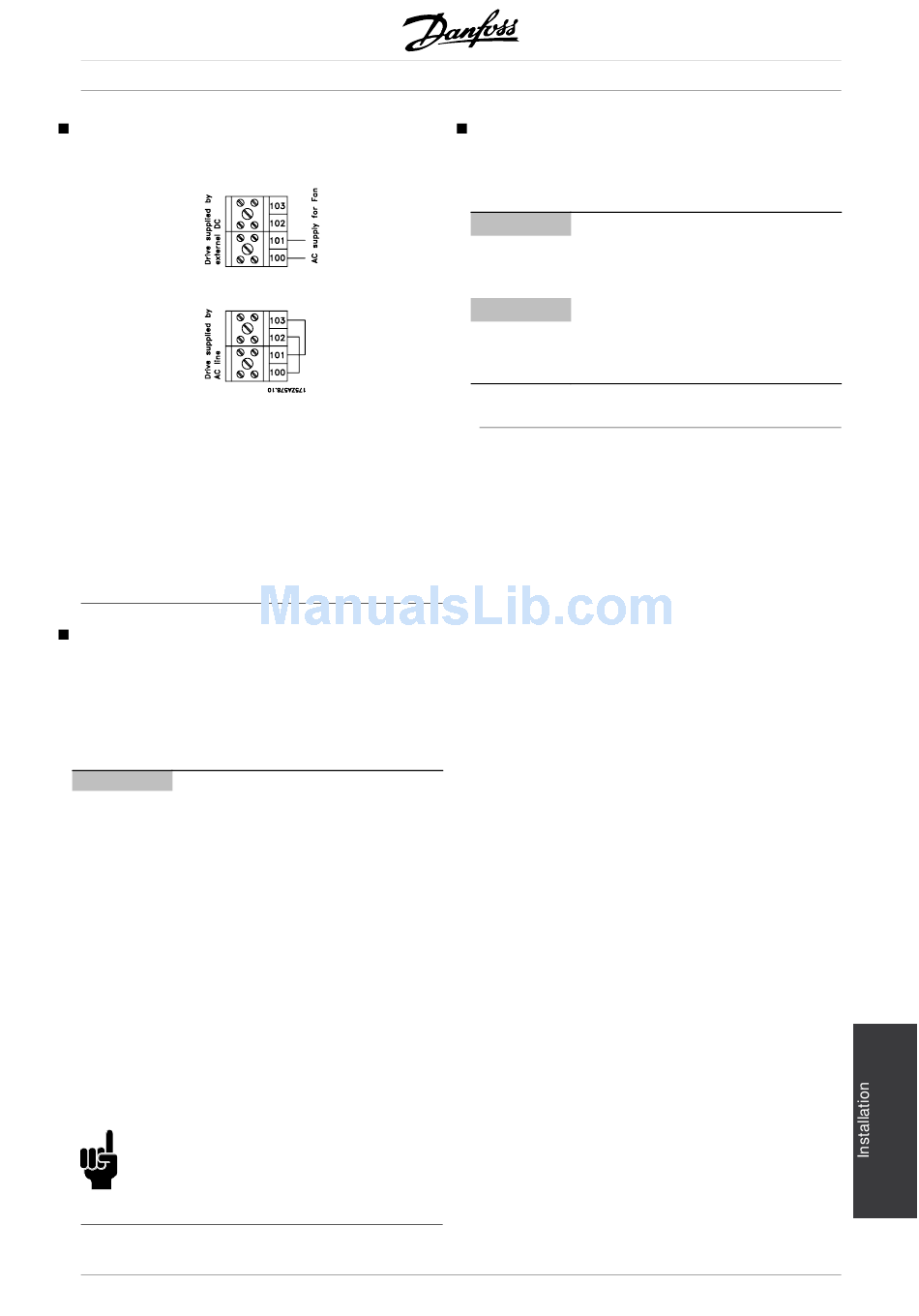

Electrical installation - external fan supply
Torque 0,5-0,6 Nm
Screwsize: M3
Available in 5122-5552, 380-500 V; 5042-5602,
525-690 V, 5032-5052, 200-240 V in all
enclosure types.
Only for IP54 units in the power range VLT 5016-5102,
380-500 V and VLT 5008-5027, 200-240 V AC. If
the drive is supplied by the DC bus (loadsharing), the
internal fans are not supplied with AC power. In this
case they must be supplied with an external AC supply.

Electrical installation - 24 Volt external DC supply

(Only extended versions. Typecode: PS, PB,
PD, PF, DE, DX, EB, EX).
Torque: 0.5 - 0.6 Nm
Screw size: M3
No. Function
35, 36 24 V external DC supply
External 24 V DC supply can be used as low-voltage
supply to the control card and any option cards
installed. This enables full operation of the LCP (incl.
parameter setting) without connection to mains.
Please note that a warning of low voltage will be
given when 24 V DC has been connected; however,
there will be no tripping. If 24 V external DC supply
is connected or switched on at the same time as
the mains supply, a time of min. 200 msec. must
be set in parameter 120 Start delay.
A pre-fuse of min. 6 Amp, slow-blow, can be
fitted to protect the external 24 V DC supply.
The power consumption is 15-50 W, depending
on the load on the control card.
NB!:
Use 24 V DC supply of type PELV to ensure
correct galvanic isolation (type PELV) on the
control terminals of the frequency converter.
MG.51.A9.02 - VLT is a registered Danfoss trademark
®
VLT 5000 Series

Electrical installation - relay outputs

Torque: 0.5 - 0.6 Nm
Screw size: M3
No. Function
1-3 Relay output, 1+3 break, 1+2 make
See parameter 323 of the Operating
Instructions. See also General
technical data.
4, 5 Relay output, 4+5 make See
parameter 326 of the Operating
Instructions.
See also General technical data.
