Proservo NMS5
Endress+Hauser

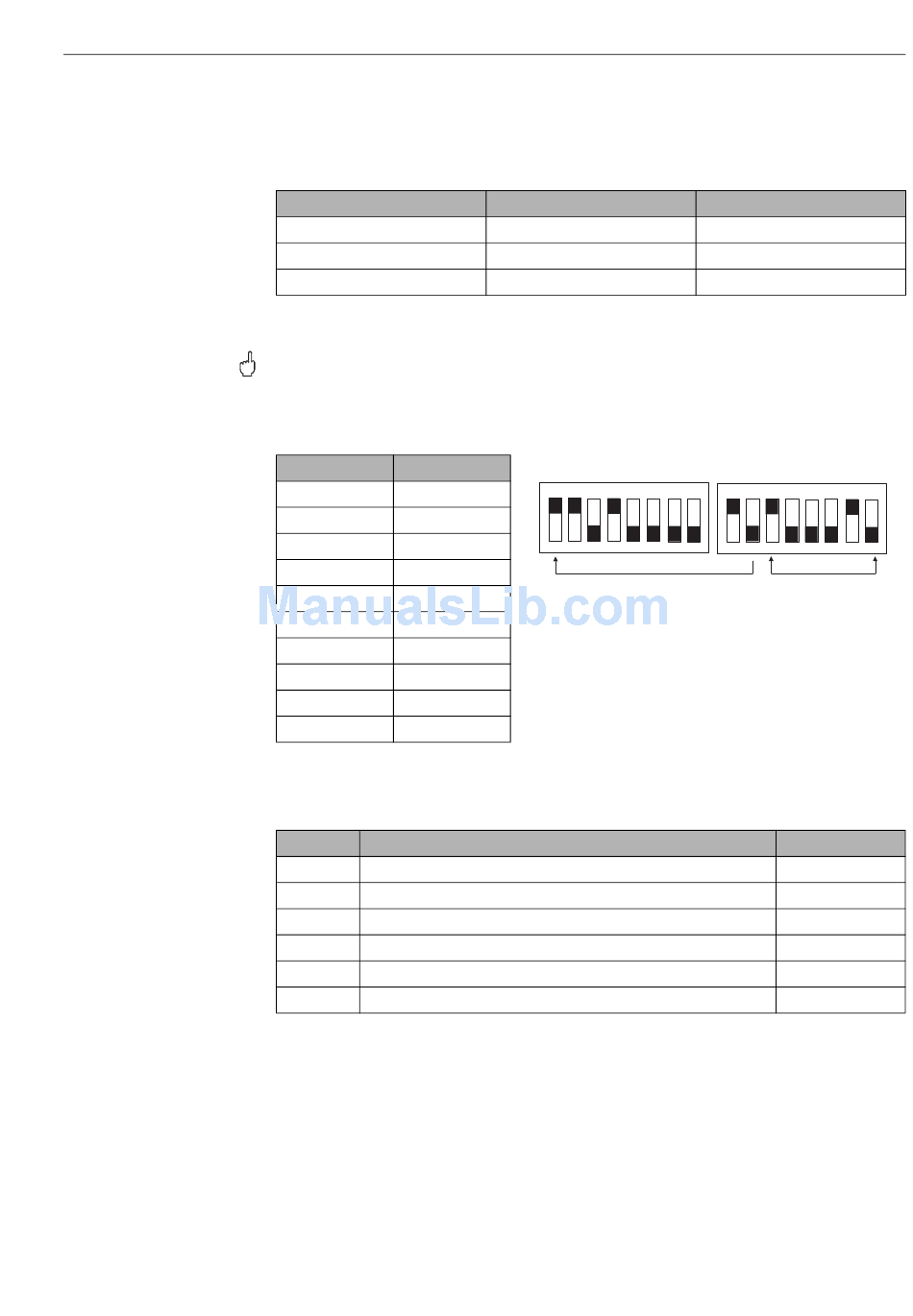

7.5.3 Mark/Space(M/S) Communication Board Setting
Jumper Setting
Jumper settings for M/S communication board
Jumper
J3 (Mode)
J3 (Reset)
J3 (WD)
Polling Address Setting
Caution!
Polling addresses are set by mechanically at SW1 (1-8) and SW2(1-2) on Mark Space communication board
(not by accessing NMS programming matrix). Check all polling addresses before setting. The following table
shows address setting.
Switch Position Value
SW1-1 1
SW1-2 2
SW1-3 4
SW1-4 8
SW1-5 16
SW1-6 32
SW1-7 64
SW1-8 128
SW2-1 256
SW2-2 512
Function Setting
Each function is set at SW2-* shown as follows.
Switch
SW2-3 ON: Data transmission under unbalanced condition
SW2-4 ON: low baud rate setting
SW2-5 ON: Feet data OR 0-20m, OFF: 0-30m
SW2-6 ON: Measured data converted to feet
SW2-7 ON: Temperature data (57 bits)
SW2-8 ON: Deg. F measured temperature unit, OFF: Deg. C
Function
Use EPROM [IC4]->short
Reset
Watch dog setting
SW - 1
ON
1 2
3 4 5 6 7
Address Setting
Setting Example (example above:267)
Function
7 Commissioning
Default condition
Short
Open
Short
SW - 2
ON
8 1 2 3 5 6
4 7
Function Setting
Default Condition
ON
OFF
OFF
OFF
ON
OFF
8
63
