Proservo NMS5
Endress+Hauser
PROSERVO NMS53
Order code
Ser. no.
Supply
Measuring range
Displacer weight
Displacer dia.
Measure wire dia.
Density range
Manufacturing date
Test date
Tester
Zero point of liquid level gauge is
under the reference point.
Only read level when indication "BAL" is present.
Ex d
IECEx KEM 09.0062
Ambient temperature:
Process temperature: -200 ∼ +200°C
Certification no.
Tank ID
XA00582G-A/08
Warning: Do not open the cover when energized.
Endress+Hauser Yamanashi Co.,Ltd.
Yamanashi 406-0846

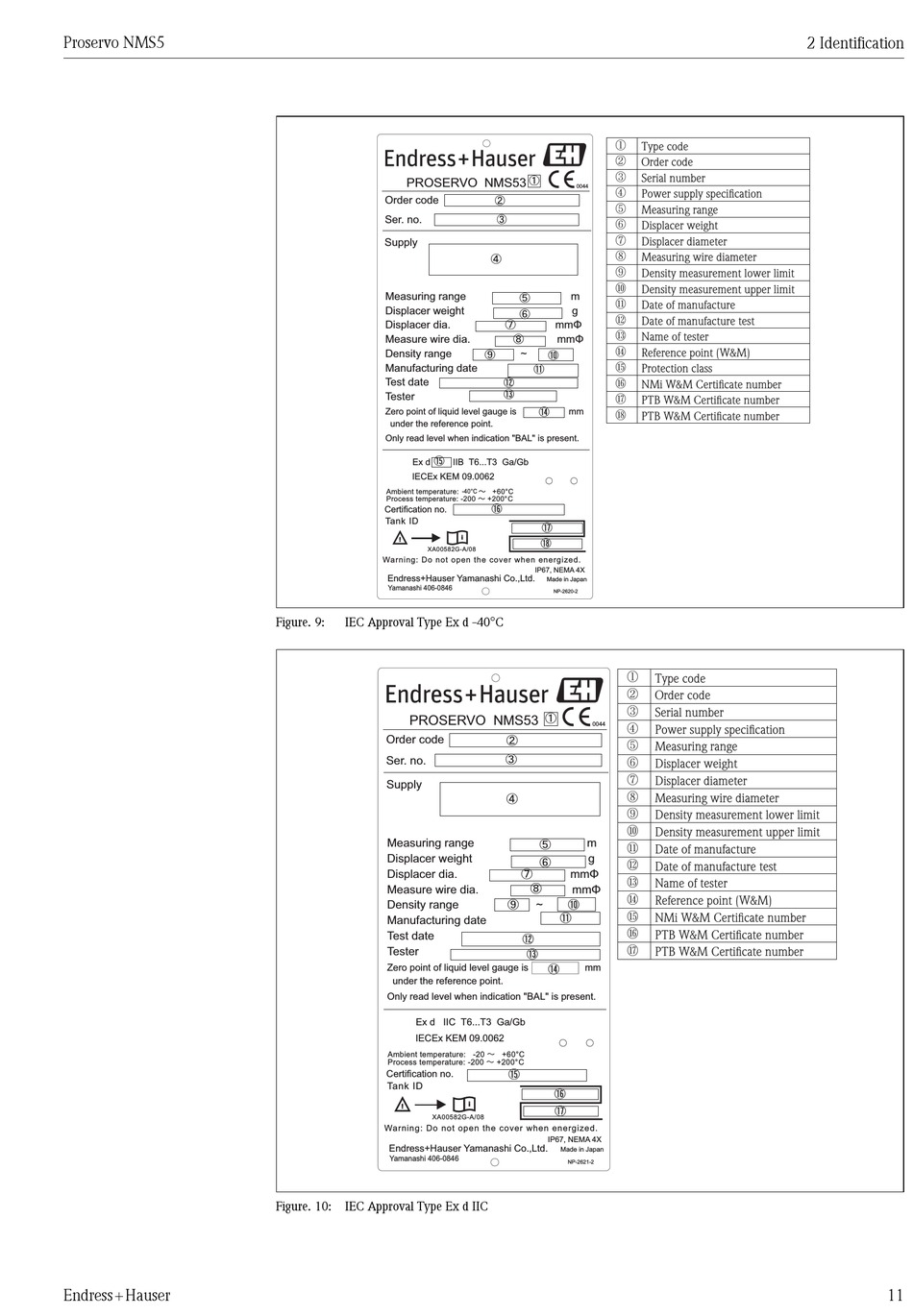

Figure. 9: IEC Approval Type Ex d -40°C
PROSERVO NMS53
Order code
Ser. no.
Supply
Measuring range
Displacer weight
Displacer dia.
Measure wire dia.
Density range
Manufacturing date
Test date
Tester
Zero point of liquid level gauge is
under the reference point.
Only read level when indication "BAL" is present.
Ex d IIC T6...T3 Ga/Gb
IECEx KEM 09.0062
Ambient temperature: -20 ∼ +60°C
Process temperature: -200 ∼ +200°C
Certification no.
Tank ID
XA00582G-A/08
Warning: Do not open the cover when energized.
Endress+Hauser Yamanashi Co.,Ltd.
Yamanashi 406-0846
Figure. 10: IEC Approval Type Ex d IIC
0044
m
g
mm
mm
~
mm
IIB T6...T3 Ga/Gb
-40°C ∼ +60°C
IP67, NEMA 4X
Made in Japan
NP-2620-2
0044
m
g
mm
mm
~
mm
IP67, NEMA 4X
Made in Japan
NP-2621-2
2 Identification
Type code
Order code
Serial number
Measuring range
Type code
Order code
Serial number
Measuring range
11
