6.5

Operation of Displacer

The operation of the displacer for level, bottom level, interface level, and density measurement is possible by
touch control.
Item
OPERATION OPERATION

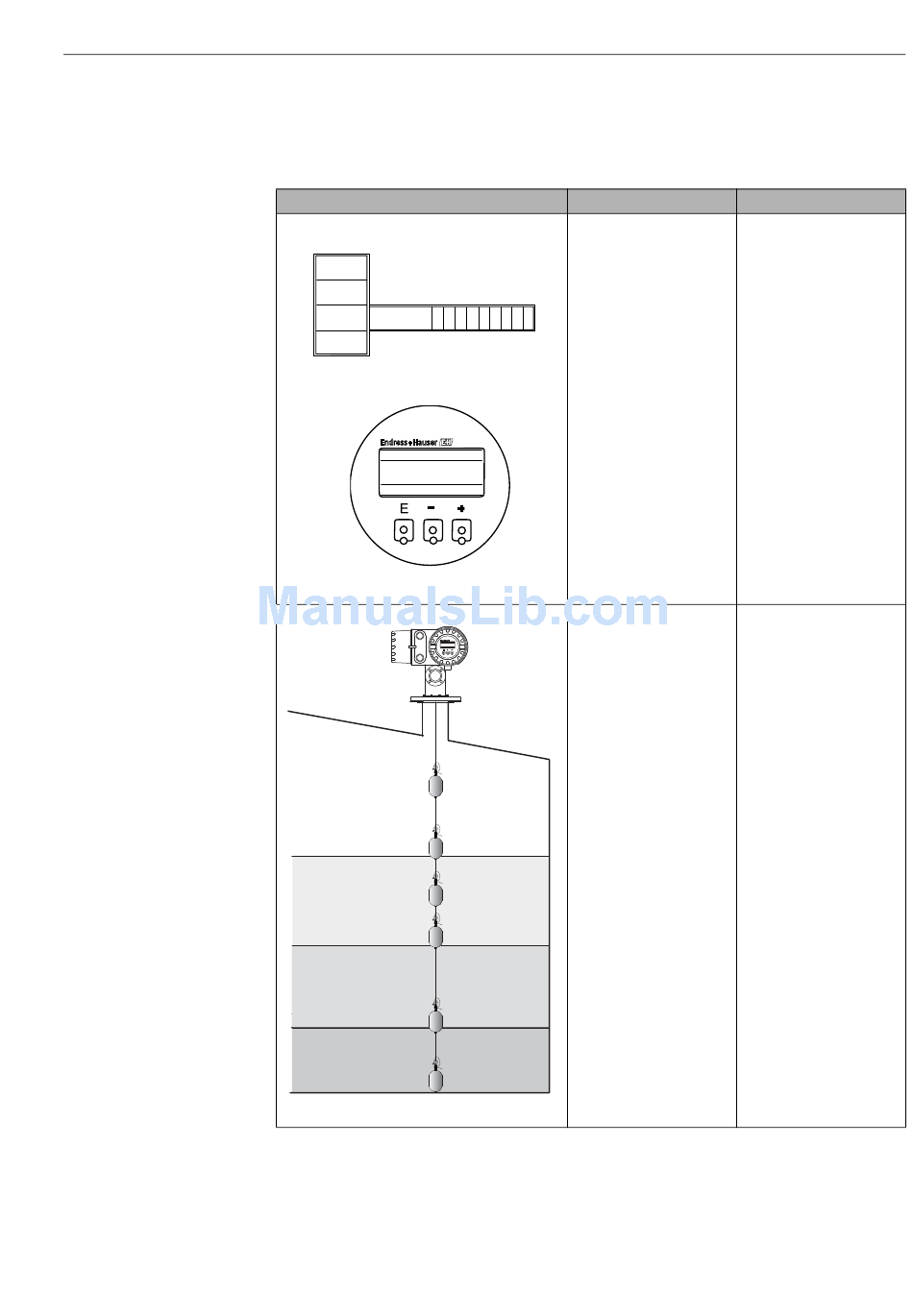

Figure. 53: Static Matrix
Figure. 54: Touch Control
Upper Density
Middle Density
Water
Dip
Density Bottom
Figure. 55: Operation of Displacer
1. Select function
groupGVH=020
OPERATION
2. Select item
OPERATION. The
LCD shows the
command given to
NMS5and the
displacer position.
3. The following
commands are
available at this
position:
LEVEL
UP
STOP
BOTTOM LEVEL
UPPER INTERF. LEV*
MIDD.INTERF.LEV*
UPPER DENSITY*
MIDDLE DENSITY*
Level
DENSITY BOTTOM*
WATER DIP*
REPEATABILITY TEST
• Interface and density
Upper Interface
measurements are not
Level
available unless
specifically requested.
• Density profile
measurement is
Middle Interface
explained in section "7
Level
Commissioning".
Bottom
Level
Procedure
• Set access code to 50.
• If editing has previously
been enabled by a valid
access code, then the
request for the code will
not appear.
• The optional operation
commands are available
when such options are
set.
6 Operation
Remarks
