14 Appendix
156
14.3
Displacer
14.3.1
Displacer Installation
Installation Procedure
1.
Mount the displacer on the wire ring.
2.
Wind the securing wire on the ring.
3.
Wind the ground wire between washers twice.
4.
Secure the nut with a wrench.
This completes the displacer installation procedure.
Step 1
Wire Ring
Step 3
Washer

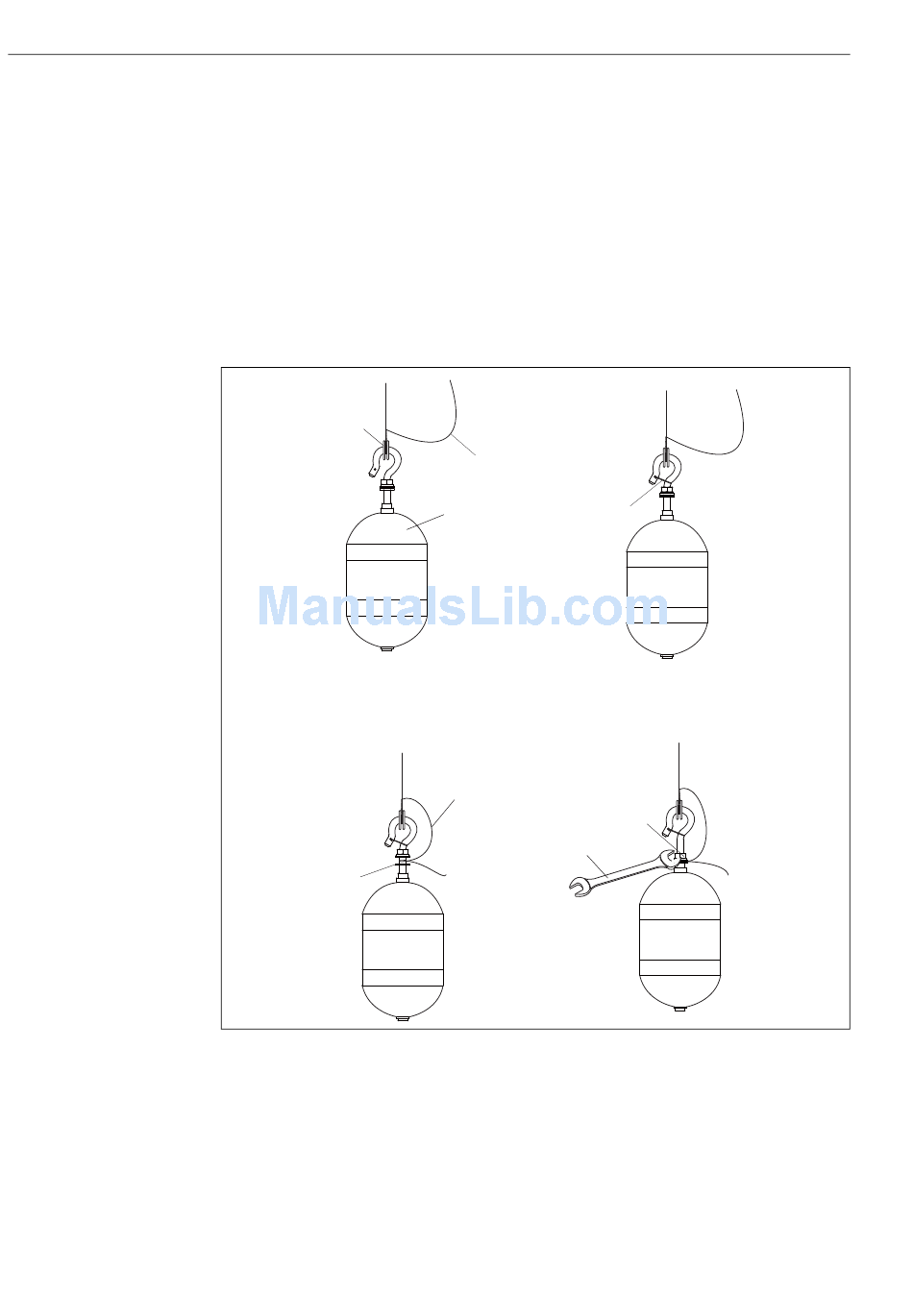

Figure. 111: Displacer
Step 2
Ground Wire
Securing Wire
Displacer
Step 4
Displacer Ground Wire
Wrench
Proservo NMS5
Nut
Endress+Hauser
