Endress+Hauser Proservo NMS5 Operating Instructions Manual page 159

Proservo NMS5
Endress+Hauser
Ø50mm SUS Cylindrical
Ø 50.8mm
Ø50mm PTFE Cylindrical
Ø 11mm
Ø 50.8mm

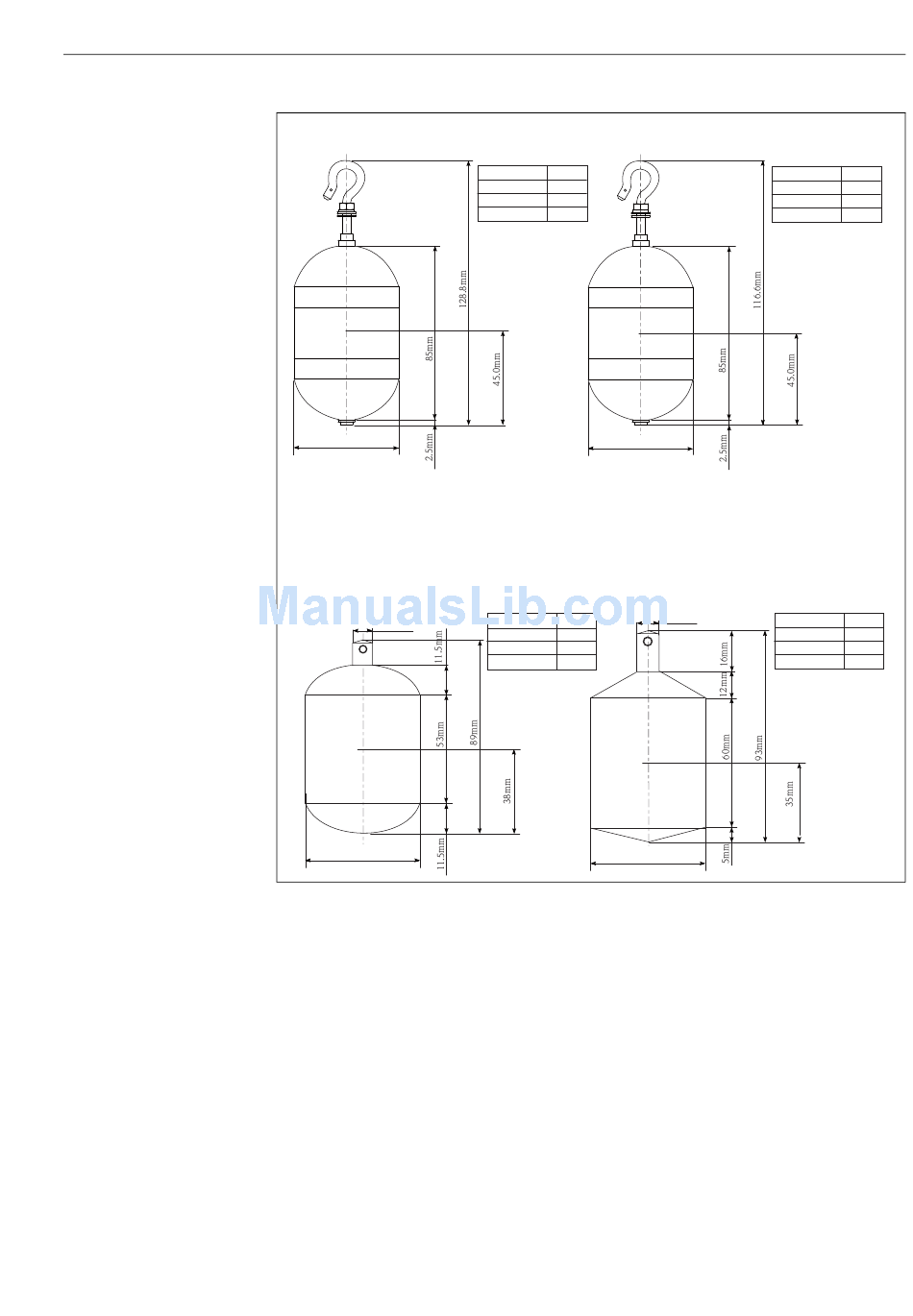

Figure. 114: Dimension of Displacer 2
Ø50mm AlloyC Cylindrical
Weight 253g
Volume 138cm 3
Balance volume
70.8cm 3
Draft point
45.0mm
Draft point
Ø 50.8mm
Ø50mm PTFE Conical
Weight 290g
3
Volume 130cm
Balance volume 3
64.7cm
Draft point
38.0mm
Draft point
Ø 50mm
14 Appendix
Weight
Volume
Balance volume
Draft point
Draft point
Ø 11mm
Weight
Volume
Balance volume
Draft point
Draft point
250g
138cm 3
3
70.8cm
45.0mm
290g
131cm 3
62.2cm 3
35.0mm
159
