3 Installation
Max. 39.7mm
Travel Distance of Displacer
34.6mm for 28m Wire (Φ0.15mm)
39.7mm for 36m Wire (Φ0.15mm)
NMS5 - 2/ NMS5 - 5 / NMS5 - 6
Max. 41.6mm
Travel Distance of Displacer
34.6mm for 28m Wire (Φ0.15mm)
39.7mm for 36m Wire (Φ0.15mm)
41.6mm for 47m Wire (Φ0.15mm)

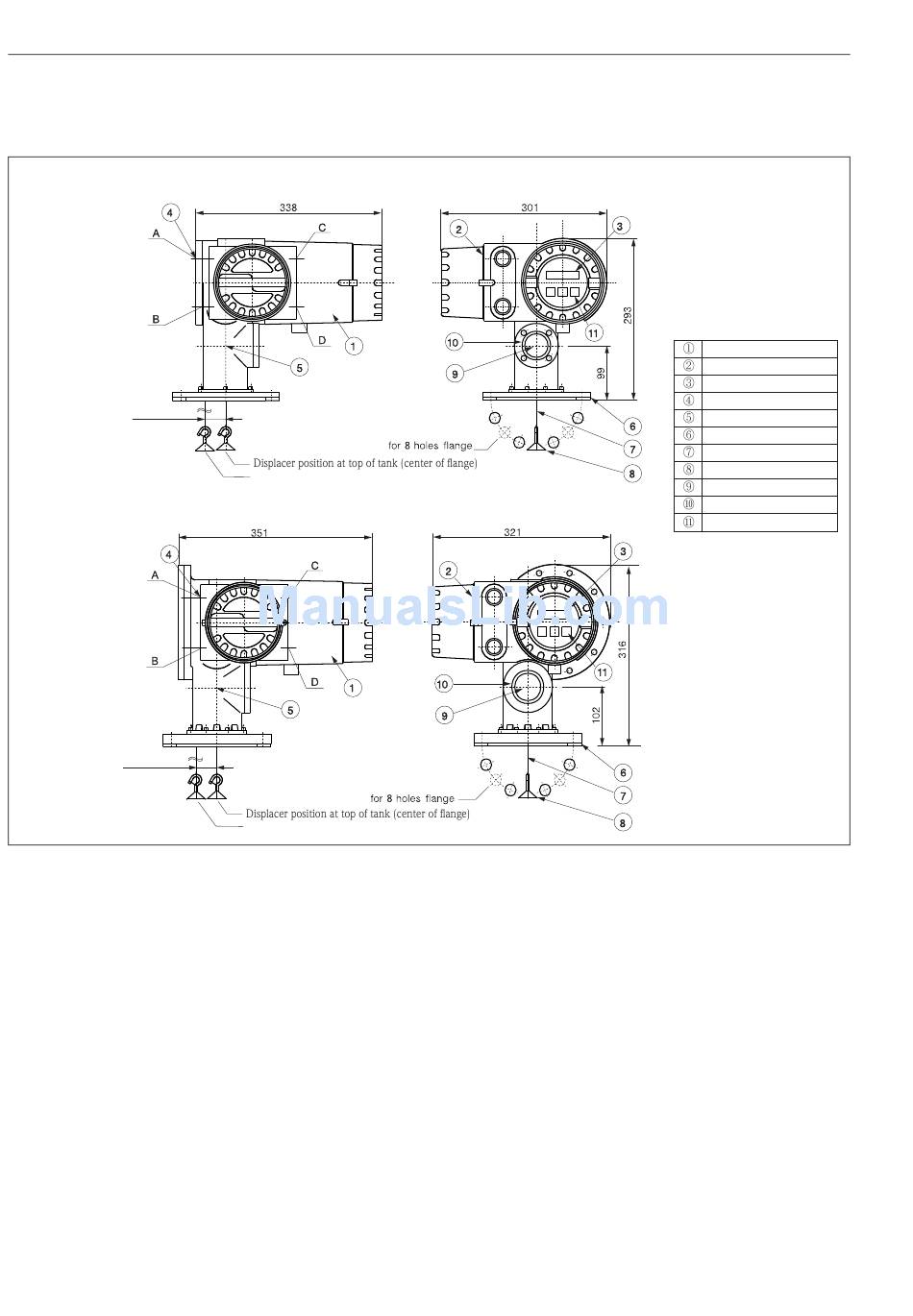

Figure 12: NMS5 Dimension
18
3.3
Design and Dimensions
NMS5 - 1/ NMS5 - 4
Displacer position at bottom of tank
Displacer position at bottom of tank
Proservo NMS5
Electrical compartment
Terminal box
Display (LCD)
Cable entery (A, B, C, D)
Wire drum housing
Flange
Measuring wire
Displacer
Calibration window
Window cover
Touch control
Endress+Hauser
