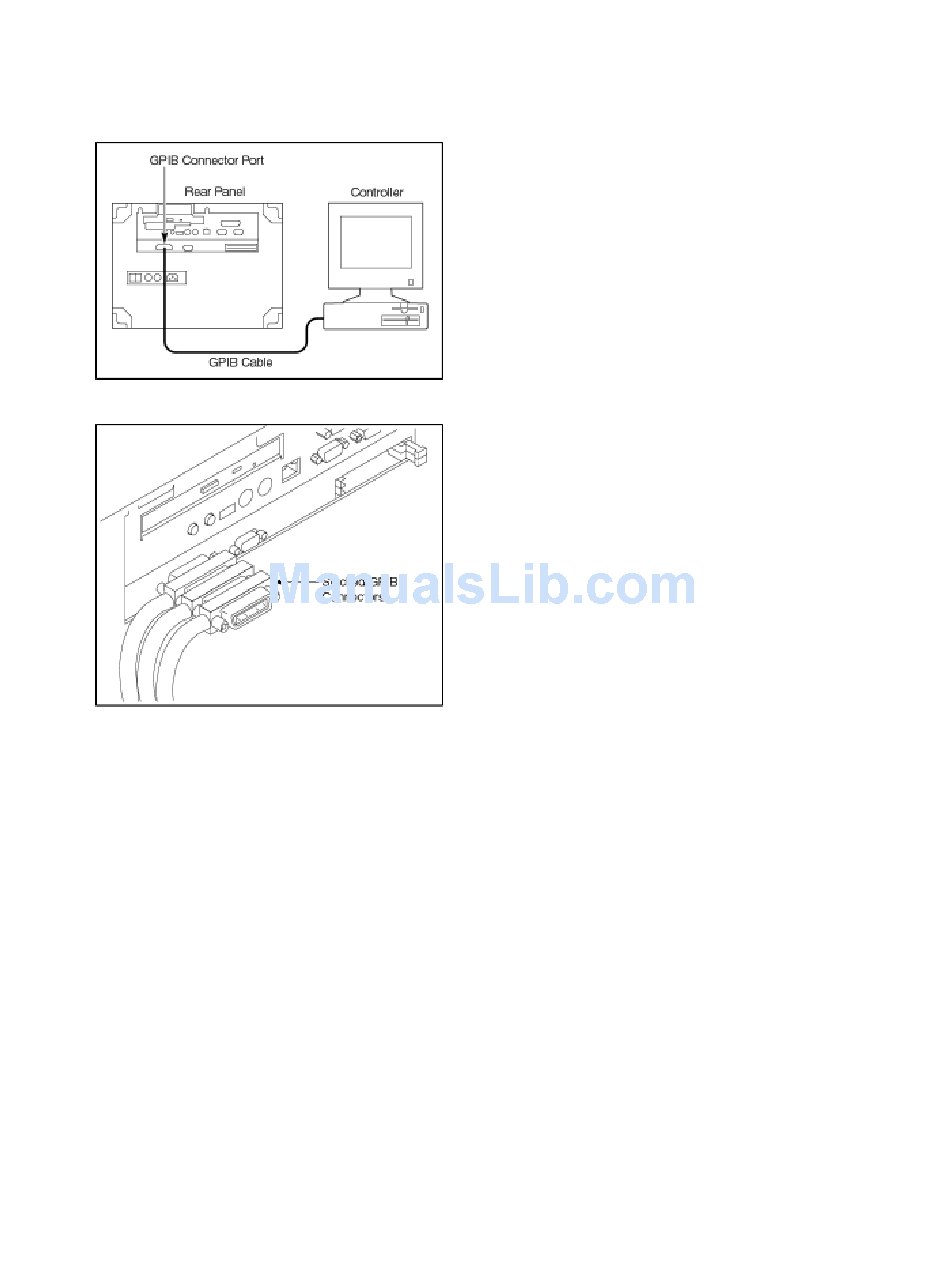

Connecting to the Instrument
Your instrument has a 24-pin GPIB connector on its rear panel. This connector has a D-type shell and
conforms to IEEE Std 488.1–1987. Attach an IEEE Std 488.1–1987 GPIB cable to this connector and to
your controller as shown in the following figure.
If necessary, the GPIB connectors can be stacked as shown in the figure below.
Setting the GPIB Address
To function correctly, your instrument must have a unique device address. The default settings for the
GPIB configuration are:
• GPIB Address
• GPIB Mode
To change either of the GPIB settings, do the following:
1. Select GPIB Configuration... from the Utilities menu.
2
1
GPIB Talk/Listen
