Tektronix TDS7000 Series Instruction Manual

067-0405-01 and above
TDS7000 Series
Probe Calibration and
Deskew Fixture
Instructions
071-0730-03
*P071073003*
071073003
Safety Summary
To avoid potential hazards, use this product only
as specified.
To avoid fire or personal injury
Do not operate in wet/damp conditions.
Keep product surfaces clean and dry.
Safety terms in this manual
These statements identify
WARNING.
conditions or practices that could result in
personal injury or loss of life.
Overview
This fixture converts the TDS7000 Series PROBE
COMPENSATION output into a set of test points
that give you a convenient way to:
H Compensate a passive probe (low-frequency).
H Optimize the oscilloscope gain and offset
accuracy at the probe tip.
H Compensate for timing differences between
two, three, or four voltage probes (deskew).
H Compensate for timing differences between
one, two, or three voltage probes and a current
probe (deskew).
Connecting to the Oscilloscope
The fixture has two BNC inputs, A and B. Use the
BNC cable (included) to connect the oscilloscope
PROBE COMPENSATION output to either the A
or B input. The input you use depends on the type
of probes you have and the operation you want to
perform.
Probe 2 Operation
Passive Passive Low frequency compensation
voltage probes,
Gain and offset calibration
including including
Compensate timing with
P6139A
respect to other voltage probes
Compensate timing with
respect to TCP202 current
probe
Compensate timing with
respect to CT-6 current probe
Active voltage Gain and offset calibration
probes probes,
Compensate timing with
including
respect to other voltage probes
P6243
P6245 P6245
Compensate timing with
P6246
respect to TCP202 current
P6247
probe
P6248
P6249 P6249
Compensate timing with
P7240
respect to CT-6 current probe
P7330
Current probe Compensate timing with
TCP202 respect to voltage probes
Current probe Compensate timing with
CT-6 respect to voltage probes
1
Gain and offset calibration for these probes is
generally not needed.
2
Not all probes are useable with all instruments.
The A side of the fixture has a small
NOTE.
jumper over two pins. Remove the jumper for
gain and offset calibration. Install the
jumper for all other functions.
Connecting Probes
WARNING.
while connecting probe tips to the square
pins on the fixture. The ends of the square
pins are sharp.

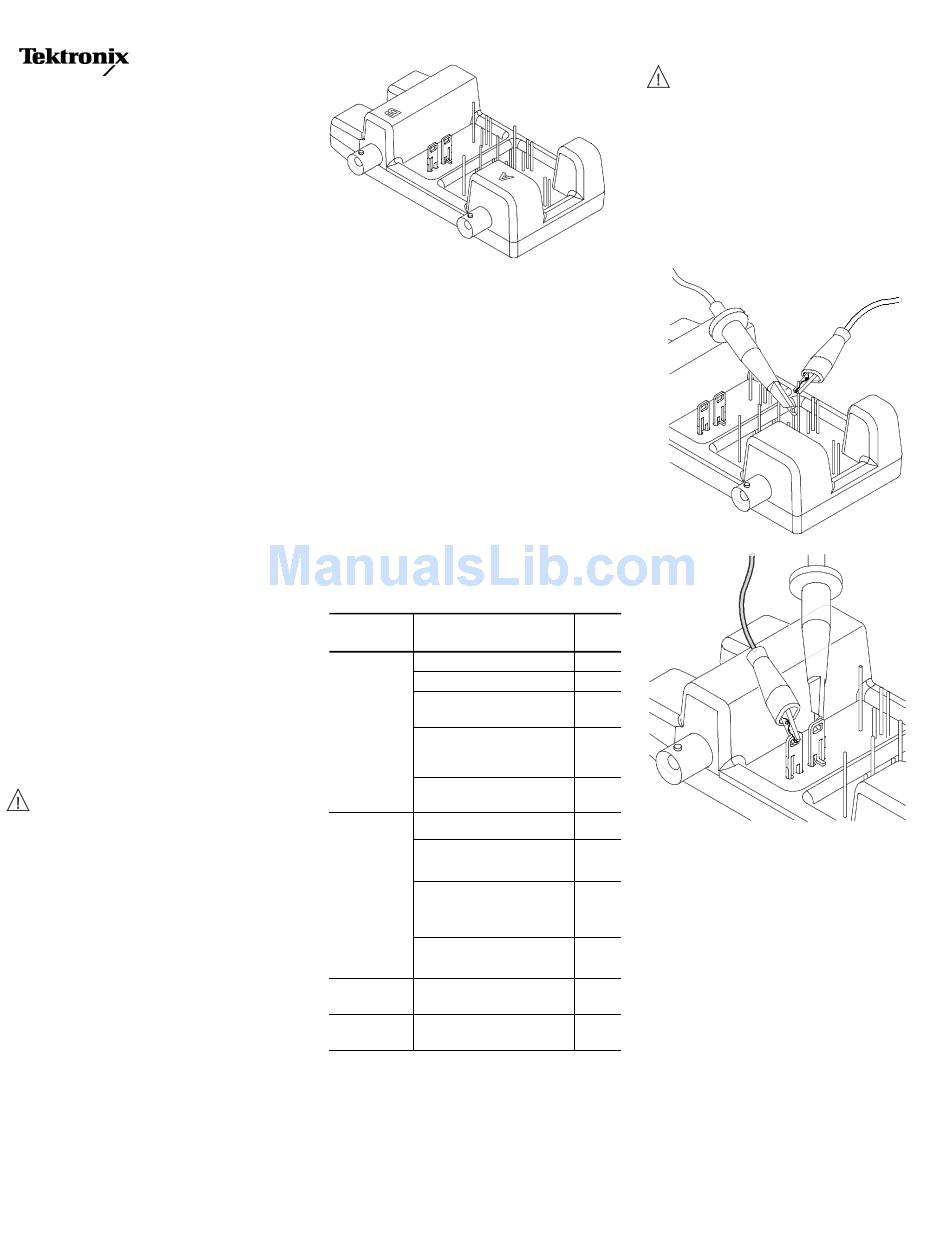

The following diagrams show how to attach each
type of probe tip to the fixture. Refer to the
ground symbols screened on the fixture to
establish the correct polarity.
P6139A
Connect the probe tip and the ground lead to the
two terminals as shown.
B side
connection
Use
input
A
1
A
A
B
A
A
A
B
A
B
A
To avoid personal injury, use care
A side
connection
