Quick Start

This section will guide you through the steps of connecting the Reflex to a standard passive
expression port on a device such as a synthesizer or a guitar effects unit. By default, the Reflex is set
up to connect using a three-conductor TRS cable, with the supply on the ring contact, the expression
signal on the tip contact, and ground on the sleeve contact. The Reflex can be configured to be
compatible with other plug configurations (such as TS for compatibility with Line 6 products), but for
the purposes of this quick start guide, it is assumed that a standard TRS plug with expression on the
tip contact is being used.
Power
The Reflex ships with an included 9V battery. Insert the battery into the battery compartment and
press the ON/OFF button to power on the device.
Expression Connections

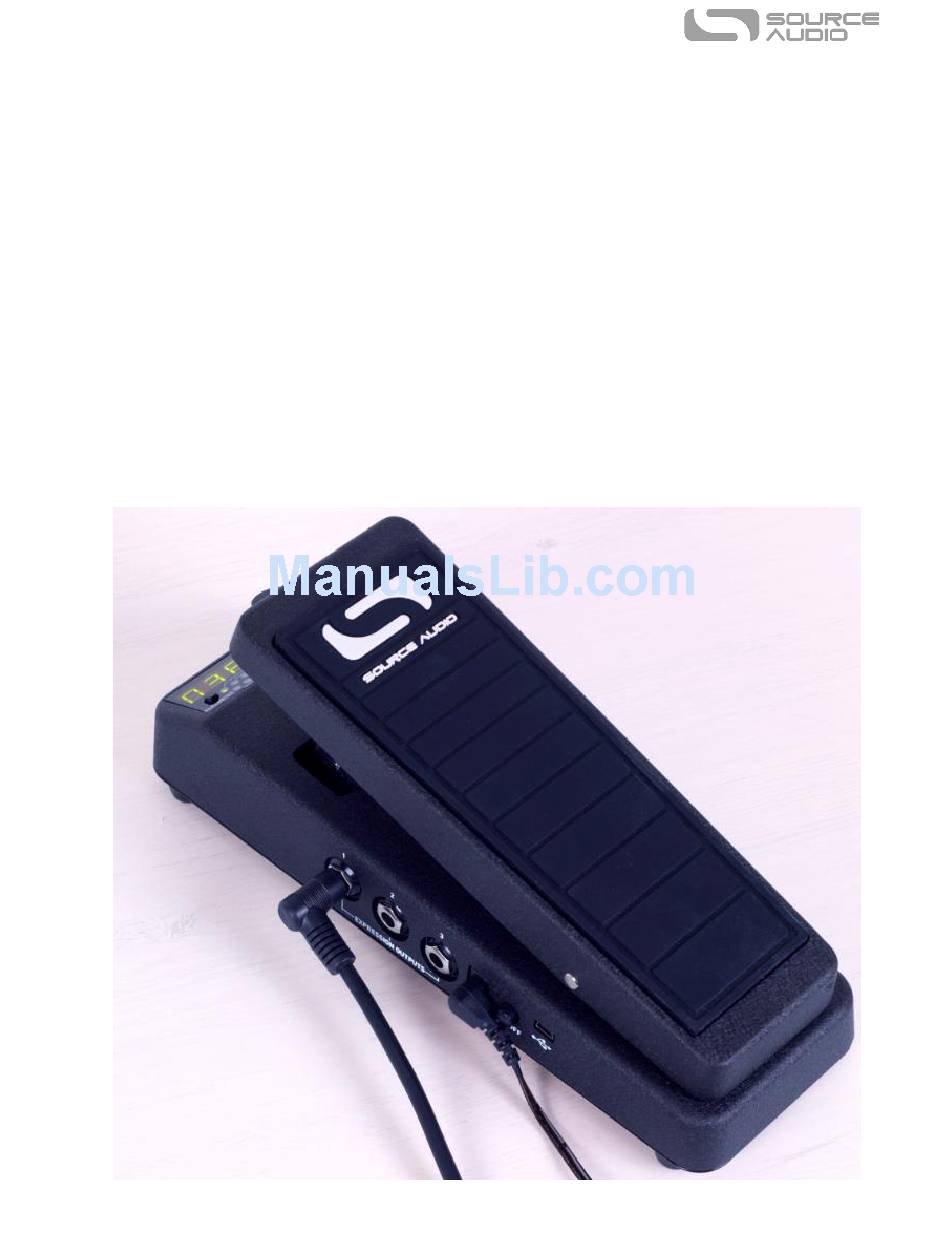

Using a ¼" TRS plug, connect the expression input on the device you wish to control to Expression
Output 1 on the Reflex. At this point, the Reflex should be set by default to work as a passive 10
kiloohm (kΩ) linear expression pedal.
