EQ2 Programmable EQ User Guide

Welcome

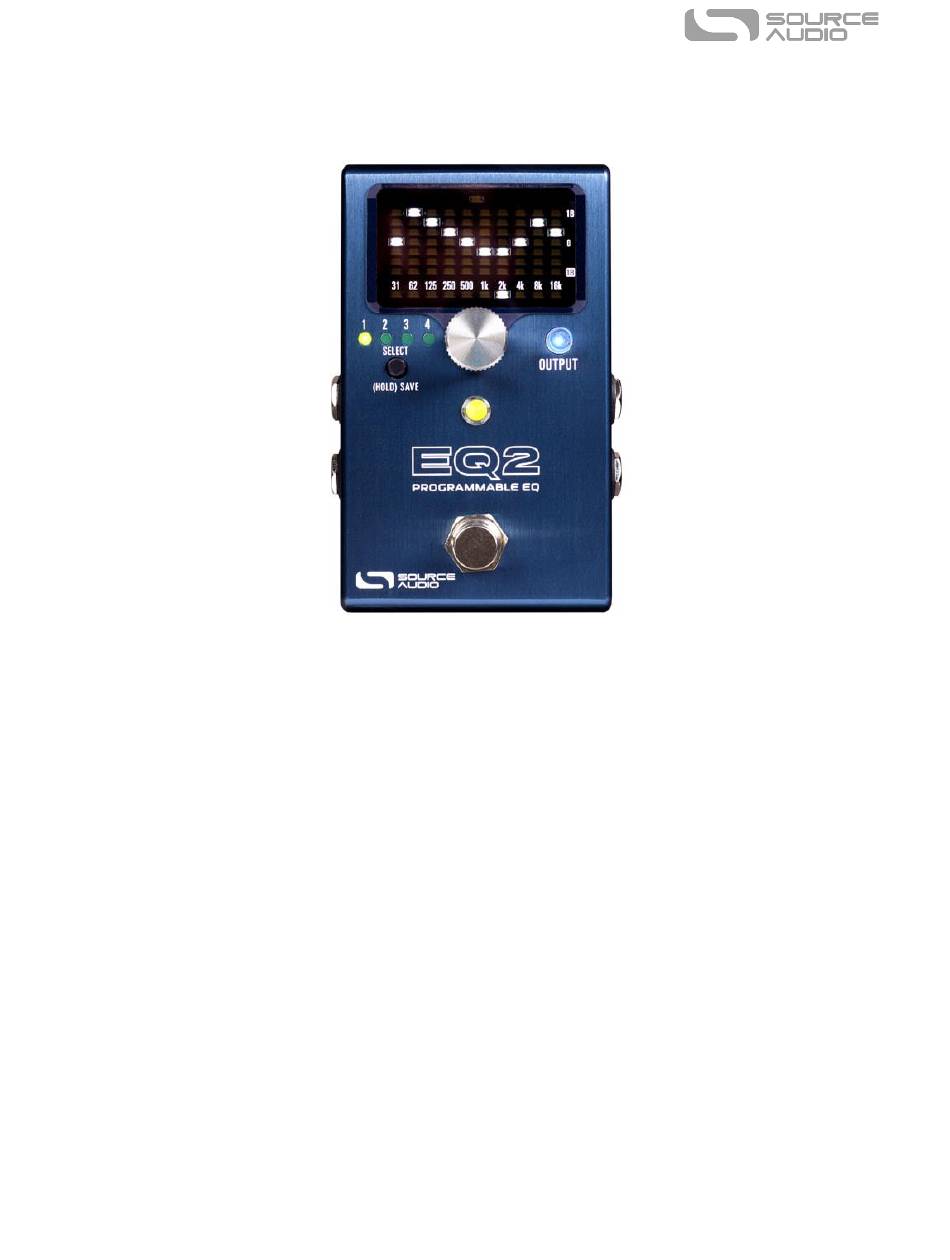

Thank you for purchasing the Source Audio EQ2 Programmable EQ! The EQ2 is the pedal for the
working musician; the tone-chaser. With 10 fully customizable bands of graphic or parametric
equalization, adjustable Q controls, full stereo capabilities, and complex routing options, this EQ
pedal will fit in virtually any setup. A modern update to its predecessor, the SA170 Programmable
EQ—which landed onto the boards of pros such as David Gilmour and John Mayer among many
others—the EQ2 boasts One Series hardware, full MIDI compatibility, and a real-time editing
interface for a DAW-like experience.
The EQ2 is our first pedal to support two-way mobile Neuro communication via the USB Mini port. It
also includes a Control Input port, and 5-pin MIDI DIN In and Out/Through ports for full MIDI
integration. The pedal features true stereo operation, including a Split Mode which allows you to
create a separate EQ curve for each output.
Coupled with the EQ2 is its own sound editor in the Neuro App and Desktop Editor, making custom
equalization easy and intuitive to create and share with other users. EQ2's sound editor features
deep editing controls such as complex routing, channel volumes, and an optional noise gate and
limiter. Visit the Quick Start guide for basic operation or move on to the following sections for more
in-depth information about the EQ2. Enjoy!
—The Source Audio Team
SA270
EQ2 User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ2 Programmable EQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Source Audio EQ2 Programmable EQ

Summary of Contents for Source Audio EQ2 Programmable EQ

  • Page 1: Welcome

    EQ2 Programmable EQ User Guide Welcome Thank you for purchasing the Source Audio EQ2 Programmable EQ! The EQ2 is the pedal for the working musician; the tone-chaser. With 10 fully customizable bands of graphic or parametric equalization, adjustable Q controls, full stereo capabilities, and complex routing options, this EQ pedal will fit in virtually any setup.

  • Page 2: Table Of Contents

    Contents Welcome ..............................1 Contents ..............................2 Feature Overview ............................. 3 Connecting the Pedal ..........................4 Connections .............................. 5 Basic Operation ............................8 The Options Menu ............................ 9 Navigating the Options Menu ........................9 Controls ..............................11 Common EQ Configurations ........................13 Stereo Operation &...

  • Page 3: Feature Overview

    Desktop Editor to see the parameter settings of every preset stored in your EQ2. Neuro Hub Ready – The Source Audio Neuro Hub connects up to five compatible Source Audio pedals and stores the settings of multi-pedal “Scenes.” Up to 128 Scenes can be saved and recalled using the Neuro Hub alongside a standard MIDI controller.

  • Page 4: Connecting The Pedal

    To power the unit, connect the included 9V DC negative-tipped power supply to the jack labeled DC 9V on the back panel. Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit. A power supply with insufficient current levels may also cause noise or other unpredictable behavior.

  • Page 5: Connections

    Connections Guitar/Audio Connections Using standard ¼” mono (TS) cables, connect your guitar, bass, or other instrument to the I NPUT jack and your amp (or the next audio device in the signal chain) to the O 1 jack. If you have a UTPUT second amp, connect it to O UTPUT...
  • Page 6 The ring contact on O 2 acts as a data UTPUT connection for the Neuro App, passing data from the EQ2 to the next Source Audio effect in your signal chain. You can daisy-chain the Neuro App data regardless of whether O 2 is UTPUT configured to output audio or not.
  • Page 7 The 3.5 mm C port connects to external control devices such as the Source Audio Tap ONTROL NPUT Tempo Switch, Source Audio Dual Expression Pedal, Neuro Hub, and Hot Hand Motion Controller. For more information, refer to the Expression Pedal Input Neuro Hub sections of the User’s Guide.

  • Page 8: Basic Operation

    Basic Operation The EQ2 defaults to each band in the flat position, Q value of 1.0, and set to the standard grapgic-EQ frequency values (the value written on the face of the pedal under each band) of 31, 62, 125, 250, 500, 1k, 2k, 4k, 8k, and 16k Hertz.

  • Page 9: The Options Menu

    Adjusting the Q Factor (Width) of a Band Let’s say you’re used to your DAW equalizer software, and you’re used to being able to make a particular EQ band more wide or narrow. This can be done on the EQ2! To do this, select a band, then press + hold the E .
  • Page 10 GAIN Sets the gain per channel. Each channel has its own gain control from -18dB to +18dB. Useful for matching the Channel 1 and Channel 2 levels when Split mode is used, similar to a line selector pedal. Note that these channel gain values are separate from the master output volume control. SPLIT By default, all of the controls for Channel 2 will match the Channel 1 settings.

  • Page 11: Controls

    Controls Rotary Encoder Knob This is the key to the whole operation. Push + rotate the Encoder Knob to select a frequency band. Turn the Encoder Knob clockwise or counterclockwise to boost or cut the selected band. Double tap the Encoder Knob to “start over” and set the bands back to flat. Push + hold the Encoder Knob to enter the Options screen.
  • Page 12 Control Input Button This small button located at the top of the pedal is used to enable or disable external control. It also is used in many of the Hardware Shortcuts. See the External Control section and the Hardware Shortcuts section for more details.

  • Page 13: Common Eq Configurations

    Common EQ Configurations With 10 customizable bands and +/- 18 dB of boost or cut on tap for each band, there are thousands of configurations possible when equalizing an instrument. The sheer amount of options can be paralyzing for anyone new to EQ or unsure of where to start. Below are a few common EQ curves that can serve as jumping-off points or simply help you dial in some interesting tones.
  • Page 14 Drastic Mid Scoop You might have heard the term “mid-scooped” to describe modern metal guitar tones. Since the guitar is already a midrange instrument, cutting those frequencies while boosting the high and low frequencies can give it a big, thick tone. Take in small doses; not enough mid frequencies can make a guitar get “lost”...

  • Page 15: Stereo Operation & Signal Routing

    Single Coil Sanctuary Barely cutting each frequency while giving a spike to about 5-7kHz can make a humbucker-equipped guitar sound similar to a single coil Strat or Tele. This setting works notably well for darker or warmer-toned guitars, like a Les Paul, and can really liven up a clean tone. Stereo Operation &...
  • Page 16 Mono In, Mono Out This is the most common use case. Plugging the incoming signal into INPUT 1 with OUTPUT 1 connected to an amp (or the next device in the signal chain) produces a standard mono signal. Dual processing effects are also mixed down a single output. Mono In, Stereo Out This is a very common use case that allows you to create some nice stereo imaging from a single mono instrument input or use your EQ2 as a splitter to send your signal to two separate outputs.
  • Page 17 Stereo In, Stereo Out This mode should be your default selection for Stereo In, Stereo Out applications. Stereo In, Stereo Out allows you to continue your stereo chain of effects. Stereo In, Mono Out This mode will accept stereo input on jacks INPUT 1 and 2. Inputs 1 and 2 are sent to Channel 1 and 2 equalizers, respectively.

  • Page 18: Preset Storage And Recall

    External Loop 2 -> Loop 1 This routing mode supports a use case that involves placing two different EQs at two different points in your signal path. In this routing mode, a loop for external effects is placed after Channel 2, before Channel 1.

  • Page 19: Additional Features

    preset normally. When recalled, the pedal will load the saved user settings, but the effects will be bypassed until you engage the pedal. Copying a Preset to a New Location Using the Select/(Hold) Save Button 1. Select the preset you would like to copy by pressing the SELECT Button until the corresponding LED is lit.
  • Page 20 EQ curve will allow you to have a different EQ for either output, great for any stereo setup. You can use an external switch like the Source Audio Tap Switch to swap the channels on any preset you put into Split Mode. In a mono situation, this means you can toggle between 2 separate EQs per preset.

  • Page 21: External Control

    External Switches (1/8” TRRS Connection) The Source Audio Tap Tempo footswitch can also be connected to the CONTROL IN jack using a 3.5mm (1/8 inch) cable. If you wish to use this function, you must enable the function globally with...

  • Page 22: Neuro Desktop And Mobile Editors

    Audio Online Store. Neuro Desktop and Mobile Editors Like all pedals in the Source Audio One Series line, the EQ2 Programmable EQ features access to more precise editing parameters, preset sharing, and added functionality via the Neuro Desktop Editor and Mobile App. The Neuro Desktop Editor is available as a free download for Mac or...
  • Page 23 If an update is available, the software will provide instructions on how to proceed. • Hardware Options: The gear icon opens the Hardware Options window. Each Source Audio pedal has its own set of global hardware settings. The attached pedal will retain all hardware option edits until either the option is changed, or a Factory Reset is performed.
  • Page 24 Hardware Options Clicking the gear icon in the EQ2 Programmable EQ’s Connections window opens the Hardware Options menu (see the graphic below). Use the Hardware Options window to choose your pedal’s global hardware settings.
  • Page 25 Calibration dropdown controls): In some cases, it might be necessary to adjust the calibration range of an expression pedal to get the desired pedal response when using expression control either through the Neuro Hub, a direct connection to the Source Audio Dual Expression Pedal, or a 3 -party pedal.
  • Page 26 Sound Editor Upon clicking the wrench icon in the Connections section, the EQ2 Programmable EQ’s Sound Editor interface appears in a tab in the center panel. This is where all of the sound editing work takes place. The Sound Editor is broken into several sub-sections, each containing a unique variation of virtual knobs and dropdown menus.
  • Page 27 • Split Mode: Enabling Split Mode will unlock access to Channel 2, which is mapped to Output 2. When Split Mode is activated, Channel 2 setting will be unlinked from Channel 1 and can be set to completely different values. •...
  • Page 28 External Control Control up to four parameters with a Source Audio Dual Expression Pedal or Tap Tempo Switch. Use the dropdown menus in the External Control block to select the expression device (Control Source) and controlled parameter (Control Option).
  • Page 29 Hardware Presets: This is where all of your pedal presets are listed. Use the Save As button to select where you would like to store an edited preset - you can choose from any of the 128 preset positions or the 12 Effect Selector knob positions on the EQ2 Programmable EQ. SA270...

  • Page 30: The Neuro Mobile App - With New Direct Midi-Usb Support

    The Neuro Mobile App — with New Direct MIDI-USB Support Like all Source Audio One Series pedals, the EQ2 is fully supported in the Neuro Mobile app. The Neuro Mobile app is available for iOS and Android devices and allows access to all of the preset parameters and hardware options described in the Neuro Desktop editor section above.

  • Page 31: Neuro Hub

    Neuro Hub The Source Audio Neuro Hub (sold separately) unites Source Audio pedals from the Soundblox 2 and One Series families to create a single, stage-ready effects system. It features shared MIDI, passive expression pedal input, Hot Hand connectivity, and USB, and can connect up to five Source Audio pedals.

  • Page 32: Midi

    The EQ2 responds to MIDI Continuous Controller (CC) messages. The pedal comes already mapped to a default set CC numbers. For a complete list of default MIDI mappings and ranges, download the EQ2 Programmable EQ MIDI Implementation Guide located at the bottom of the EQ2 Programmable EQ page on the Source Audio website.

  • Page 33: Specifications

    USB cable. The computer will automatically recognize the EQ2, which will be identified as “One Series EQ2 Programmable EQ” in the operating system. USB connectivity brings many benefits, such as the ability to connect with the Neuro Desktop Editor for downloading EQ2 firmware updates, accessing an advanced set of effect editing parameters, and downloading alternate engines.

  • Page 34: Frequently Asked Questions

    choose the Factory Reset option in the Hardware Options menus. It is also possible to perform a factory reset without the Neuro App by following these steps: • Press and hold the F OOTSWITCH • Connect the power supply. • The C will blink rapidly until the reset is complete.

  • Page 35: Rubber Feet

    USB cable. The Neuro Desktop Editor is available from Source Audio’s website: http://www.sourceaudio.net/support/downloads. While the pedal is connected, select the Arrow Icon located in the EQ2 Programmable EQ square in the Connections field.

  • Page 36: Waste Disposal Notes

    Source Audio. Warranty Information Source Audio may, at its option, require proof of the original purchase date in the form of a dated copy of the original authorized dealer’s invoice or sales receipt. Service and repairs of Source Audio products are to be performed only at the Source Audio factory or a Source Audio authorized service center.
  • Page 37 Do not open the effects pedal under any circumstance. This will void the warranty. The foregoing limited warranty is the only warranty given by Source Audio and is in lieu of all other warranties. All implied warranties, including warranties of merchantability and fitness for any particular purpose, exceeding the specific provisions of this limited warranty, are hereby disclaimed and excluded from this limited warranty.

  • Page 38: Version History

    Version History May 9, 2020: Initial release ©Source Audio LLC | 120 Cummings Park, Woburn, MA 01801 | www.sourceaudio.net SA270 EQ2 User Guide...
