Quick Start

Power
To power the unit, connect the included 9V DC power supply to the jack labeled DC 9V on the back
panel. When running a 3
source with a minimum of 165mA and a center-negative plug.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
Please be very cautious when using 3

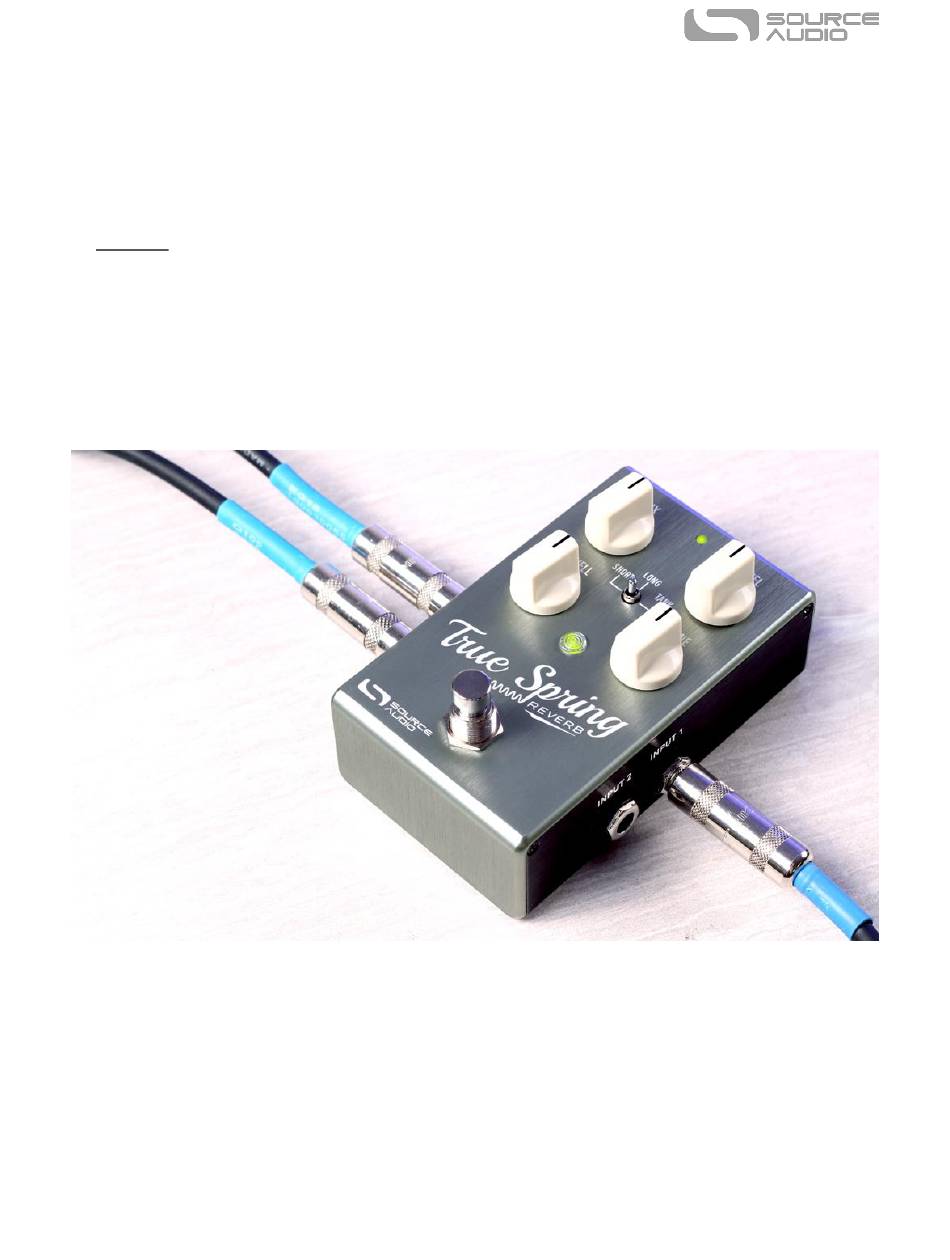

Guitar/Audio Connections
Using standard ¼" mono cables, connect your guitar, bass, or other instrument to the INPUT 1 jack
and your amp (or the next audio device in the signal chain) to the OUTPUT 1 jack. When running a
stereo rig, also use Input and Output 2.
Once the power and audio connections have been made, the True Spring is ready to play.
Brief Knob, Footswitch, and Button Descriptions
Please note that the DWELL and TONE knobs, and the center toggle switch have alternate functions
while holding down the CONTROL INPUT button on top of the pedal. These alternate functions
control the key parameters of the tremolo effects. The reverb settings remain unchanged while
making adjustments to the tremolo.
Mix Knob: Controls the ratio between the dry and reverb signals.
SA247
rd
party power supply, the True Spring requires an isolated 9V DC power
rd
-party power supplies.
True Spring Reverb User Guide 3
